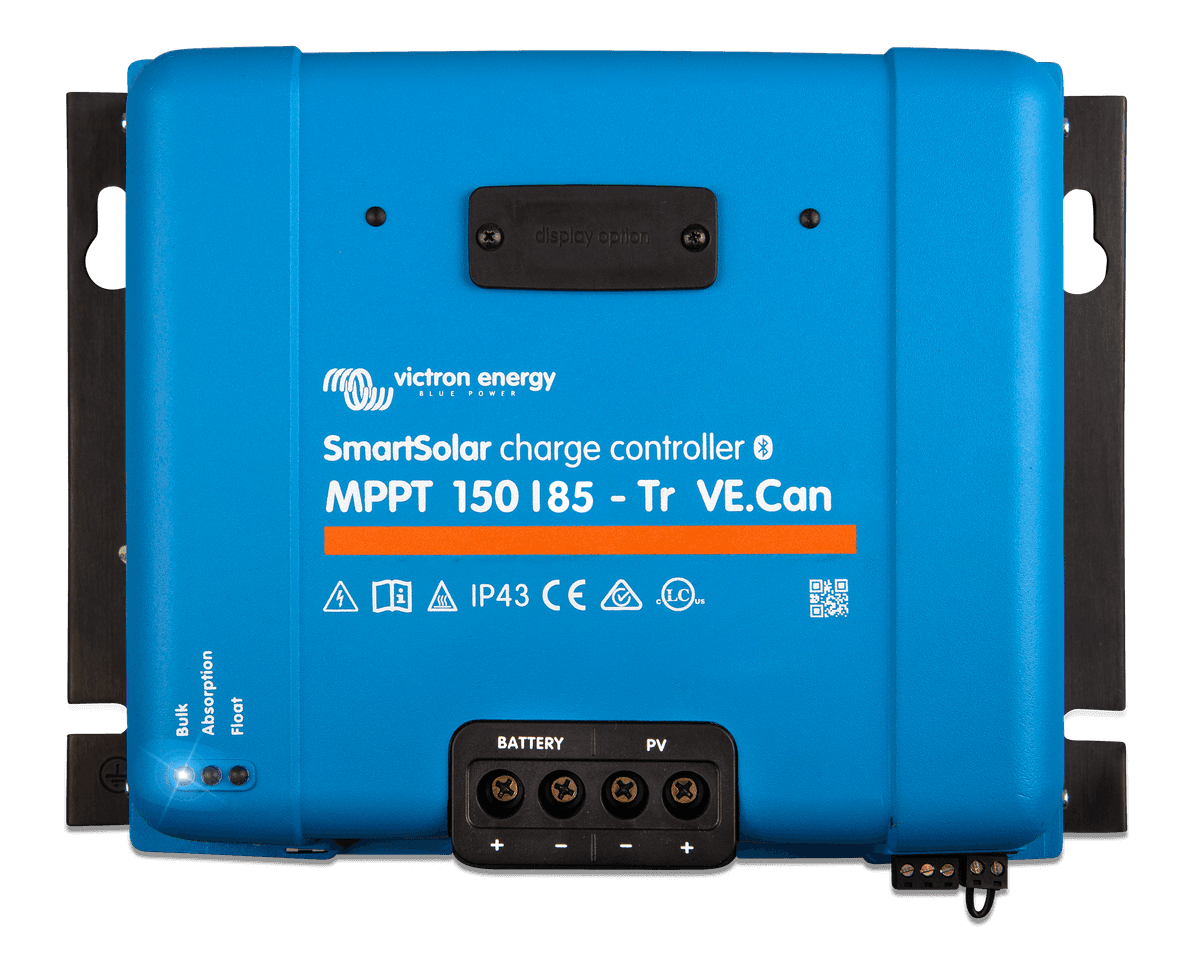

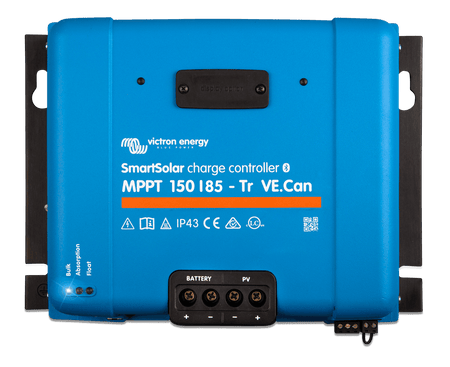

Victron SmartSolar MPPT 150/85-Tr VE.Can Bluetooth Solar Charge Controller
Victron SmartSolar MPPT 150/85-Tr VE.Can Bluetooth Solar Charge Controller
85A of solar charging from a 150V array - up to 1200W of panels on 12V or 4.9kW on 48V. With VE.Can built in, it's made for large off-grid systems and multi-controller installations that need to work as one.
VE.Can: the multi-controller solution
Up to 25 VE.Can controllers can be daisy-chained and synchronised, sharing one charge cycle so a big array split across several controllers charges as a single system. VE.Can also links straight to a Cerbo GX for full system control and remote monitoring on the VRM portal - no extra interface cables needed.
Big output, no fan
The 150V input lets you run long panel strings with lighter cable, while ultra-fast MPPT tracking and partial-shade detection keep yield high. A programmable relay and remote on/off port integrate it with generators, alarms and lithium BMS systems, and it runs at up to 98% efficiency with full output up to 40°C.
- Part number: SCC115085411
- Battery voltage: 12/24/48V auto-select (36V via software)
- Rated charge current: 85A
- Nominal PV power: 1200W (12V) / 2400W (24V) / 3600W (36V) / 4900W (48V)
- Maximum PV open-circuit voltage: 150V absolute max (145V start-up and operating)
- Max. PV short-circuit current: 70A
- Maximum efficiency: 98%
- Parallel operation: synchronised, up to 25 units over VE.Can (10 over Bluetooth)
- Programmable relay: DPST, 240VAC/4A or 4A up to 35VDC
- Remote on/off: yes (2-pole connector)
- Communication: VE.Can, VE.Direct and Bluetooth Smart built-in
- Terminals: 35mm² / AWG2 (PV and battery)
- Enclosure: IP43 (electronics), IP22 (connection area)
- Dimensions: 216 x 295 x 103mm
- Weight: 4.5kg
- Operating temperature: -30°C to +60°C (full output up to 40°C)
- Warranty: 5 years
Best suited to
Large off-grid homes and remote sites, marine and commercial systems, and 24V or 48V installs with up to around 4.9kW of solar or multiple charge controllers.
Pair with: a Victron Cerbo GX and GX Touch display for full system monitoring and control.
Stocked and supported by Townsville Wholesale Batteries, your local Victron Energy dealer.
