Nothing else to buy. No crimping. No wiring to make up.

Every cable in these kits is cut to length, terminated and fused before it leaves the shop. You are not finishing the job in the driveway with a pair of pliers and a trip back for a fuse holder.

Dual Battery Systems

Eleven complete systems - eight we build and stock ourselves, and three Enerdrive canopy systems we bundle with the battery and the alternator loom. Every one arrives with the charger, the battery, the mounting and every cable already made up. Buy it supplied, or have us fit it here in Townsville.

Show prices
Delivered Australia-wide. Switch to see the fitted price.
Slimline canopySAVE

Kit 1

120Ah Slimline AGM Dual Battery System

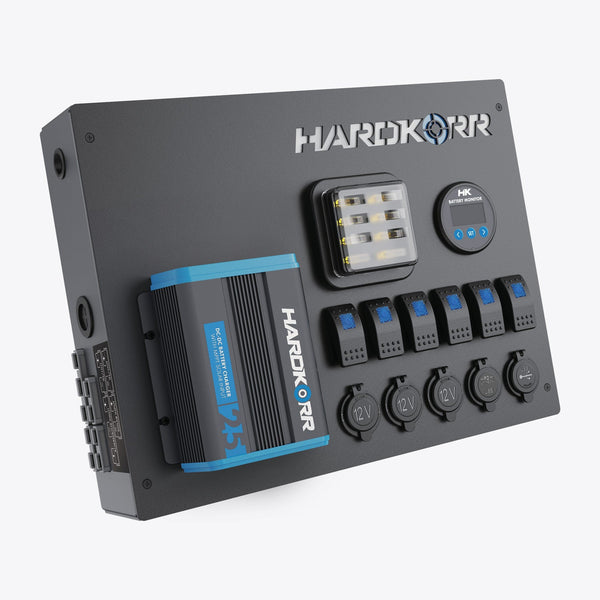

Hardkorr 25A Control Hub, KickAss 120Ah AGM, tray, harness and fused cable set

The one most utes and canopies end up with. A 25A hub charges off the alternator and off solar, the 120Ah slimline sits flat against the wall, and every cable is already made up.

Included in this kit — 5 parts
  • Hardkorr Power Control Hub w/25A DC-DC
  • Hardkorr 25A DC-DC Wiring Kit
  • KickAss 12V 120Ah AGM Slimline
  • KickAss 120Ah Slimline Tray
  • Battery to hub cable set with Midi fuse
Choose the battery
Bank
120Ah AGM
DC-DC charge
25A
Solar
MPPT built in

About a day and a half of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Slimline canopy

Kit 2

170Ah Slimline AGM Dual Battery System

Hardkorr 40A Control Hub, KickAss 170Ah AGM, tray, harness and fused cable set

The same build with more of everything. A 40A hub refills a bigger bank in a day's driving, which is what matters when you are moving between towns rather than sitting in one spot.

Included in this kit — 5 parts
  • Hardkorr Power Control Hub w/40A DC-DC
  • Hardkorr 40A DC-DC Wiring Kit
  • KickAss 12V 170Ah AGM Slimline
  • KickAss 170Ah Slimline Tray
  • Battery to canopy cable set with Midi fuse
Choose the battery
Bank
170Ah AGM
DC-DC charge
40A
Solar
MPPT built in

About 2 and a half days of fridge and lights

$

Enquire about this kitGet it fitted
Battery boxSAVE

Kit 3

120Ah AGM Battery Box System (25A)

Hardkorr HD Battery Box Pro with 25A DC-DC, KickAss 120Ah AGM, tray and harness

Everything the canopy kit does, in a box you can lift out. Good for a ute tub, a camper, or anyone who wants the power to move between vehicles.

Included in this kit — 4 parts
  • Hardkorr HD Battery Box Pro w/25A DC-DC
  • Hardkorr 25A DC-DC Wiring Kit
  • Hardkorr HD Pro Battery Box Tray
  • KickAss 12V 120Ah AGM
Choose the battery
Bank
120Ah AGM
DC-DC charge
25A
Solar
MPPT built in

About a day and a half of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Battery boxSAVE

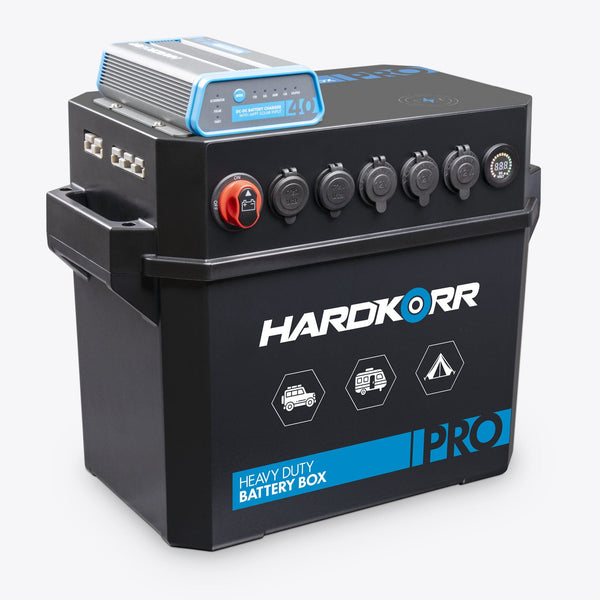

Kit 4

120Ah AGM Battery Box System (40A)

Hardkorr HD Battery Box Pro with 40A DC-DC, KickAss 120Ah AGM, tray and harness

The portable box with the bigger charger. Worth the step up if you are running lithium later, or driving short legs between camps.

Included in this kit — 4 parts
  • Hardkorr HD Battery Box Pro w/40A DC-DC
  • Hardkorr 40A DC-DC Wiring Kit
  • Hardkorr HD Pro Battery Box Tray
  • KickAss 12V 120Ah AGM
Choose the battery
Bank
120Ah AGM
DC-DC charge
40A
Solar
MPPT built in

About a day and a half of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Battery box

Kit 5

KickAss 205Ah Lithium Battery Box Premium

205Ah lithium power station with integrated 40A DC-DC, wiring kit and tray

A lithium power station rather than a battery in a box. 185Ah usable, charger and monitoring built in, and it plugs together without a single crimp.

Included in this kit — 3 parts
  • KickAss Smart 205Ah Lithium Battery Box Power Station w/40A DC-DC
  • 6.5m plug-and-play wiring kit
  • KickAss Battery Box Tray
Bank
205Ah lithium
DC-DC charge
40A
Solar
MPPT built in

About 5 days of fridge and lights

$

Enquire about this kitGet it fitted
Portable lithiumSAVE

Kit 6

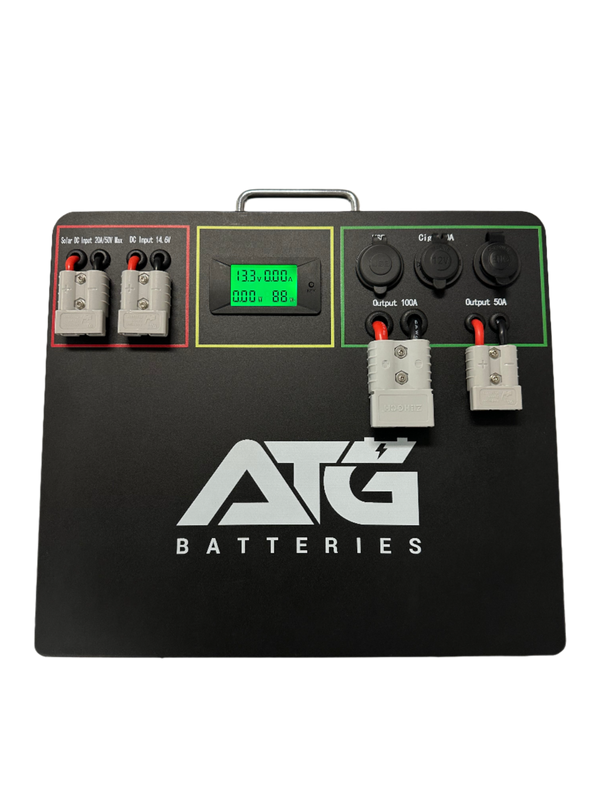

Bonza 100Ah Lithium Slimline System

ATG Bonza 100Ah lithium, holder, under-bonnet 25A DC-DC and wiring

The under-bonnet build. The charger lives in the engine bay and the Bonza goes wherever you need the power, which suits a wagon or a dual cab with no canopy.

Included in this kit — 4 parts
  • ATG 100Ah Bonza Slimline V3
  • Bonza Box Holder
  • Hardkorr 25A Under-Bonnet DC-DC Charger with MPPT Solar Regulator
  • Hardkorr 6M Dual Battery Wiring Kit with Midi Fuse
Bank
100Ah lithium
DC-DC charge
25A
Solar
MPPT built in

About 3 days of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Canopy lithiumSAVE

Kit 7

230Ah Ultra-X Wireless Canopy System

KickAss 230Ah Ultra-X Slimline lithium, wireless canopy system with 40A DC-DC

A serious canopy build. 207Ah usable, wireless monitoring, and enough charge rate to put a day's driving straight back into the bank.

Included in this kit — 3 parts
  • KickAss Smart 12V 230Ah Ultra-X Slimline Lithium
  • KickAss 12V Wireless Canopy Power System w/40A DC-DC
  • HD plug-and-play DC-DC wiring kit
Bank
230Ah lithium
DC-DC charge
40A
Solar
MPPT built in

About 6 days of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Canopy lithiumSAVE

Kit 8

PowerBoss 230Ah Canopy Base Kit

KickAss PowerBoss 2000W all-in-one, 230Ah Ultra-X Compact lithium, Bluetooth and install kit

Mains power in the canopy. The PowerBoss puts a 2000W inverter, a 40A DC-DC, solar and a mains charger in one box, so the canopy runs a kettle as happily as a fridge.

Included in this kit — 5 parts
  • KickAss PowerBoss 2000W All-in-One Power System
  • KickAss Smart 12V 230Ah Ultra-X Compact Lithium
  • PowerBoss Connections Kit
  • PowerBoss to Alternator Wiring Kit (6.5m)
  • PowerBoss Bluetooth Remote Module
Bank
230Ah lithium
DC-DC charge
40A
Solar
MPPT built in

About 6 days of fridge and lights

Usually

$

Enquire about this kitGet it fitted
Enerdrive canopySAVE

Kit 9

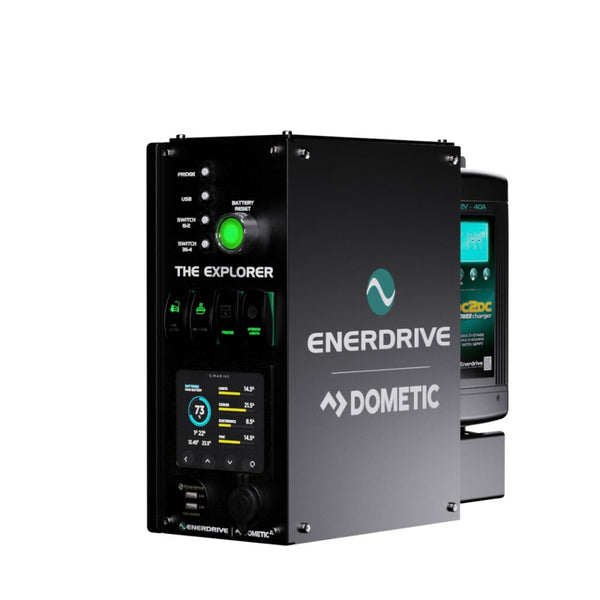

Enerdrive Explorer Canopy System

40A DC-DC, Simarine monitor, 100Ah lithium, alternator loom included

The entry canopy system, and the one that suits most single-fridge tourers. Charges off the alternator and the solar panels through the one 40A unit, runs the fridge, lights and sockets off pre-wired breakers, and tells you exactly where the bank is sitting on a Simarine touchscreen. No 240V side - if you want to charge off mains or run an appliance, step up to the Traveller.

Included in this kit — 3 parts
  • Enerdrive Explorer Power System (K-EXPLORER-02-R)
  • ATG 12V 100Ah Slim LiFePO4 w/ Bluetooth
  • Hardkorr 40A DC-DC Charger Wiring Kit with 60A Midi fuse
Bank
100Ah lithium
DC-DC charge
40A+
Solar
Built into the DC-DC

About two and a half days of fridge and lights

Full specification
DC-DC charger
ePOWER DC2DC40+, vehicle & solar
AC charger
Not included
Inverter
Not included
Battery monitor
Simarine LCD touchscreen, WiFi
Tank monitoring
2 resistance inputs, included
Main cable
35mm² pre-wired, main DC fuse
Circuit breakers
4 pre-wired, main equipment
Switches
4 Contura, laser-etched
Fridge outlet
50A Anderson, pre-wired
12V outlets
1 cig socket, twin 2.4A USB-A
Battery reset
Flat-battery restart from DC-DC
Smart alternator
Ignition input, needs connection
Enclosure
455 x 155 x 330mm, 7.0kg
Warranty
5 years
Orientation
Left (passenger side), right (driver side) or top/ceiling

Usually

$

Enquire about this kitGet it fitted
Enerdrive canopySAVE

Kit 10

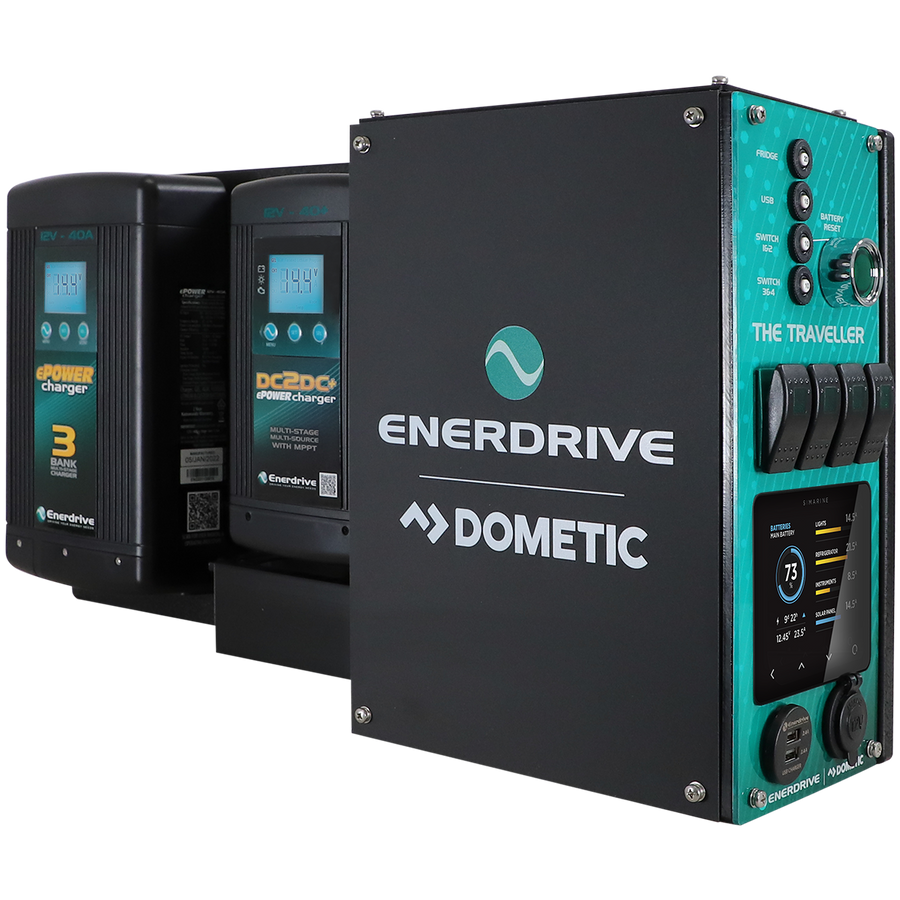

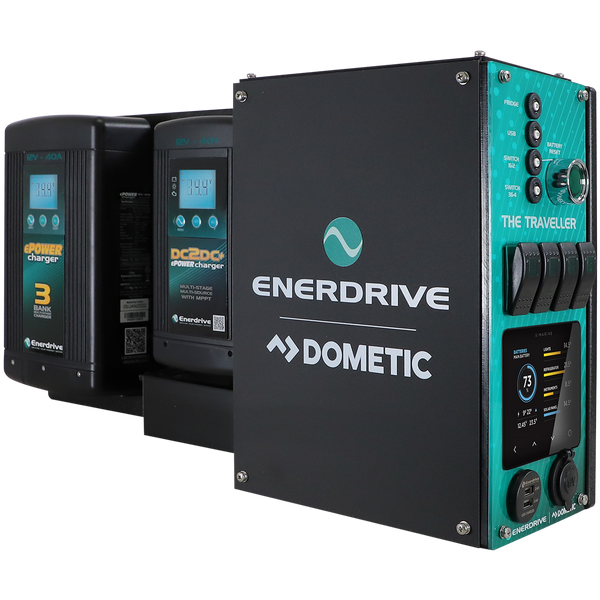

Enerdrive Traveller Canopy System

40A DC-DC + 40A AC charger, 210Ah lithium, alternator loom included

The Explorer with a mains charger bolted in and more than double the bank. Plug into power at a caravan park or at home and the 40A AC charger fills 210Ah overnight, so you leave every trip on a full battery instead of waiting on the alternator. Still no inverter - this is DC power done properly, not 240V appliances.

Included in this kit — 3 parts
  • Enerdrive Traveller Power System (K-TRAVELLER-02)
  • ATG 12V 210Ah Slim LiFePO4 w/ Bluetooth
  • Hardkorr 40A DC-DC Charger Wiring Kit with 60A Midi fuse
Bank
210Ah lithium
DC-DC charge
40A+
Solar
Built into the DC-DC

About five and a half days of fridge and lights

Full specification
DC-DC charger
ePOWER DC2DC40+, vehicle & solar
AC charger
ePOWER 40A, 12V
Inverter
Not included
Battery monitor
Simarine LCD touchscreen, WiFi
Tank monitoring
2 resistance inputs, included
Main cable
35mm² pre-wired, main DC fuse
Circuit breakers
4 pre-wired, main equipment
Switches
4 Contura, laser-etched
Fridge outlet
50A Anderson, pre-wired
12V outlets
1 cig socket, twin 2.4A USB-A
Battery reset
Flat-battery restart from DC-DC
Smart alternator
Ignition input, needs connection
Enclosure
685 x 155 x 330mm, 10.5kg
Warranty
5 years
Orientation
Left (passenger side), right (driver side) or top/ceiling

Usually

$

Enquire about this kitGet it fitted
Enerdrive canopySAVE

Kit 11

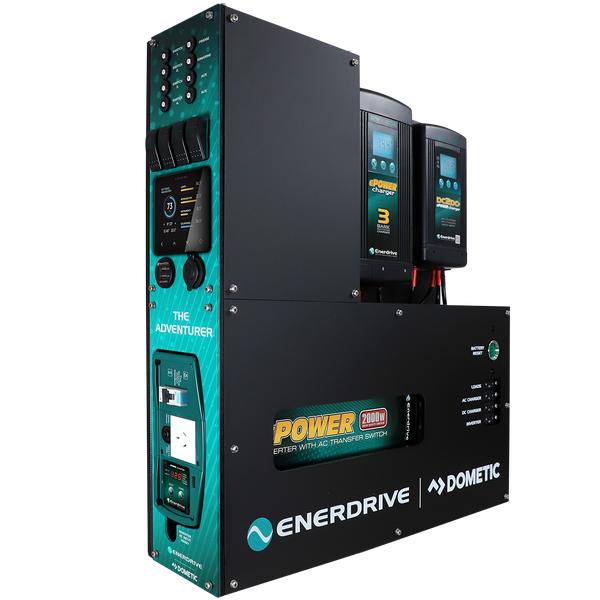

Enerdrive Adventurer Canopy System

2000W inverter, 40A AC charger, 300Ah lithium, alternator loom included

The full canopy build. A 2000W transfer inverter with its own RCD safety switch and a protected 240V outlet, so the coffee machine, the tools and the induction top all run off the battery. A 1m 70mm² battery cable kit to carry it, eight circuit breakers, a 40A mains charger, and 300Ah of slimline lithium underneath. This is the one people buy once and stop upgrading.

Included in this kit — 3 parts
  • Enerdrive Adventurer Power System (K-ADVENTURER-02-R)
  • ATG 300Ah Slimline LiFePO4 w/ Bluetooth
  • Hardkorr 40A DC-DC Charger Wiring Kit with 60A Midi fuse
Bank
300Ah lithium
DC-DC charge
40A+
Solar
Built into the DC-DC

A week or more of fridge and lights

Full specification
DC-DC charger
ePOWER DC2DC40+, vehicle & solar
AC charger
ePOWER 40A, 12V
Inverter
ePOWER 2000W AC transfer, inbuilt RCD
240V outlet
1 RCD-protected power point
Battery monitor
Simarine LCD touchscreen, WiFi
Tank monitoring
2 resistance inputs, included
Main cable
1m 70mm² kit, main DC fuse
Circuit breakers
4 main equipment + 4 pump/aux
Hi-amp breakers
Main system + 200A inverter
Switches
4 Contura, laser-etched
Fridge outlet
Not included
12V outlets
1 cig socket, twin 2.4A USB-A
Battery reset
Flat-battery restart from DC-DC
Smart alternator
Ignition input, needs connection
Enclosure
630 x 155 x 665mm, 18.0kg
Warranty
5 years
Orientation
Left (passenger side) or right (driver side) — no ceiling variant

Usually

$

Enquire about this kitGet it fitted

All eleven, side by side

Supplied is delivered to your door anywhere in Australia. Fitted is the same kit installed at Garbutt, wired into the vehicle and tested before you drive out. The three Enerdrive canopy systems are quoted for fitting once we have seen the vehicle, because the alternator run drives the hours.

#SystemSuppliedFittedInstall
1 120Ah Slimline AGM Dual Battery System $1199$1949 $750
2 170Ah Slimline AGM Dual Battery System $1499$2249 $750
3 120Ah AGM Battery Box System (25A) $949$1549 $600
4 120Ah AGM Battery Box System (40A) $1199$1799 $600
5 KickAss 205Ah Lithium Battery Box Premium $1764$2364 $600
6 Bonza 100Ah Lithium Slimline System $1369$2119 $750
7 230Ah Ultra-X Wireless Canopy System $2497$3247 $750
8 PowerBoss 230Ah Canopy Base Kit $3364$4264 $900
9 Enerdrive Explorer Canopy System $3149On request Quoted
10 Enerdrive Traveller Canopy System $4299On request Quoted
11 Enerdrive Adventurer Canopy System $7349On request Quoted
AGM or lithium?

AGM is the value option and suits a weekend fridge well, but it only likes being taken to about half charge - so a 120Ah AGM gives you 60Ah to use. Lithium buys less capacity on paper for the same money but nearly twice the usable amp-hours, and a lot less weight. Every Enerdrive canopy system here runs slimline lithium. Ask us which way to go for how you actually camp.

Dual Battery Kits

Frequently asked questions

What is the difference between a charging kit and a complete kit?

A charging kit is the system only — the DC-DC charger, solar controller and inverter or monitor where applicable. A complete kit adds a matched ATG lithium battery. Choose your battery size at checkout.

How much lithium battery do I need for a dual battery kit?

A fridge and lights for a weekend suits 100 to 120Ah. Longer trips or running an inverter suit 150 to 210Ah. Full-time off-grid living calls for 300Ah or more.

Can I charge the kit from both solar and my alternator?

Yes. Every kit charges from your vehicle alternator via DC-DC and from solar via a built-in MPPT regulator. Some kits also add 240V mains charging.

Do you fit dual battery kits in Townsville?

Yes. We supply kits Australia-wide and professionally fit them in Townsville. Cabling and fitting are quoted to suit your vehicle.

Which dual battery brand should I choose?

REDARC for Australian-made ruggedness, Enerdrive for complete pre-wired canopy systems, Victron for premium Bluetooth monitoring, and Hardkorr for simple plug-and-play power. See our buyer's guide for a full comparison.

What warranty do the kits include?

Each component carries its manufacturer warranty, typically 2 to 5 years. ATG lithium batteries include their own warranty and Bluetooth monitoring.
