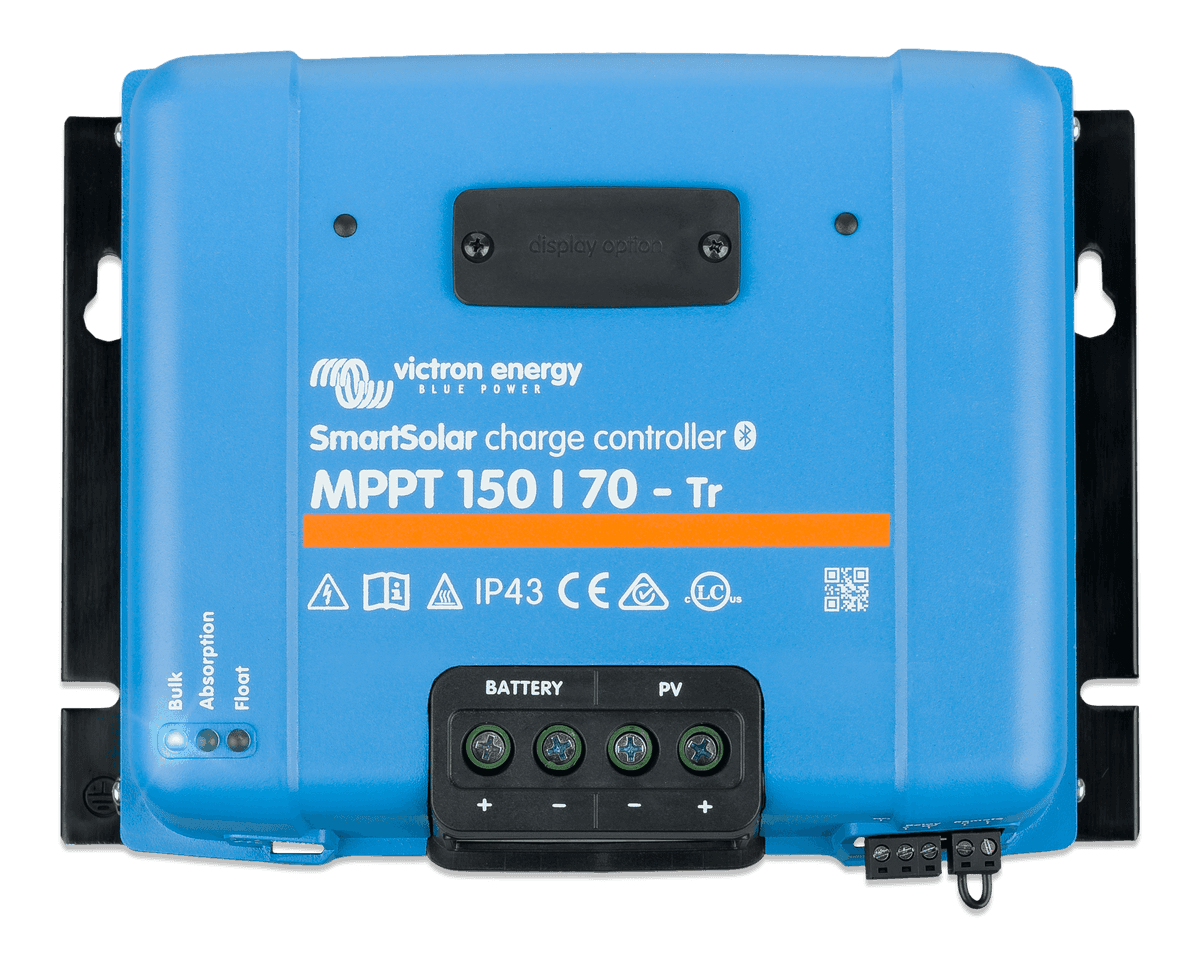

Victron SmartSolar MPPT 150/70-Tr Bluetooth Solar Charge Controller
Victron SmartSolar MPPT 150/70-Tr Bluetooth Solar Charge Controller
70A of solar charging from a 150V array - up to 1kW of panels on 12V or a full 4kW on 48V. The 150/70-Tr shares the larger -Tr housing with the 150/60, with the extra current headroom for bigger roofs and ground-mounted arrays.
Headroom for big arrays
Wire panels in series up to 150V to keep cable sizes and voltage drop down, then let the ultra-fast MPPT tracking and partial-shade detection get the most out of them. A programmable relay and remote on/off port make it easy to integrate with a generator, alarm or lithium BMS, and it runs fan-free at up to 98% efficiency.
Part of a Victron system
Set up and monitor it from your phone with built-in Bluetooth and the VictronConnect app. Pair it with a SmartShunt or BMV-712 over VE.Smart Networking for accurate voltage and temperature compensated charging, and connect it to a Cerbo GX via VE.Direct for remote monitoring on VRM.
- Part number: SCC115070211
- Battery voltage: 12/24/48V auto-select (36V via software)
- Rated charge current: 70A
- Nominal PV power: 1000W (12V) / 2000W (24V) / 3000W (36V) / 4000W (48V)
- Maximum PV open-circuit voltage: 150V absolute max (145V start-up and operating)
- Max. PV short-circuit current: 50A
- Maximum efficiency: 98%

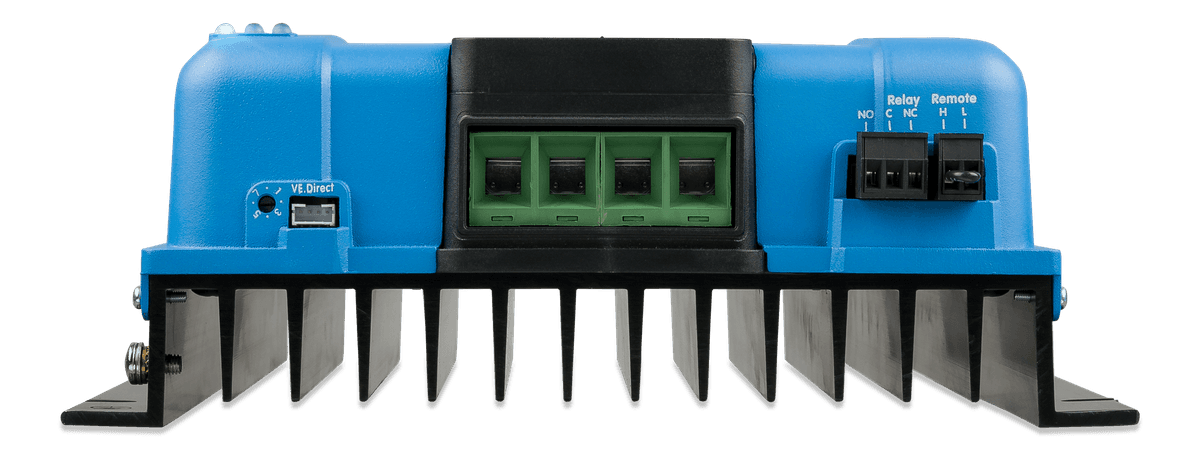

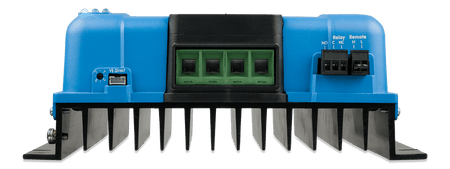

- Programmable relay: DPST, 240VAC/4A or 4A up to 35VDC
- Remote on/off: yes (2-pole connector)
- Communication: Bluetooth Smart built-in, plus VE.Direct port
- Terminals: 35mm² / AWG2 (PV and battery)
- Enclosure: IP43 (electronics), IP22 (connection area)
- Dimensions: 185 x 250 x 95mm
- Weight: 3kg
- Operating temperature: -30°C to +60°C (full output up to 40°C)
- Warranty: 5 years
Best suited to
Off-grid homes and remote sites, large motorhome and boat arrays, and 24V or 48V systems with up to around 4kW of solar.
Stocked and supported by Townsville Wholesale Batteries, your local Victron Energy dealer.
