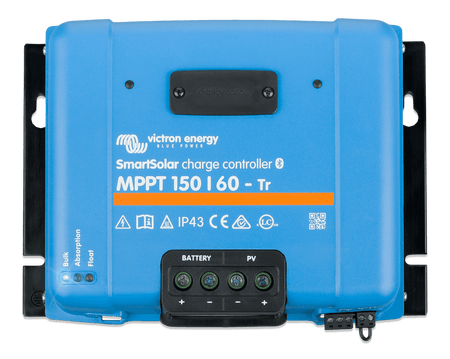

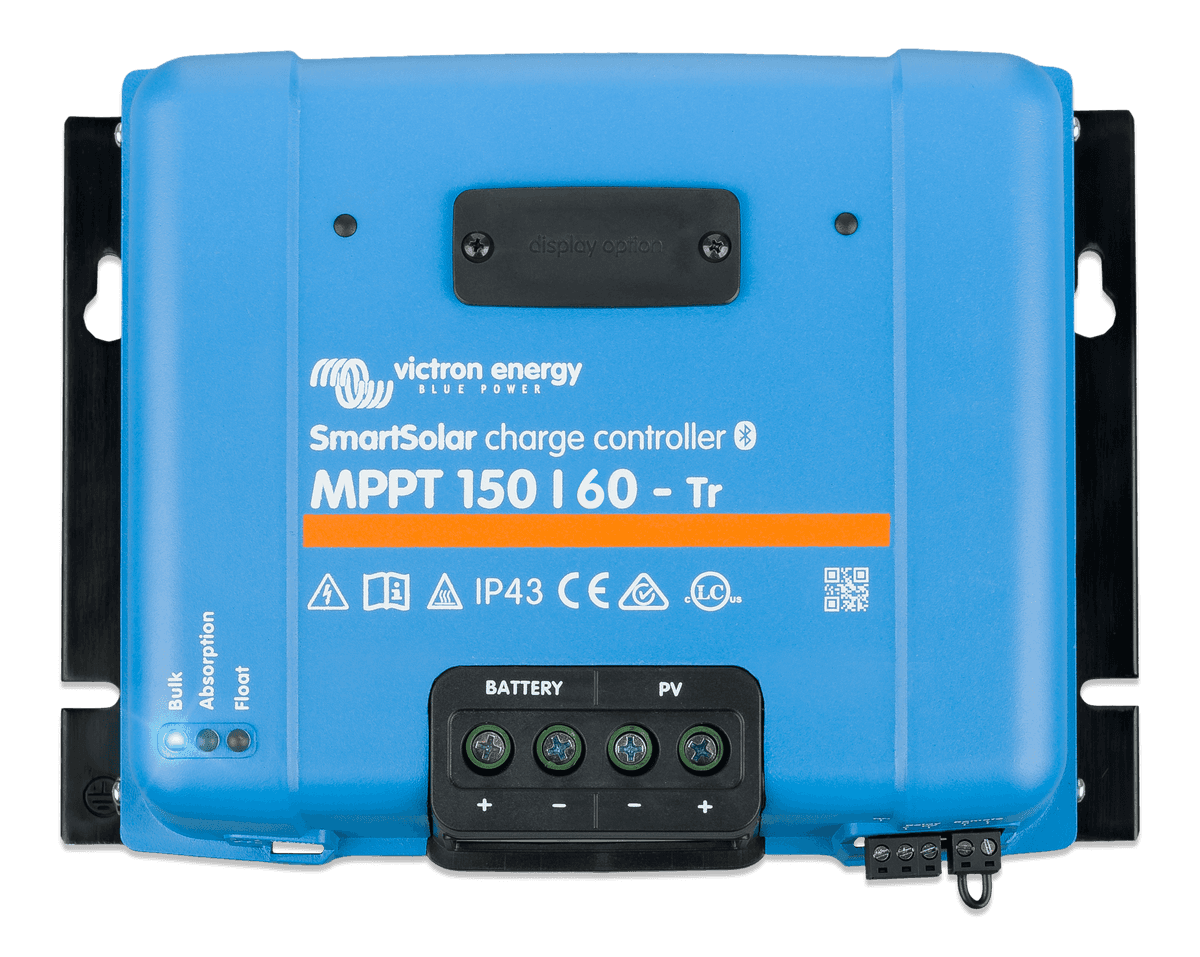

Victron SmartSolar MPPT 150/60-Tr Bluetooth Solar Charge Controller
Victron SmartSolar MPPT 150/60-Tr Bluetooth Solar Charge Controller
A 60A, 150V controller in Victron's larger -Tr housing, built for serious off-grid and multi-panel installs. It handles up to 860W of solar on 12V or 3.4kW on 48V, with screw terminals sized for heavy 35mm² cable.
Built for bigger systems
The 150V input lets you string panels in series to cut cable size and voltage drop on long runs, and the -Tr case adds a programmable relay and a remote on/off port - useful for generator start, alarm signalling, or letting a lithium BMS shut charging down. It runs fan-free at up to 98% efficiency with full rated output up to 40°C.
Part of a Victron system
Bluetooth is built in for setup and monitoring in the VictronConnect app, and VE.Smart Networking lets it share battery voltage, temperature and current with a SmartShunt or BMV-712 for more accurate charging. Connect it to a Cerbo GX over VE.Direct for remote monitoring on VRM.
- Part number: SCC115060211
- Battery voltage: 12/24/48V auto-select (36V via software)
- Rated charge current: 60A
- Nominal PV power: 860W (12V) / 1720W (24V) / 2580W (36V) / 3440W (48V)
- Maximum PV open-circuit voltage: 150V absolute max (145V start-up and operating)
- Max. PV short-circuit current: 50A
- Maximum efficiency: 98%
- Programmable relay: DPST, 240VAC/4A or 4A up to 35VDC
- Remote on/off: yes (2-pole connector)
- Communication: Bluetooth Smart built-in, plus VE.Direct port
- Terminals: 35mm² / AWG2 (PV and battery)
- Enclosure: IP43 (electronics), IP22 (connection area)
- Dimensions: 185 x 250 x 95mm
- Weight: 3kg
- Operating temperature: -30°C to +60°C (full output up to 40°C)
- Warranty: 5 years
Best suited to
Off-grid homes, sheds and cabins, large caravan and motorhome arrays, and 24V or 48V battery banks with up to around 3.4kW of solar.
