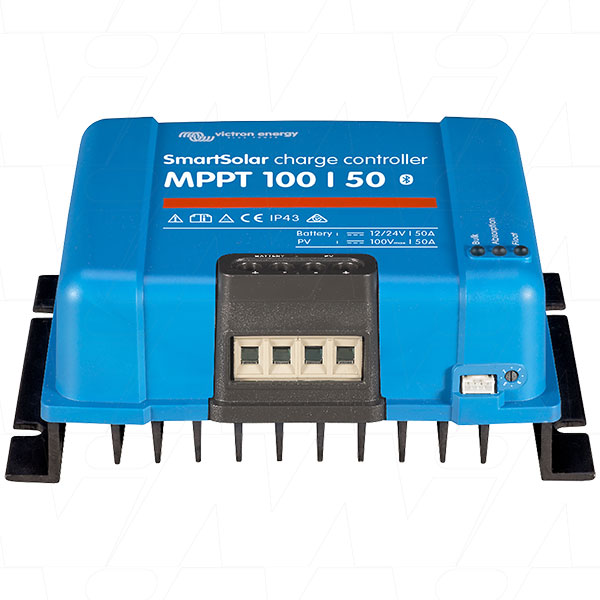

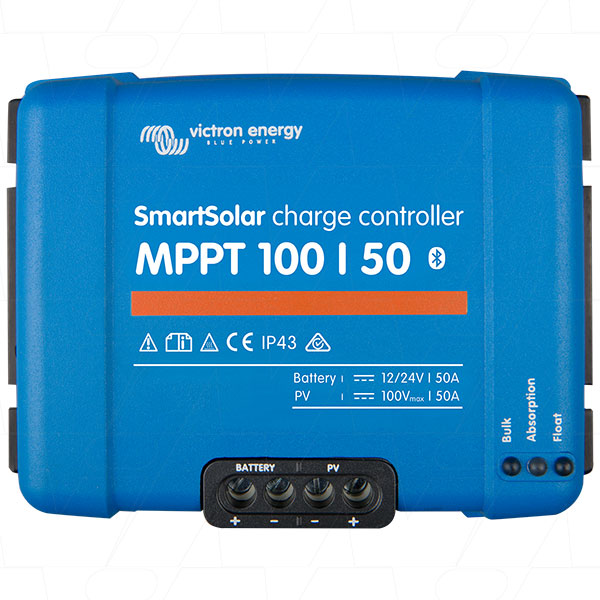

Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
The largest controller in this SmartSolar series - 50A of charge current for serious panel arrays, built for off-grid systems and larger caravan or motorhome installs that need genuine high-current solar charging without stepping up to a separate VE.Can system.
Built for big arrays
Rated at 700W on 12V or a substantial 1400W on 24V, the 100/50 is sized for multi-panel installations - several BlueSolar panels wired together, or a 360W panel array on a 24V bank. It runs fan-free with maximum efficiency exceeding 98% and full rated output up to 40°C, so there's no fan to wear out and no quiet derating in the heat.
The same intelligent tracking, scaled up
Ultra-fast MPPT tracking and advanced maximum power point detection (which correctly locks onto the true MPP rather than a local one during partial shading) are unchanged from the smaller SmartSolar models - you're getting the same charging intelligence with the headroom to match a much bigger array.
- Battery voltage: 12/24V, auto-select
- Rated charge current: 50A
- Nominal PV power: 700W (12V) / 1400W (24V)
- Maximum PV open-circuit voltage: 100V
- Max. PV short-circuit current: 60A
- Maximum efficiency: 98%
- Charge algorithm: Multi-stage adaptive, 8 pre-programmed profiles plus custom
- Communication: Bluetooth Smart built-in, plus VE.Direct port
- Enclosure: IP43 (electronics), IP22 (connection area)
- Dimensions: 130 x 186 x 70mm
- Weight: 1.3kg
- Operating temperature: -30°C to +60°C (full output up to 40°C)
Best suited to
Large off-grid systems, multi-panel caravan and motorhome roofs, and any 12V/24V install where charge current demand has outgrown smaller MPPT controllers.
Pair with: two or more Victron BlueSolar 360W panels for a high-output 24V off-grid charging system.
