Victron Orion XS 1400 DC-DC Charger

$599.00 inc GST

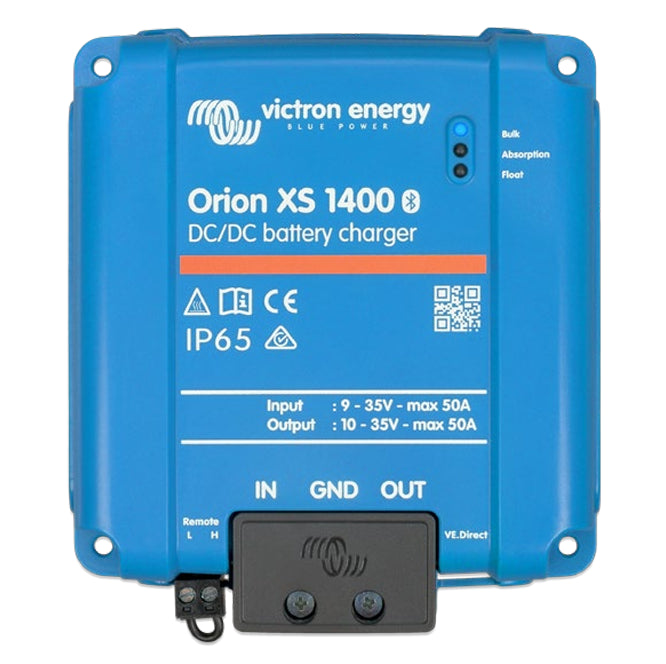

Victron Orion XS 1400 DC-DC Charger

Victron's flagship DC-DC charger, engineered from the ground up to replace the older Orion-Tr Smart series with a smaller footprint, higher efficiency, and full native integration into a Victron GX system.

Up to 1400W, configurable across 12V and 24V

The Orion XS 1400 charges a 12V or 24V battery bank from a 12V or 24V starter battery, with an adjustable output current of 1-50A in 0.1A steps. Total wattage depends on your voltage combination: roughly 700W in a 12V-to-12V setup, up to a full 1400W in a 24V-to-24V configuration. If you're running a 12V system, Victron's smaller Orion XS 12/12-50A is usually the more efficient choice - the 1400 comes into its own on 24V systems or when planning a future upgrade.

Built for modern smart alternators

An integrated engine-running detection mechanism ensures the charger only draws power when the alternator is actually supplying it - critical with Euro 5/6 smart alternators that vary their output voltage and shut down when not needed, which can otherwise confuse older DC-DC chargers into drawing down your starter battery.

Full Victron communication suite

Unlike the Orion-Tr Smart, the XS adds VE.Smart Networking (wirelessly receiving voltage, temperature and current data from a SmartShunt or BMV) plus a wired VE.Direct port with DVCC support for full integration with a Cerbo GX or similar - giving you VRM remote monitoring and system-wide charge coordination.

Specifications

  • Input voltage range: 9-35V
  • Output voltage adjust range: 10-35V
  • Output current setting range: 1-50A (0.1A steps)
  • Maximum output power: 1400W at 40°C (24V-to-24V configuration)
  • Maximum efficiency: 98.5%
  • Charge algorithm: Adaptive 4-stage (bulk, absorption, float, storage) plus lithium profile
  • Communication: Bluetooth, VE.Direct (DVCC via GX device), VE.Smart Networking
  • Protection rating: IP65 (fan-free, sealed)
  • Weight: approximately 0.52kg
  • Dimensions: 138.1 x 124.4 x 53.0mm
  • Warranty: 5 years

Best suited to

24V vehicle and caravan electrical systems, or upgrades from older 100A buck-boost chargers, where you want Victron's latest charging technology and full GX/VRM integration.
