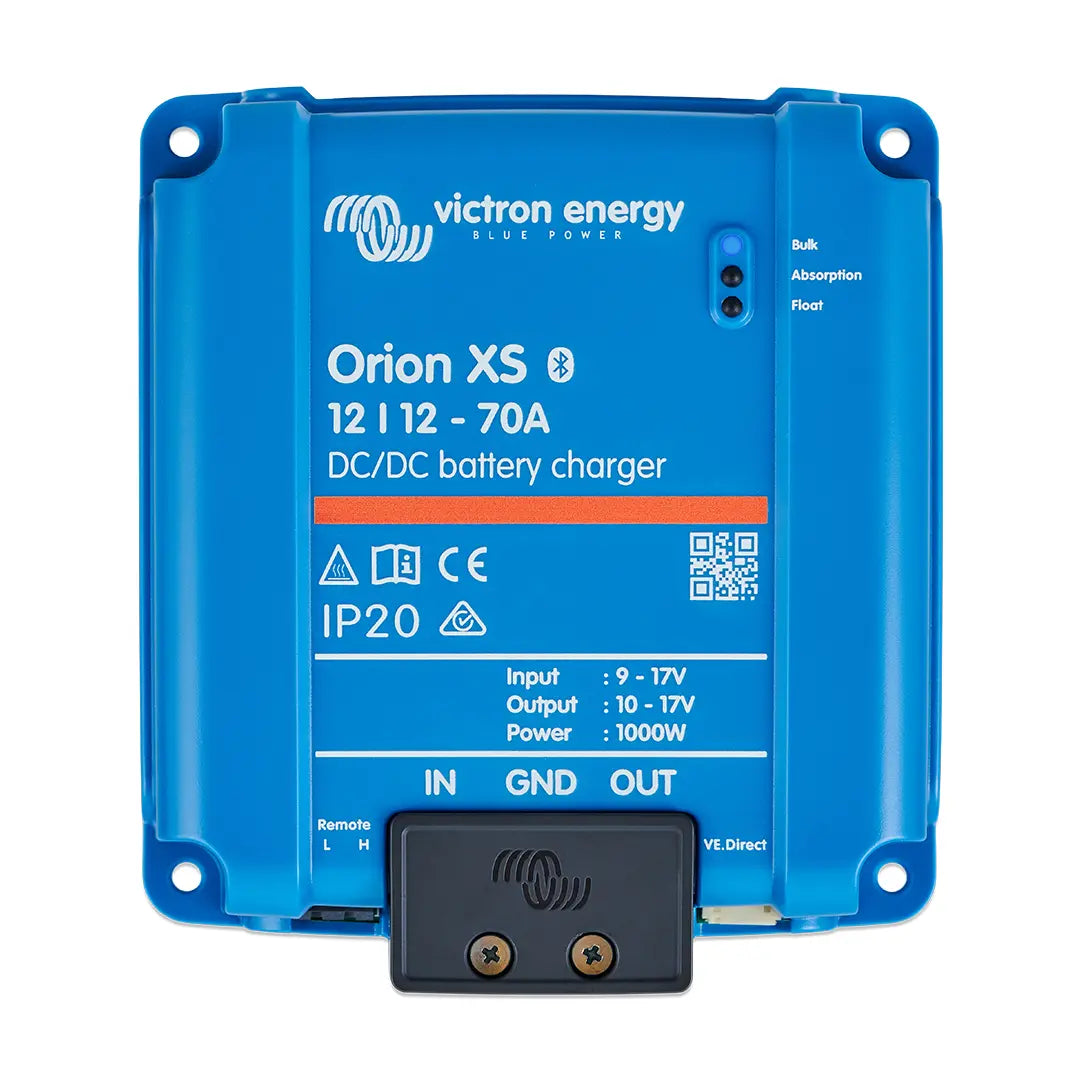

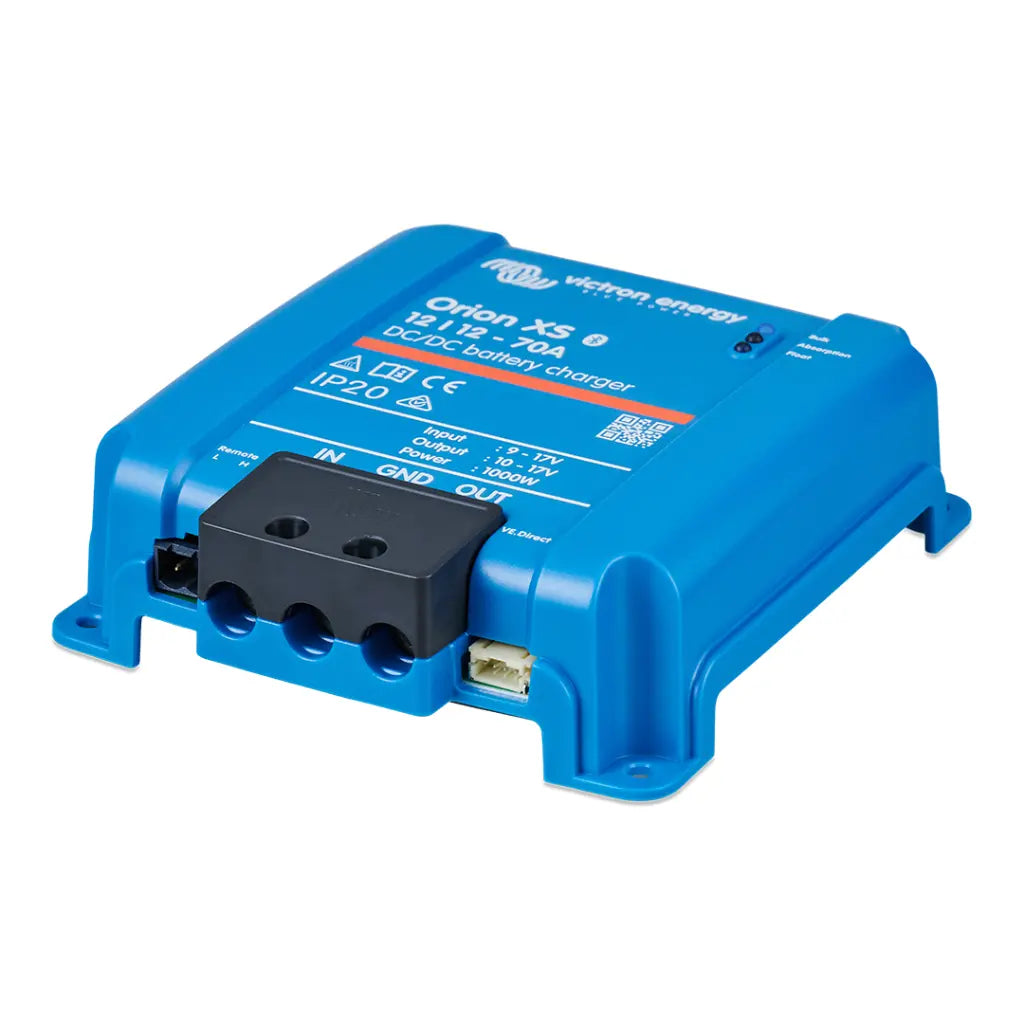

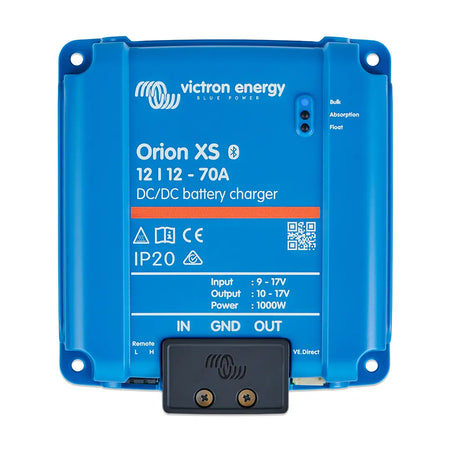

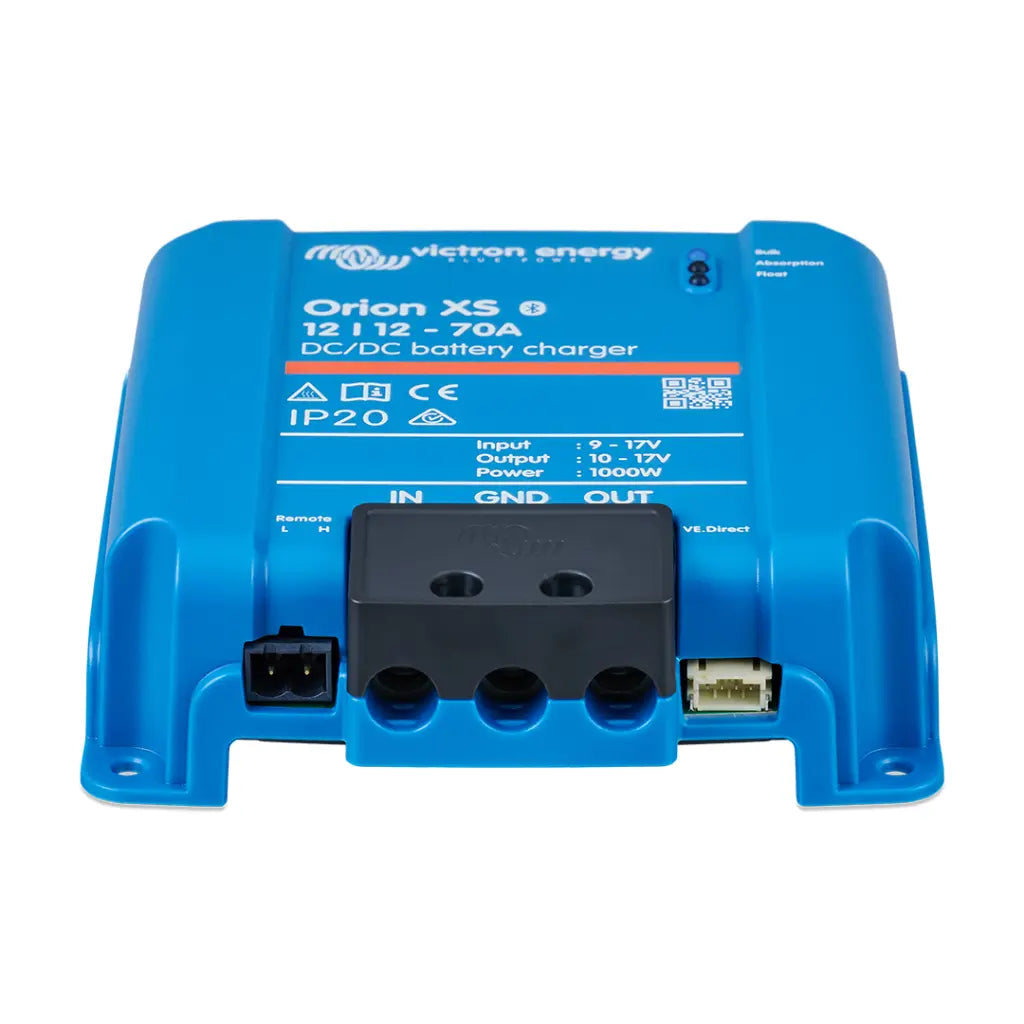

The Victron Orion XS 12/12-70A is the highest-output charger in the Orion XS range — up to 70A and 1000W continuous into your auxiliary battery, at up to 98.5% efficiency. Fan-cooled and rated for full output to 40°C, it suits larger lithium banks where charge speed matters.
Key features
- 70A output from a 12V source to a 12V auxiliary battery, adjustable 1–70A
- 1000W continuous output power up to 40°C
- Up to 98.5% efficient — less heat and less alternator load
- Bluetooth built in — setup and monitoring through VictronConnect
- VE.Direct port for integration with a Cerbo GX and DVCC control
- VE.Smart Networking — shares data with your MPPT and battery monitor
- Adaptive four-stage charging (bulk, absorption, float, storage) with eight preset battery profiles and fully programmable algorithms
- Engine shutdown detection — no external sensor needed, smart alternator (Euro 6) compatible
- Low-temperature shutdown to protect lithium batteries

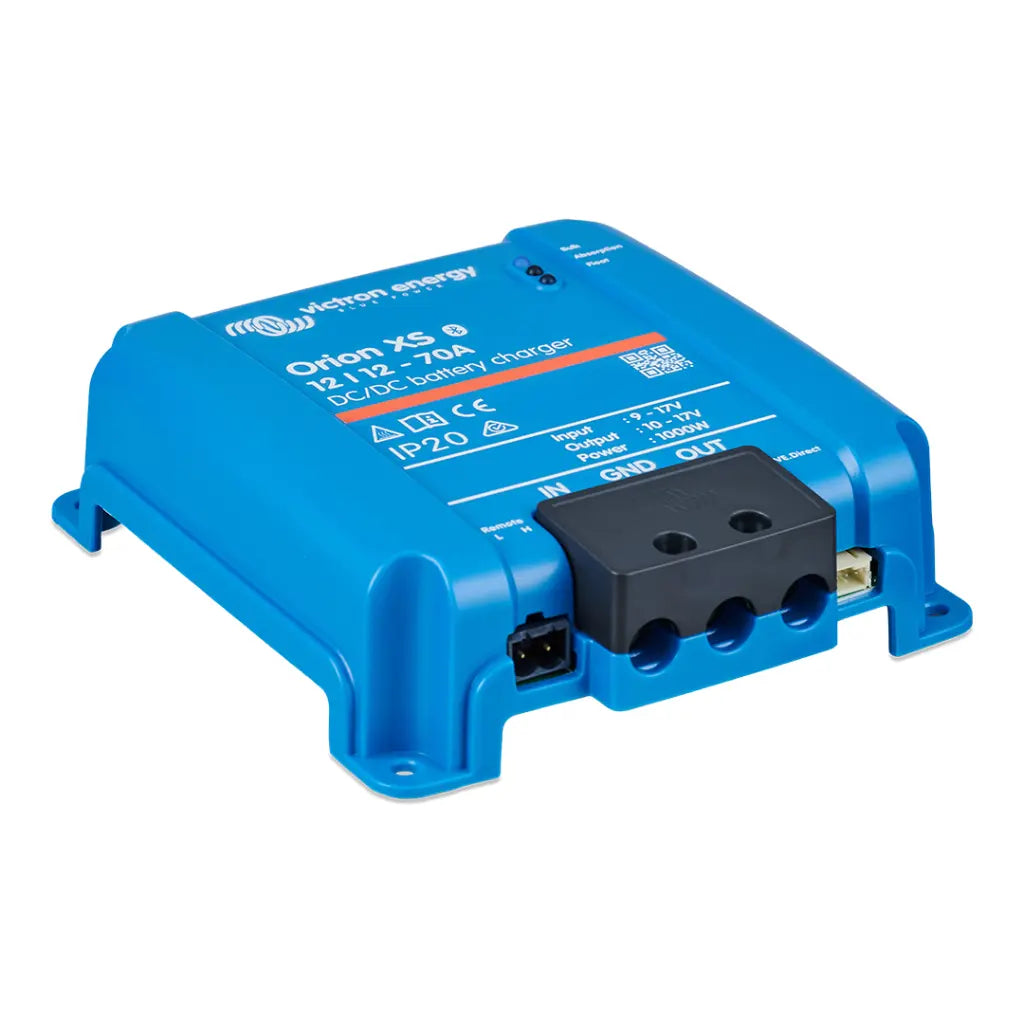

- Accepts cables up to 25 mm², and can be run in parallel for higher output
- Part number: ORI121221040
- Input voltage range: 9–17V
- Output: 12V nominal, adjustable 10–17V, up to 70A
- Continuous output power: 1000W (to 40°C, derating 1.5%/°C above)
- Peak efficiency: 98.5%
- Standby current: <1.5 mA — no-load current <100 mA
- Protection rating: IP20 (internal power electronics potted to IP65)
- Operating temperature: −20°C to +60°C
- Dimensions: 137.3 x 123.1 x 40 mm
- Weight: 0.34 kg
- Non-isolated
- Warranty: 5 years
Choosing between the Orion XS models

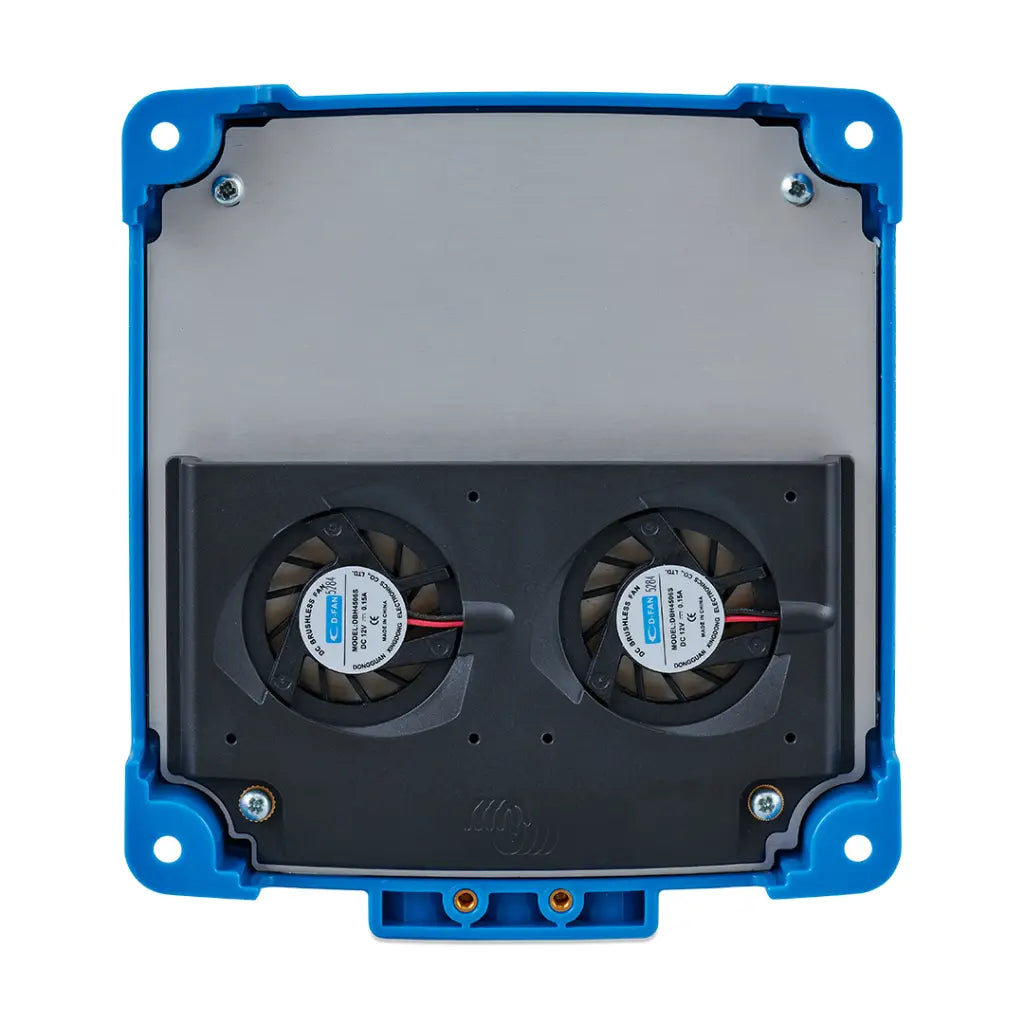

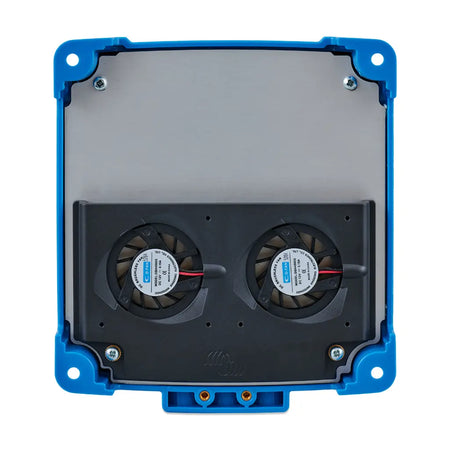

The 50A is fanless and IP65 rated, which suits exposed or under-bonnet mounting. This 70A uses cooling fans to reach its higher output and is rated IP20, so it needs a dry, protected mounting location such as inside a canopy, van or caravan.
Best suited to
Caravans, canopies, vans and 4WDs running larger lithium banks where you want the most charge into the battery per hour of driving. Pair it with a Victron SmartSolar MPPT to charge from solar and the alternator together.
Stocked, installed and supported by Townsville Wholesale Batteries, your local Victron Energy dealer. Call 0459 364 303 for installation.
