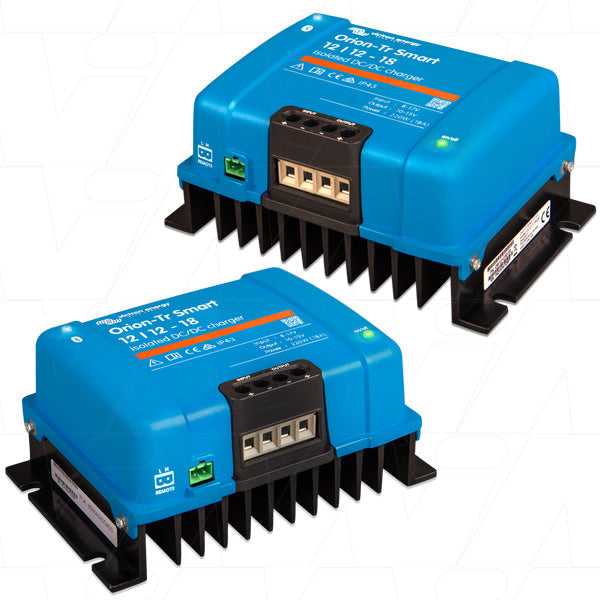

Victron Orion-Tr Smart 12/12-18A (220W) Isolated DC-DC Charger
Victron Orion-Tr Smart 12/12-18A (220W) Isolated DC-DC Charger
The smallest charger in Victron's Orion-Tr Smart isolated DC-DC range, sized for smaller dual battery systems where a compact, fully isolated charger is the priority over outright charge current.
Galvanic isolation, no shared chassis ground
As an isolated model, the 12/12-18A keeps the starter and service battery circuits electrically separate, with no shared chassis ground between input and output. This matters most in boats and vehicles where galvanic isolation reduces corrosion risk and electrical noise between circuits.
Built for modern smart alternators
An engine-running detection mechanism prevents the charger from drawing on the starter battery when the alternator isn't actually supplying power - essential with Euro 5/6 smart alternators that vary output voltage and cut out when not needed.
Bluetooth setup and monitoring
Built-in Bluetooth connects to the VictronConnect app for configuration and live monitoring - no separate dongle required. The adaptive 3-stage charge algorithm (bulk, absorption, float) is configurable for both lead-acid and lithium battery banks.
Specifications
- Output: 12V, 18A, 220W
- Isolation: Galvanically isolated (separate chassis grounds)
- Charge algorithm: Adaptive 3-stage, lead-acid and lithium compatible
- Communication: Built-in Bluetooth via VictronConnect
- Engine detection: Smart alternator compatible
- Operating temperature: full rated output up to 40°C, usable to 55°C
- Warranty: 5 years
Best suited to
Smaller 12V dual battery systems in cars, 4WDs and small boats - charging an auxiliary or house battery from the alternator while the vehicle is running.
Need more current? See the Orion-Tr Smart 12/12-30A for a higher-output isolated option in the same 12V-to-12V configuration.
