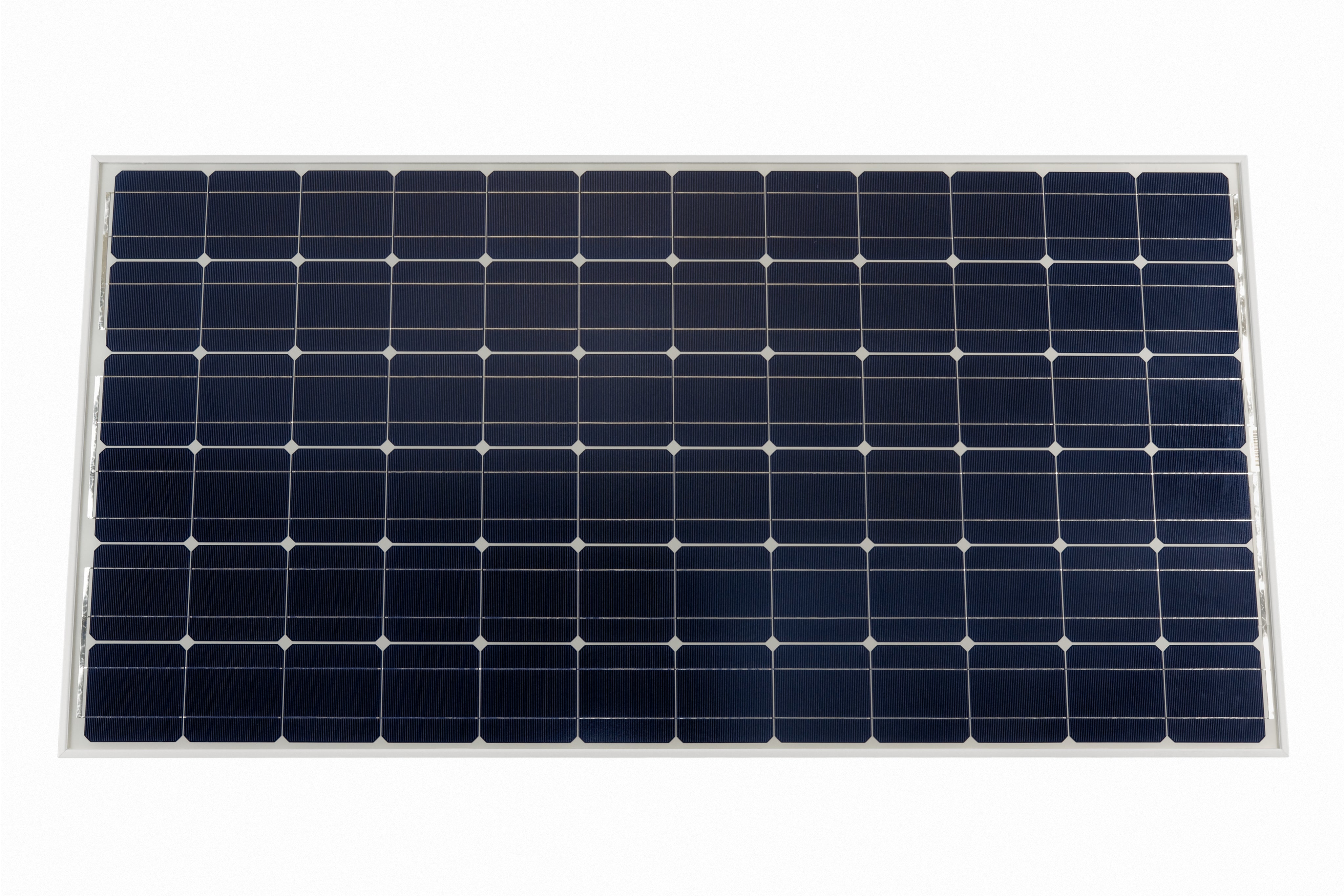

Maximum power per panel, done properly. The Victron BlueSolar 235W is built for larger solar arrays on caravans, motorhomes and off-grid systems — the right choice when you want the most output from each spot on the roof, with Victron's renowned reliability behind it.
Strong output in North Queensland sun
Rated at 235W with 5.68A of maximum-power current, this 72-cell array feeds serious charge into 24V banks. Victron's low −0.45%/°C temperature coefficient holds output through long, high-UV Townsville afternoons, where cheaper panels drop away as soon as they warm up on a tin roof.
Engineered to last
High-transmission tempered glass, a rigid anodised aluminium alloy frame, and a junction box with bypass diodes to protect output under partial shade — the same standard that runs through the entire BlueSolar range.
Technical specifications
- Rated power (Pmax): 235 W (±3%)
- Max-power voltage (Vmp): 41.4 V
- Max-power current (Imp): 5.68 A
- Open-circuit voltage (Voc): 49.6 V
- Short-circuit current (Isc): 6.02 A
- Cells: 72-cell monocrystalline
- Dimensions: 1350 × 880 × 30 mm
- Weight: 12.48 kg
- Maximum system voltage: 1000 V
- Temperature coefficient (Pmax): −0.45 %/°C
Best paired with a Victron SmartSolar MPPT controller (required — this high-voltage 72-cell panel suits 24V systems) for fast, efficient charging with Bluetooth monitoring.
Expert solar advice and professional installation at Townsville Wholesale Batteries — call 0459 364 303.
