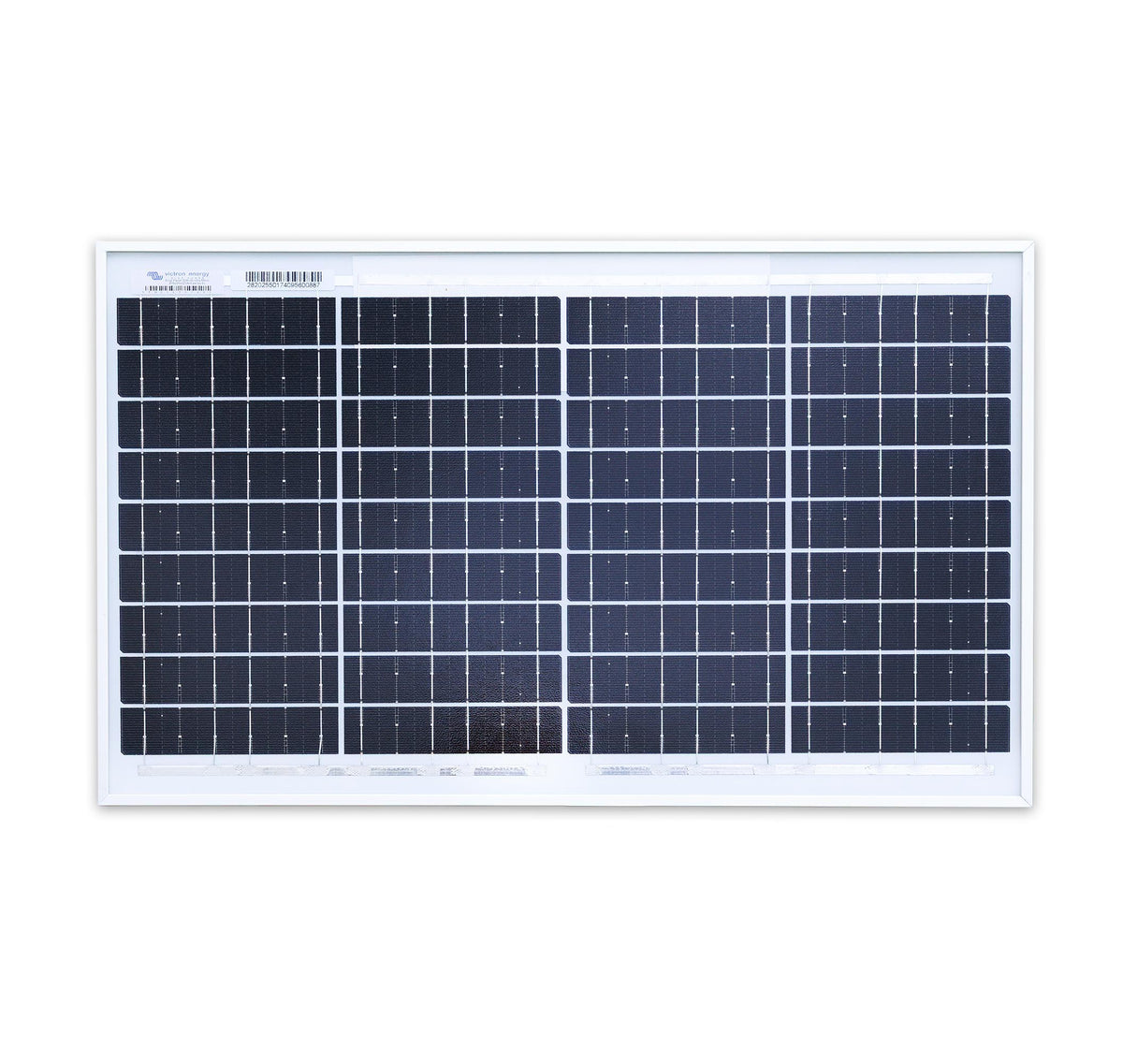

A compact 12V panel built for trickle charging and small off-grid jobs. The Victron BlueSolar 20W keeps a battery healthy and topped up — ideal for stored vehicles, boats, gate and camera setups, or as a maintenance charger — with genuine Victron build quality in a tiny footprint.
Reliable maintenance charge in North Queensland sun
Rated at 20W with 1.09A of maximum-power current, this 36-cell panel provides a steady trickle to keep a 12V battery from going flat. Victron's low −0.45%/°C temperature coefficient means it keeps working through hot, high-UV Townsville days rather than fading once it warms up.
Engineered to last
High-transmission tempered glass, a corrosion-resistant anodised aluminium frame, and an IP65 weatherproof junction box with bypass diodes — the same standard that runs through the entire BlueSolar range.
Technical specifications
- Rated power (Pmax): 20 W (±3%)
- Max-power voltage (Vmp): 18.5 V
- Max-power current (Imp): 1.09 A
- Open-circuit voltage (Voc): 22.6 V
- Short-circuit current (Isc): 1.19 A
- Cells: 36-cell monocrystalline
- Dimensions: 440 × 350 × 25 mm
- Weight: 1.9 kg
- Maximum system voltage: 1000 V
- Temperature coefficient (Pmax): −0.45 %/°C
Best paired with a Victron SmartSolar MPPT or BlueSolar PWM controller for simple 12V trickle charging and battery maintenance.
Expert solar advice and professional installation at Townsville Wholesale Batteries — call 0459 364 303.
