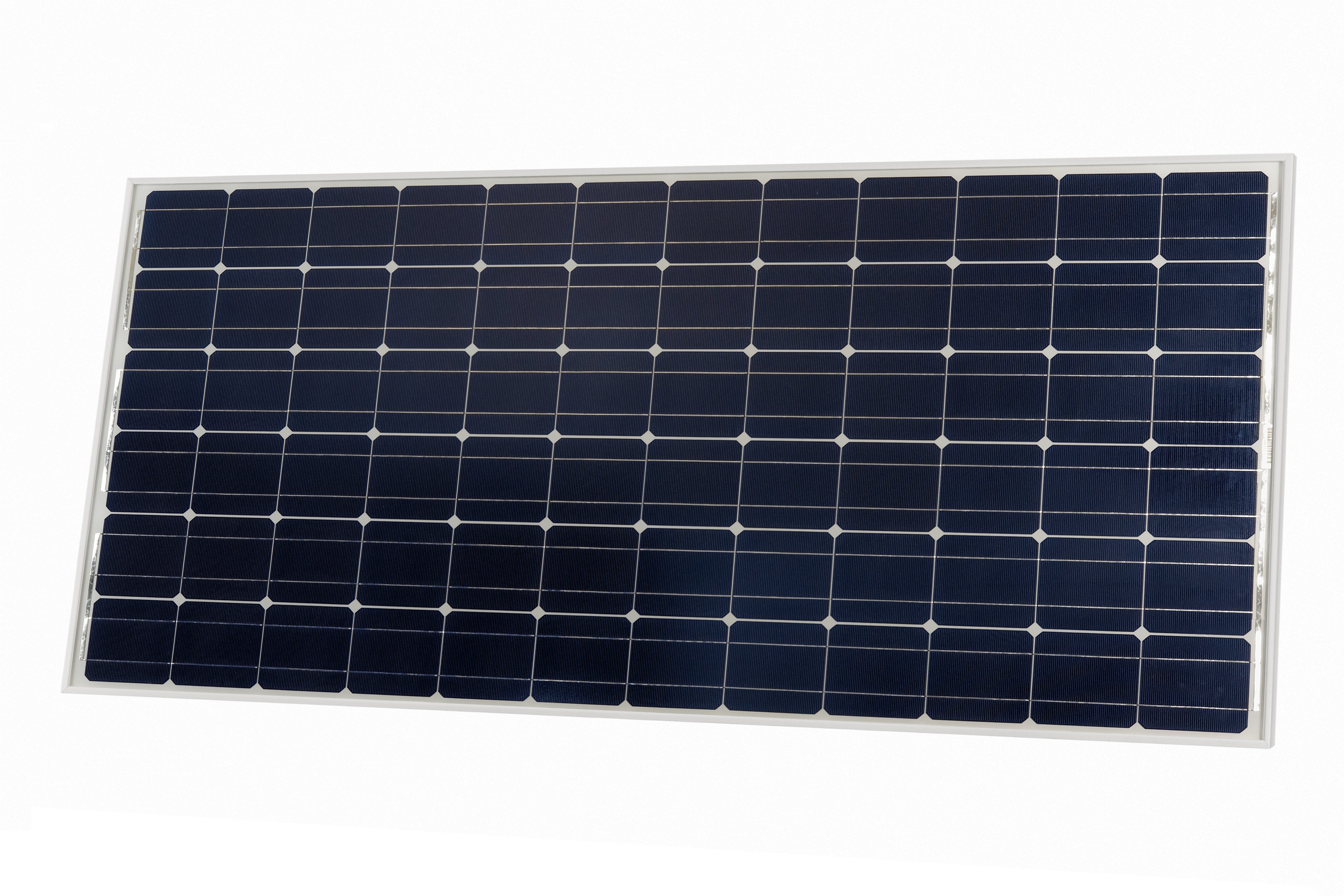

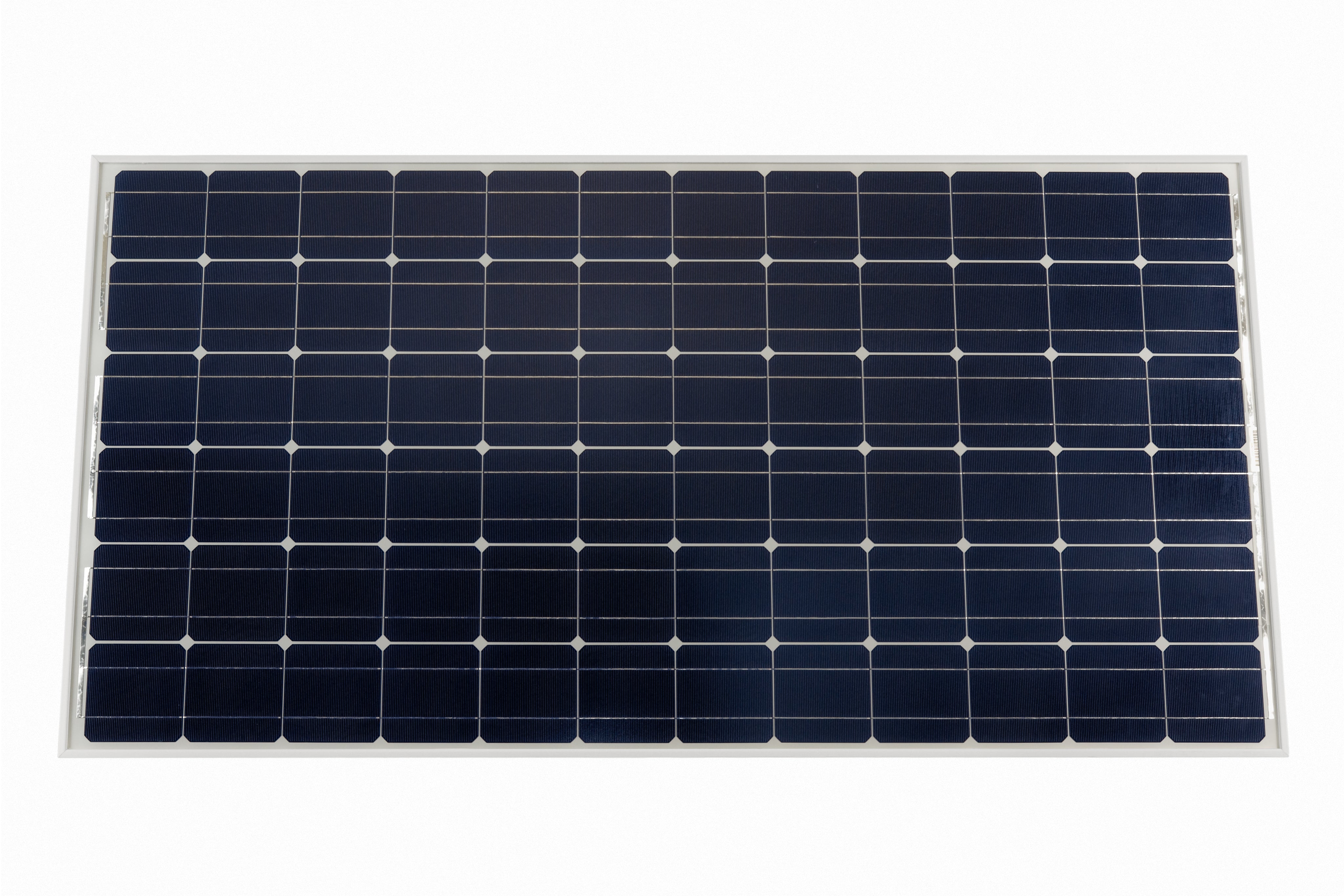

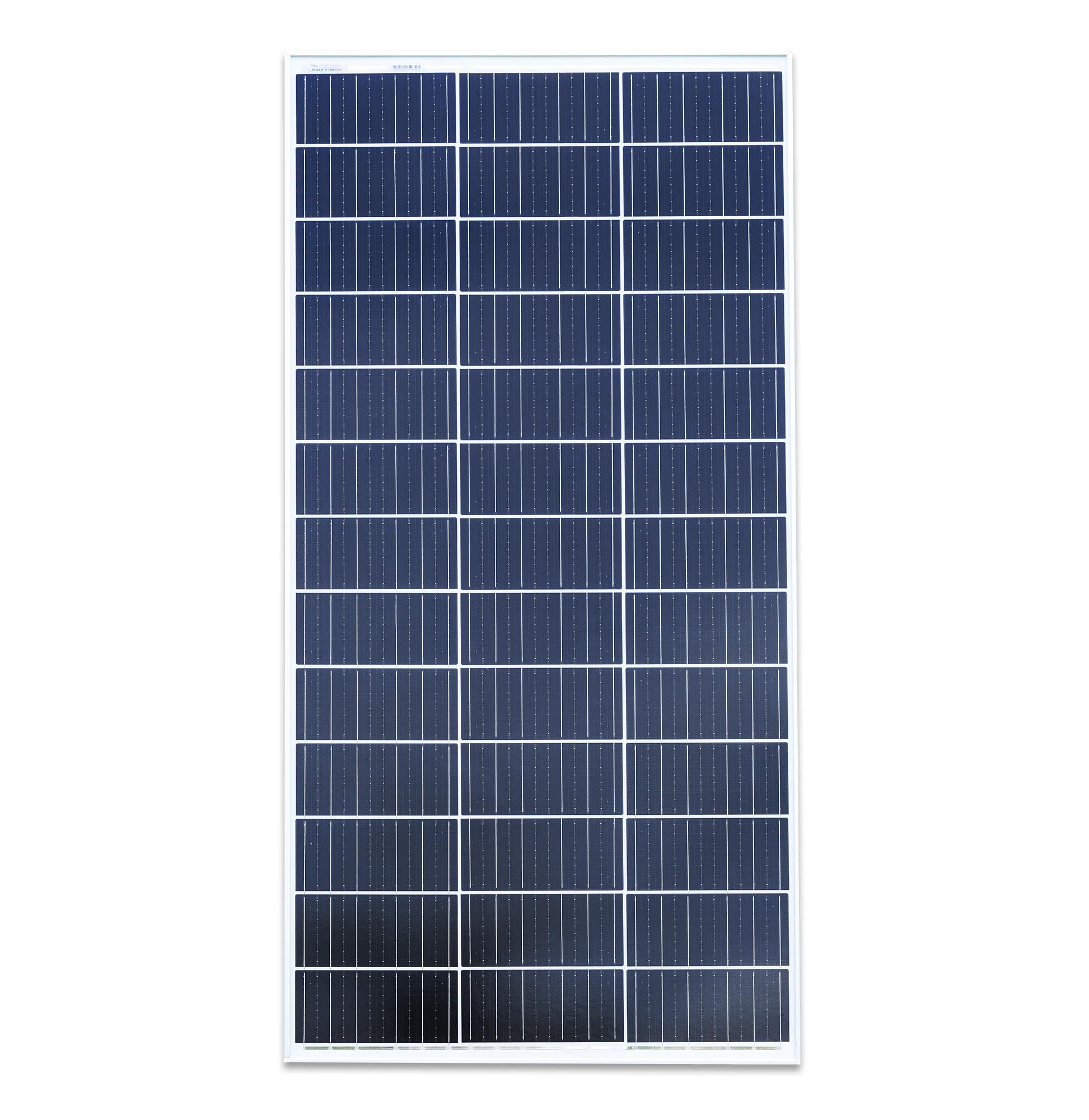

Victron BlueSolar Monocrystalline Solar Panel 190W 39-Cell

The Victron BlueSolar 190W Monocrystalline Panel is a high-efficiency 39-cell panel designed for 12V MPPT and 24V off-grid solar systems. Ideal for caravans, motorhomes, marine, and remote power applications requiring a compact, high-output panel.

Electrical Specifications (STC)

• Nominal Power (PMPP): 190W (±3%)
• Max-Power Voltage (VMPP): 21.8V
• Max-Power Current (IMPP): 8.71A
• Open-Circuit Voltage (Voc): 25.5V
• Short-Circuit Current (Isc): 9.17A
• Maximum Series Fuse Rating: 15A
• Efficiency: 19.16%
• Maximum System Voltage: 1000V

Temperature Coefficients

• Power (MPP): -0.45%/°C
• Open-Circuit Voltage (Voc): -0.35%/°C
• Short-Circuit Current (Isc): +0.04%/°C
• Operating Temperature Range: -40°C to +85°C

Mechanical Specifications

• Dimensions: 1485 × 668 × 30 mm
• Weight: 10.50 kg
• Cell Technology: 39-cell monocrystalline (Series 4c)
• Frame: Anodised aluminium
• Glass: High-transmission tempered glass
• Junction Box: LH0808 with bypass diodes
• Connectors: MC4 / PV-ST01 with 900mm cables
• Surface Load Capacity: 200 kg/m²
• Hail Resistance: 23 m/s (7.53g)

Warranty

• 5-year product warranty on materials and workmanship
• 10 years: ≥90% power output
• 25 years: ≥80% power output
