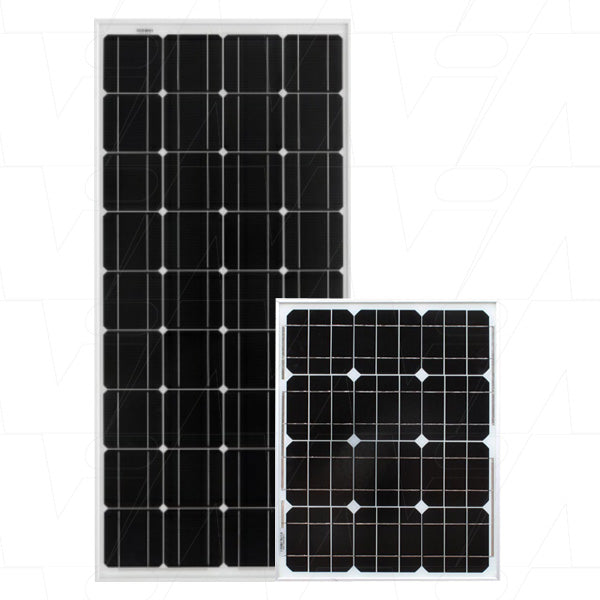

Victron BlueSolar 24V 215W Monocrystalline Solar Panel (72 Cell)
Victron BlueSolar 24V 215W Monocrystalline Solar Panel
A mid-size 24V panel from Victron's BlueSolar monocrystalline range, well suited to caravans, camper trailers and small off-grid setups that run a 24V system but don't have roof space - or budget - for the largest panels in the range.
Solid, dependable output
Rated at 215W STC, this 72-cell monocrystalline panel delivers 5.36A at its maximum power point and 46.01V open-circuit voltage, making it a clean match for a 24V SmartSolar MPPT controller. Victron's low temperature coefficient keeps it performing through hot North Queensland afternoons better than cheaper alternatives that fall away once the panel surface warms up.
The same build quality across the whole BlueSolar range
Tempered high-transmission glass, triple-layer EVA encapsulation, and an anodised aluminium frame rated to 200kg/m² surface load and 23m/s hail impact. The IP67-rated junction box (PV-LH0701) houses bypass diodes to protect output if the panel is partially shaded.
Specifications
- Nominal power: 215W (±3% tolerance)
- Max-power voltage (Vmpp): 40.1V
- Max-power current (Impp): 5.36A
- Open-circuit voltage (Voc): 46.01V
- Short-circuit current (Isc): 5.65A
- Cell type: Monocrystalline, 72 cells in series
- Dimensions: 1580 x 705 x 35mm
- Weight: 11.7kg
- Maximum system voltage: 1000V
- Junction box: PV-LH0701, IP67
- Warranty: 5 years materials and workmanship; 10 years at 90% power output, 25 years at 80% power output
Best suited to
24V caravan and camper trailer roofs, dual battery systems running a 24V auxiliary bank, and smaller off-grid sheds where a single mid-size panel covers daily charging needs.
Pair with: a Victron SmartSolar MPPT 75/10 or 75/15 for a well-matched 24V solar charging setup.
