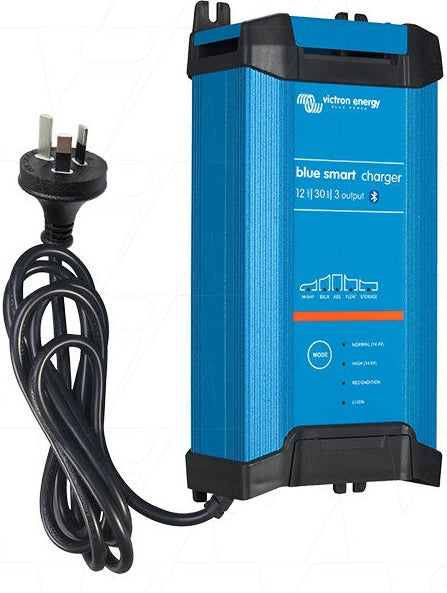

Victron Blue Smart IP22 SLA/LiFePO4 Charger 12V 30A Triple Output
Features:
- Smart Charger
- Built-in Bluetooth
- Suitable for Lithium Batteries
- Cabling & Quick Fit Connectors Included
- Multi-Stage Charging
- Recovery of Fully Discharged Batteries
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper vans.
More Features:
The Battery is Charged, Smartly and to Perfect Condition:
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and a longer life.
Recovery of Deeply-Discharged 'Dead' Batteries:
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Check the Status of Your Battery Remotely:
The Blue Smart IP22 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
Bluetooth Smart:
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, change settings and update the charger when new features become available.
High Efficiency:
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. Once the battery is fully charged, power consumption reduces to 0.5W, some five to ten times better than the industry standard.
Adaptive 6-stage Charge Algorithm: Test - Bulk – Absorption - Recondition – Float – Storage
The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode: Less maintenance and ageing when the battery is not in use:
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also Charges Li-ion (LiFePO₄) Batteries:
LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.
Night and Low Setting:
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected Against Overheating:
Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for Status Indication:
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14.4V) / HIGH (14.7V) / RECONDITION / LI-ION.
*Charger comes with 240V AU/NZ lead. This charger does not come with the recommended DC cable. 6mm2 for over short distances.*
Product Details
| Selling Unit | EACH |
|---|---|
| Model No | VECIP22-12/30A-1 |
| Inventory Code | 64900-210A |
| Brand |  |
| Original Brand | Victron Energy BPC123047012 |
| Description | Blue Smart IP22 SLA/LiFePO4 Charger 12V 30A Single Output Fan Assisted BPC123047012 (AU/NZ Plug) |
| Chemistry | Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA) |
| Voltage | 12V |
| Size | 30A |
| Width | 65mm |
| Height | 235mm |
| Length / Breadth / Depth | 108mm |
| Weight | 1300g |
