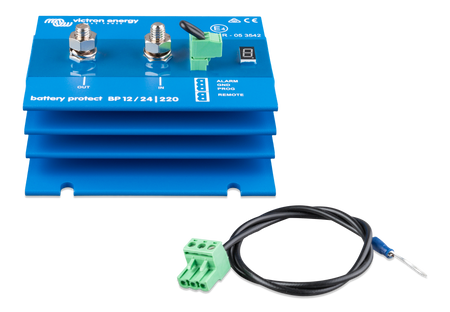

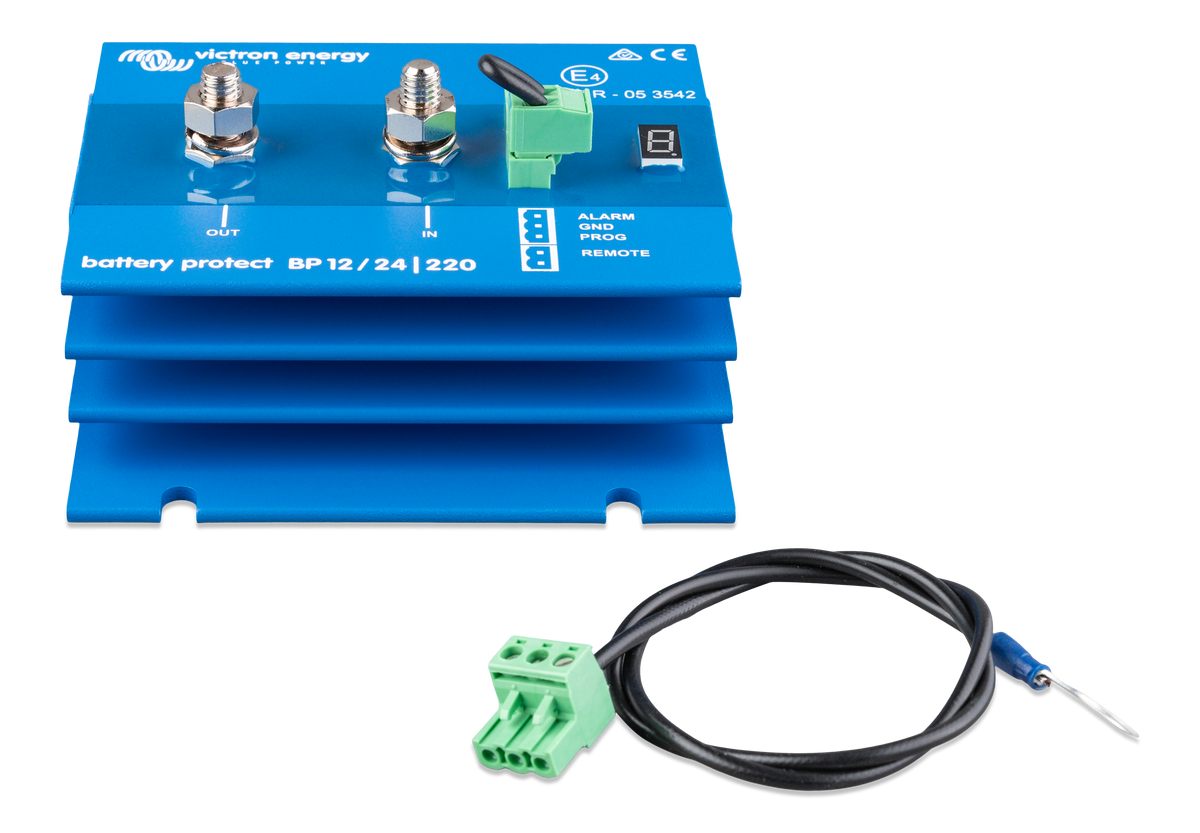

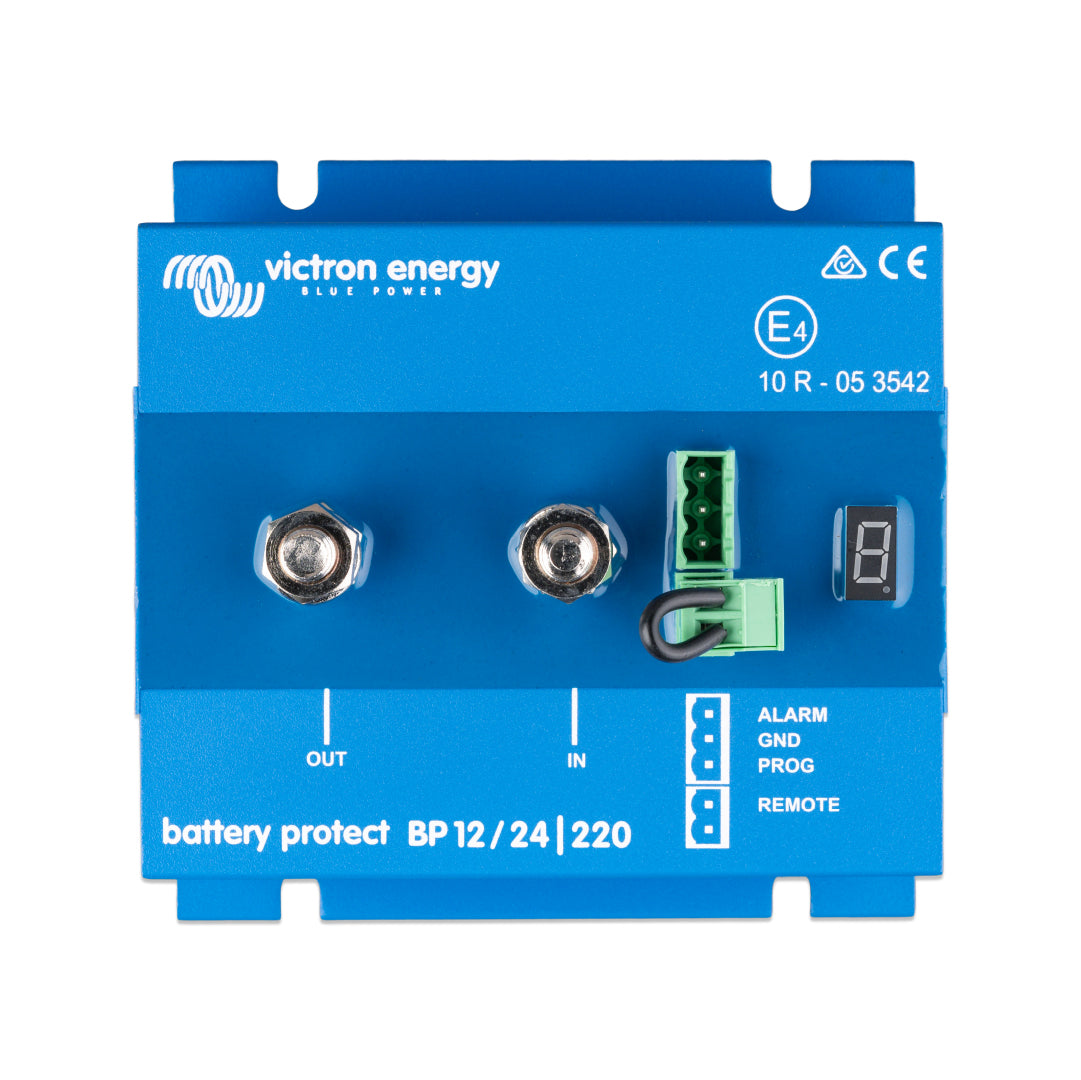

The Victron BatteryProtect 12/24V 220A disconnects the load before a battery is discharged deep enough to damage it, or before it drops too low to crank an engine. The largest unit in the standard BatteryProtect range, sized for high-current loads such as inverters, winches and full auxiliary distribution.
Key features
- 220A continuous rating, 12V or 24V auto-sensing
- Disconnects the load on low battery voltage to prevent deep discharge
- Ultra-low current draw when disconnected (~1 mA)
- Programmable disconnect and reconnect thresholds
- Also protects against over-voltage
- No relay contacts to weld — solid-state MOSFET switching
- Ignition-protected, suitable for engine bays
- Part number: BPR000220400
- Continuous current: 220A
- Nominal voltage: 12V / 24V (auto)
- Warranty: 5 years
Note: the standard BatteryProtect is not suitable for charging circuits or for use with a lithium BMS load-disconnect output — use the Smart BatteryProtect in those applications.
Stocked and supported by Townsville Wholesale Batteries, your local Victron Energy dealer.
Good to know
Delivery, pickup & fitting
Pickup from our Townsville warehouse or freight Australia-wide — contact us to confirm current stock and any lead time. Fitting is available and quoted per job.
Warranty
Backed by an Australian warranty with local support. Register your battery after purchase to activate cover.
