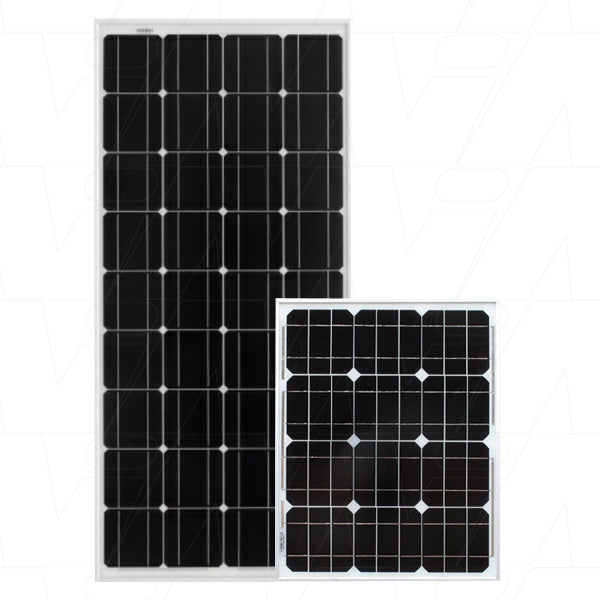

Victron BlueSolar 24V 360W Monocrystalline Solar Panel
Victron BlueSolar 24V 360W Monocrystalline Solar Panel
The largest panel in Victron's BlueSolar monocrystalline range, the 360W 24V model is built for serious off-grid power: large caravan and motorhome roofs, sheds, remote cabins, and 24V battery banks that need real charging current, not a trickle.
Performance you can rely on in North Queensland sun
Rated at 360W STC with 9.38A maximum power current and 47.4V open-circuit voltage, this 72-cell monocrystalline panel pairs naturally with a 24V SmartSolar MPPT controller for fast, efficient charging even through Townsville's long, high-UV summer days. Victron's low voltage-temperature coefficient (-0.45%/°C) means it keeps producing well even as the panel surface heats up on a tin roof or caravan rooftop - a real advantage over budget panels that fall away sharply once they're hot.
Built to Victron's standard, not a budget one
Every BlueSolar panel uses high-transmission tempered glass, a triple-layer EVA encapsulation back sheet, and a sturdy anodised aluminium frame rated to a 200kg/m² surface load and 23m/s hail impact. The sealed, waterproof junction box (PV-JB002) carries high-performance bypass diodes to limit power loss if part of the panel is shaded by an awning, antenna, or air conditioner.
- Nominal power: 360W (±3% tolerance)
- Max-power voltage (Vmpp): 38.4V
- Max-power current (Impp): 9.38A
- Open-circuit voltage (Voc): 47.4V
- Short-circuit current (Isc): 10.24A
- Cell type: Monocrystalline, 72 cells in series
- Dimensions: 1980 x 1002 x 40mm
- Weight: 23kg
- Maximum system voltage: 1000V
- Connectors: Pre-wired MC4 (PV-ST01)
- Warranty: 5 years materials and workmanship; 10 years at 90% power output, 25 years at 80% power output
Best suited to
24V off-grid and hybrid systems, larger caravans and motorhomes with roof space to spare, shed and workshop solar, and any remote power setup where one high-output panel beats running multiple smaller ones.
Pair with: a Victron SmartSolar MPPT 100/20 or larger for a complete 24V charging system, plus a SmartSolar Pluggable Display if you want at-a-glance status without pulling out your phone.
