REDARC REDWorks Scout25 Power Panel
REDARC REDWorks Scout25 Power Panel

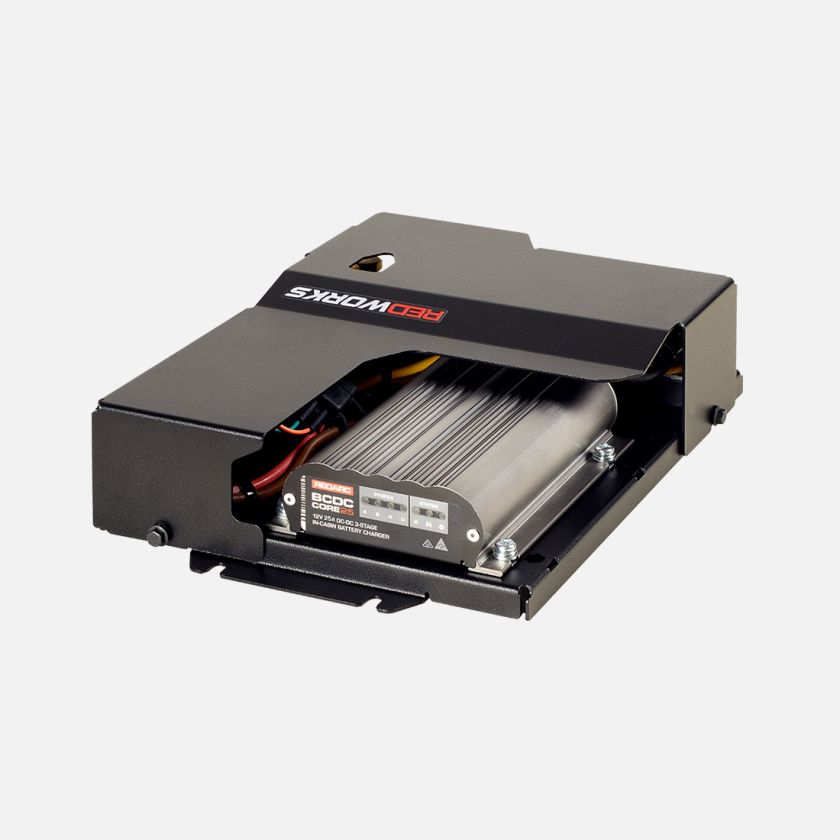

The entry point into REDARC's REDWorks pre-wired power panel range. The Scout25 combines a BCDC Core25 in-cabin DC-DC charger and a Smart Battery Monitor into a single pre-wired, pre-fused unit - no individual components to source, no wiring diagrams to follow.
Charges from the vehicle and the sun, automatically
The built-in MPPT solar regulator lets you plug in a portable or fixed solar panel via Anderson connector, and REDARC's Green Power Priority® technology draws from solar first whenever it's available - reducing the load on your alternator and saving fuel. Charges up to 25A from either source, and handles all common battery chemistries including standard and heated lithium (LiFePO₄).
Know exactly where your battery stands
The integrated Smart Battery Monitor reports real-time state of charge, remaining run time, and input/output current straight to your smartphone. LED indicators on the BCDC charger itself give a clear at-a-glance status and fault warning even without a phone in hand.
Built for tight spaces
At the size of an A4 sheet of paper, the Scout25 fits behind drawers, under seats, or anywhere a full dual battery system normally couldn't - genuine capability without the footprint.
Specifications
- Includes: BCDC Core25 in-cabin 12V 25A DC battery charger, Smart Battery Monitor
- Charge current: up to 25A (DC and solar)
- Charging: 3-stage adaptive, MPPT solar regulator, Green Power Priority®
- Battery compatibility: AGM, gel, calcium, standard and heated lithium (LiFePO₄)
- Output: 50A Anderson™ for high-draw devices (fridges, compressors, electric jacks)
- Dimensions: 330mm (L) x 235mm (W) x 76mm (H)
- Weight: 3.6kg
- Operating temperature: -15°C to 60°C
- Warranty: 2 years
Best suited to
Weekend adventurers and first-time 12V system owners who want reliable, monitored dual battery power without the complexity of sourcing and wiring individual components.
Note: REDARC recommends installation by a qualified auto electrician. This product may require additional wiring kits or a battery to complete the system - ask in-store for a complete quote.
",)
