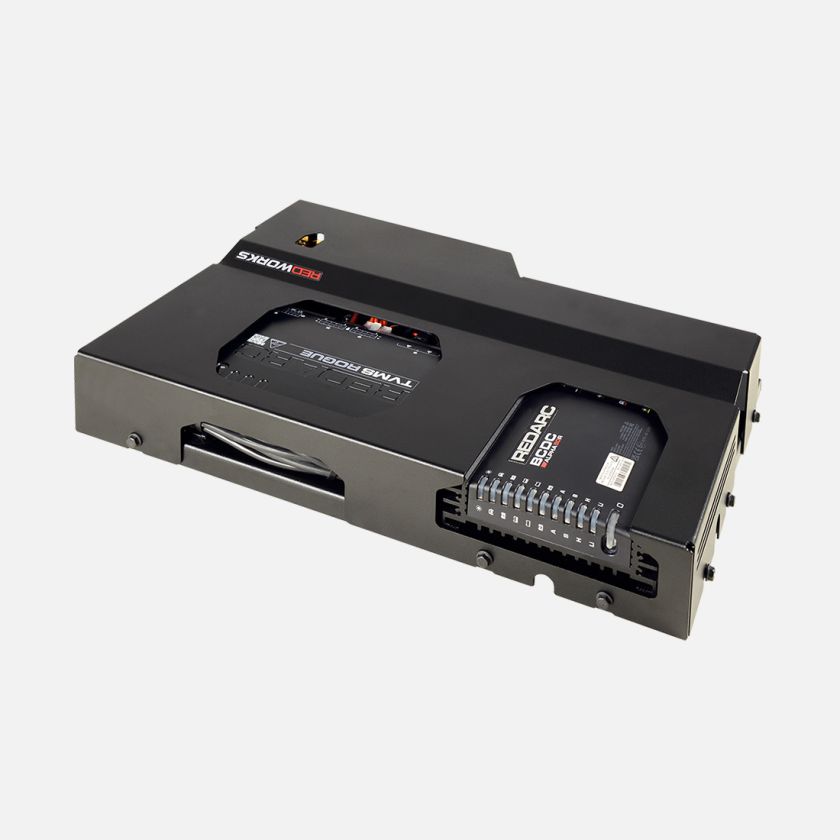

REDARC REDWorks Pioneer50 Power Panel
REDARC REDWorks Pioneer50 Power Panel
The flagship of the REDWorks range, the Pioneer50 combines the BCDC Alpha50 R battery manager with REDARC's TVMS Rogue vehicle management system and a RedVision display - genuine personalised control and automation, not just charging and monitoring.
Personalised control via RedVision
RedVision acts as the central hub for every onboard device - lights, fridges, water pumps and more - controlled from your smartphone or a wired RedVision display with programmable, single-touch icons. Design your system around up to 10 devices to suit exactly how you travel, rather than working within a fixed layout.
TVMS Rogue adds real automation
The TVMS Rogue brings two analogue sensor inputs into the panel's real-time monitoring, feeding state of charge, remaining run time, and charger performance directly into RedVision. Its smart, resettable fuses can be reactivated in seconds via the display or app - no manual diagnostics, no digging through a fuse box.
Never get stranded
The BCDC Alpha50 R's Start Battery Recovery brings a flat start battery back in 15 minutes without jumper leads, while Start Battery Charging automatically tops it up from excess solar once the auxiliary battery is full.
Charge with confidence, from two sources at once
Charges from solar and alternator simultaneously, with Green Power Priority® technology prioritising solar for maximum efficiency and reduced alternator load. The Alpha50 R adjusts its charge mode in real time to match your battery's actual condition, extending lifespan rather than running one fixed cycle regardless of need - compatible with all common battery types including standard and heated lithium, with configurable input current limiting for hybrid and EV applications.
Specifications
- Includes: BCDC Alpha50 R DC battery manager, TVMS Rogue vehicle management system, RedVision display
- Charge current: up to 50A (DC and solar, simultaneous)
- Charging: adaptive real-time battery management, MPPT solar regulator, Green Power Priority®
- Battery compatibility: AGM, gel, calcium, standard and heated lithium (LiFePO₄)
- Outputs: 10A and 50A Anderson™ SB50 connections
- Control: RedVision app and wired display, up to 10 programmable devices
- Features: Start Battery Recovery (15 min), Start Battery Charging, resettable smart fuses, configurable input current limit, OTA updates
- Warranty: 2 years
Best suited to
Travellers who want complete, automated control over their entire 12V system - lighting, fridges, pumps and accessories - from a single phone or display, not just charging and monitoring.
Note: REDARC recommends installation by a qualified auto electrician. This product may require additional wiring kits or a battery to complete the system - ask in-store for a complete quote.
",)
