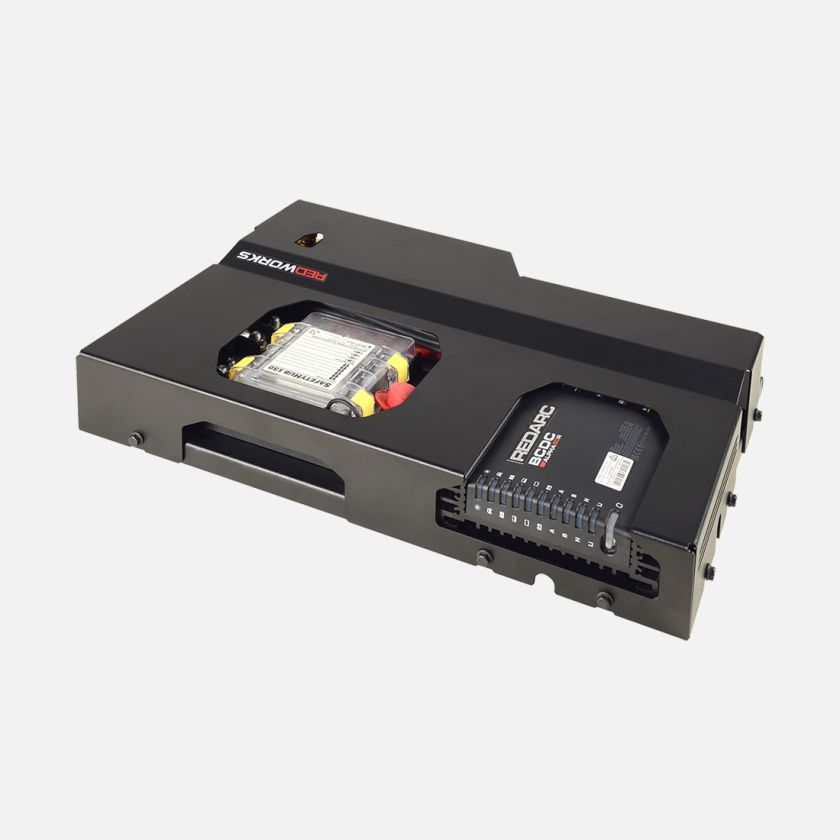

REDARC REDWorks Nomad50 Power Panel
REDARC REDWorks Nomad50 Power Panel
The highest-capacity Nomad panel, pairing the intelligent BCDC Alpha50 R battery manager with a substantial 10-way combo fuse block - built for travellers who want both serious charging capability and genuine room to expand.
A true battery manager, not just a charger
The BCDC Alpha50 R adjusts its charge mode in real time to match your battery's actual condition, maximising efficiency and extending battery lifespan rather than running a fixed charge cycle regardless of need. Charges up to 50A from the alternator and solar simultaneously, with Green Power PriorityĀ® minimising alternator load by drawing from solar first.
Never get stranded
Start Battery Recovery can bring a flat start battery back in just 15 minutes at the touch of a button - no jumper leads required - while Start Battery Charging automatically tops up the start battery with excess solar once the auxiliary battery is full.
Built to expand, with serious fuse capacity
The 10-way combo fuse block combines 6 x 30A blade fuses and 4 x 100A MIDI fuses, supporting higher-power devices alongside everyday accessories - genuine headroom for a setup that grows over time, with easier maintenance than a piecemeal fuse arrangement.
Tiered Anderson outputs
Output is split across 10A (USB sockets, lighting, pumps), 25A (large fridges, small ovens, compact compressors) and 50A (large compressors, electric jacks) Andersonā¢ SB50 connections, so each device draws through an appropriately rated circuit.
Future-ready with over-the-air updates
Compatible with all common battery types including standard and heated lithium, with configurable input current limiting suited to hybrid and electric vehicles, and over-the-air firmware updates to keep the system current.
Specifications
- Includes: BCDC Alpha50 R 12V 50A DC battery manager, Smart Battery Monitor, 10-way combo fuse block
- Charge current: up to 50A (DC and solar, simultaneous)
- Charging: adaptive real-time battery management, MPPT solar regulator, Green Power PriorityĀ®
- Battery compatibility: AGM, gel, calcium, standard and heated lithium (LiFePOā)
- Outputs: 10A, 25A and 50A Andersonā¢ SB50 connections
- Fuse block: 10-way combo (6 x 30A blade, 4 x 100A MIDI)
- Features: Start Battery Recovery (15 min), Start Battery Charging, configurable input current limit, OTA updates
- Dimensions: 465mm (L) x 308mm (W) x 79mm (H)
- Weight: 7.1kg
- Operating temperature: -20Ā°C to 60Ā°C
- Warranty: 2 years
Best suited to
Travellers staying off-grid longer or running more accessories who want the Nomad range's expandability paired with the Alpha50 R's smarter, more capable charging.
Note: REDARC recommends installation by a qualified auto electrician. This product may require additional wiring kits or a battery to complete the system - ask in-store for a complete quote.
",)
