OEX 5MM SINGLE CORE AUTOMOTIVE CABLE
Regular price
$2.20
inc GST
Couldn't load pickup availability
5mm SINGLE CORE AUTOMOTIVE CABLE
Rated to approx 35 Amps over 5mt
Rated to approx 30 Amps over 10mt
Rated to approx 30 Amps over 10mt
The 5mm SINGLE core automotive cable is the perfect option for running to fuse boxes, or accessory sockets. Rated at approx. 35 Amps over a 5mt distance.
| Type | ELECTRICAL CABLE |
| Brand | OEX |
| Unit of Measure | ROLL |
| Description | OEX 5mm Single Core Automotive Cable |
| Warranty | One Year |
| Conductor Strand Diameter | .32mm |
| Number of Conductor Strands | 41 |
| Trace Colour | No Trace |
| Conductor Cross Section | 2.9mm2 |
| Industry Known Size | 5mm |
| Note | Oxygen Free Copper |
| Weight | .99kg |
| Cable Size | 5mm |
| Cable Type | Standard |
| Gauge | 13 |
| Item Type | Cable |
| NZ Code | 154 |
| Environmental | UV Stabilized |

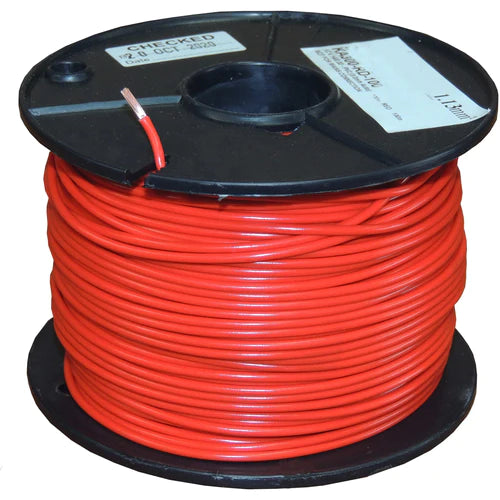

| Cable Colour | Red |
| Temp Rating | V90 (90C) |
| Voltage Rating | Up to 110V |
| Conductor Material | Copper |
| Compliance | AS/NZ 3808:2000 & RoHS |
| Insulation Type | PVC |
| Features | • OEX Single Core Automotive Cable • Colour: Red • Cable diameter: 5mm • Amp rating: 20A at 30°C • Oxygen Free High Conductivity Copper • UV Stabilised and ROHS approved • Temp rating: V90 (90°C) • All Australian premium quality copper • 100% Australian owned and made |
