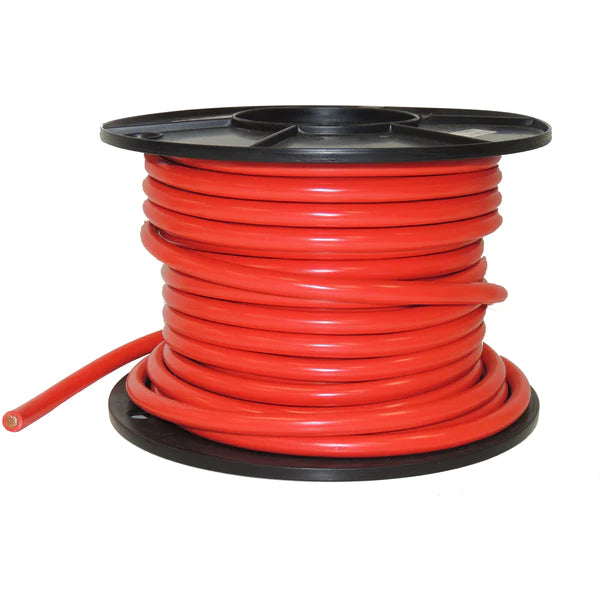

OEX 0 B&S (50mm) SINGLE CORE BATTERY CABLE
Regular price
$23.00
inc GST
Couldn't load pickup availability
50mm (0B&S) SINGLE CORE AUTOMOTIVE CABLE
Rated to approx 246 Amps over 5mt continuous @ 30degrees
Rated to approx 190 Amps over 10mt continuous @ 30degrees
Rated to approx 190 Amps over 10mt continuous @ 30degrees
The 50mm SINGLE core automotive cable is the perfect option for linking batteries / wiring to heavy inverters
| Type | BATTERY CABLE |
| Brand | OEX |
| Unit of Measure | ROLL |
| Description | OEX 0 B&S Single Core Battery Cable |
| Warranty | One Year |
| Conductor Strand Diameter | .32mm |
| Nominal Power Rating (Amp) | 246 |
| Number of Conductor Strands | 700 |
| Conductor Cross Section | 49.49mm2 |
| Industry Known Size | 0 B&S |
| Note | UV Stabilized |
| Cable Size | 12.5mm |
| Gauge | 0 B&S |
| NZ Code | 158 |
| Sheath Colour | Red |
| Cable Colour | Red |
| Voltage Rating | Up to 110V |
| Conductor Material | Copper |
| Compliance | AS/NZ 3808:2000 & RoHS |
| Insulation Type | PVC |
| Features | • OEX 0 B&S Single Core Battery Cable • Colour: Red • Cable Length: 100 metres • Suitable for voltages up to 120V • Oxygen Free High Conductivity Copper • UV Stabilised and ROHS approved • Temp rating: V90 (90°C) • All Australian premium quality copper • 100% Australian owned and made |
