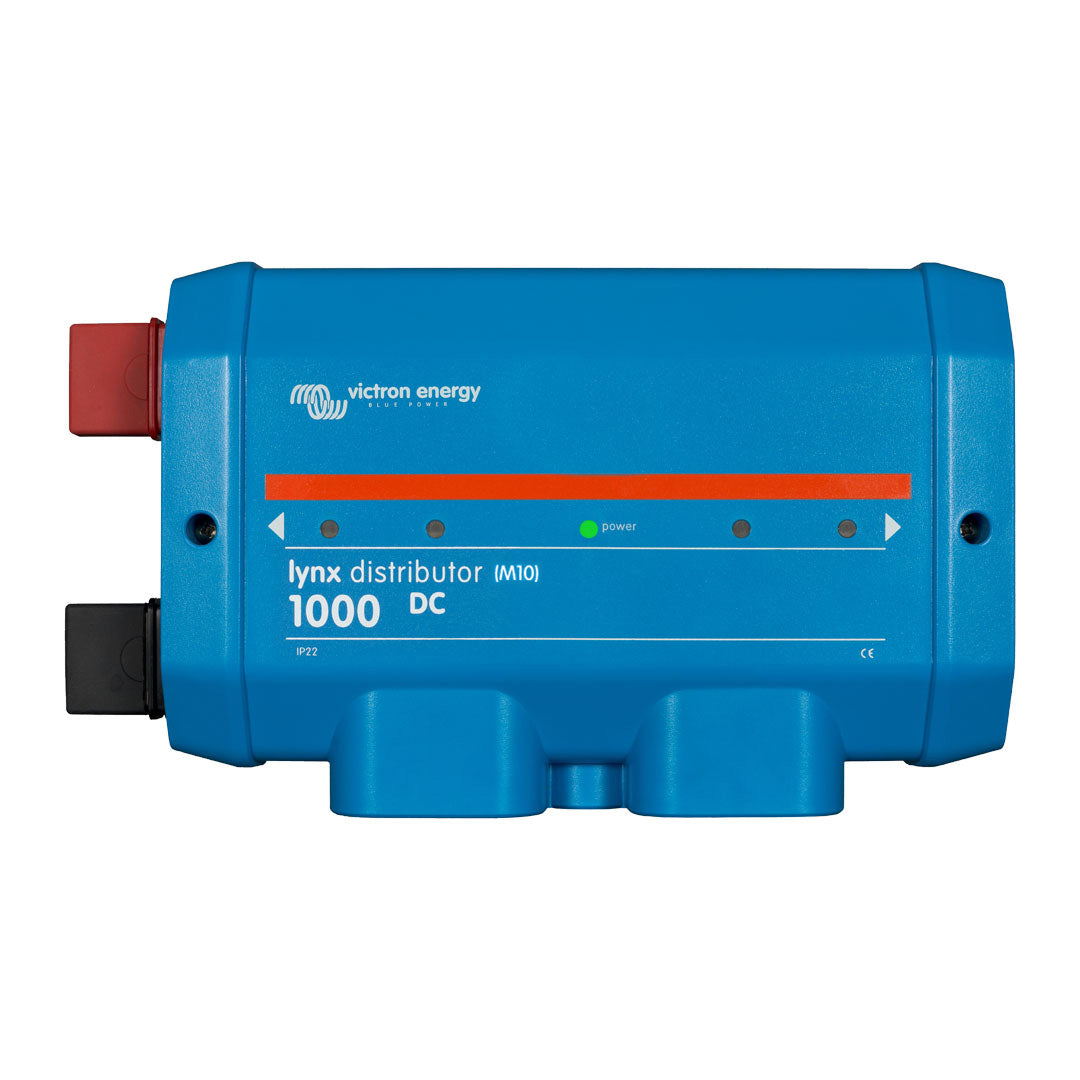

Victron Lynx Distributor (M10)

Victron Lynx Distributor (M10)

A modular DC busbar system that brings order to multi-circuit battery wiring - four fused positive connections, four negative connections, and live fuse-status monitoring, all in a single compact module.

What it actually solves

Rather than running individual fuses and cable lugs to a generic busbar, the Lynx Distributor gives you a clean, modular positive and negative busbar with built-in fuse protection on each of four positive circuits, plus a dedicated ground connection on the negative side. It's part of Victron's wider Lynx Distribution System, which can be expanded by connecting multiple Lynx Distributor and Lynx Power In modules together.

Fuse monitoring that actually tells you something

Each of the four fuse positions has a status LED. When paired with a Lynx Shunt VE.Can or Lynx Smart BMS, the system reports fuse status (and battery monitoring data) to a connected GX device - so a blown fuse shows up on your monitoring screen rather than requiring a manual check under the bonnet or in the canopy.

Built for serious current

The M10 busbar variant is rated to 1000A continuous, supporting 12V, 24V or 48V systems with reverse polarity protection on the RJ10 data/power connection.

Specifications

• Voltage range: 9-60VDC
• Supported system voltages: 12V, 24V or 48V
• Current rating: 1000A DC continuous
• Busbar: M10 (fuses M8)
• Reverse polarity protection: Yes (busbar connections)
• Power consumption: Maximum 100mA with all LEDs illuminated
• Enclosure: ABS, 290 x 170 x 80mm
• Weight: approximately 2.2kg
• Power and data connection: 40cm RJ10 cable (included)

Best suited to

Caravan, marine, and off-grid lithium installations where you're running multiple fused circuits off a single battery bank and want clean, modular, monitorable distribution rather than a tangle of individual fuse holders.

Note: fuse status LEDs require a connected Lynx Shunt VE.Can or Lynx Smart BMS to function.
