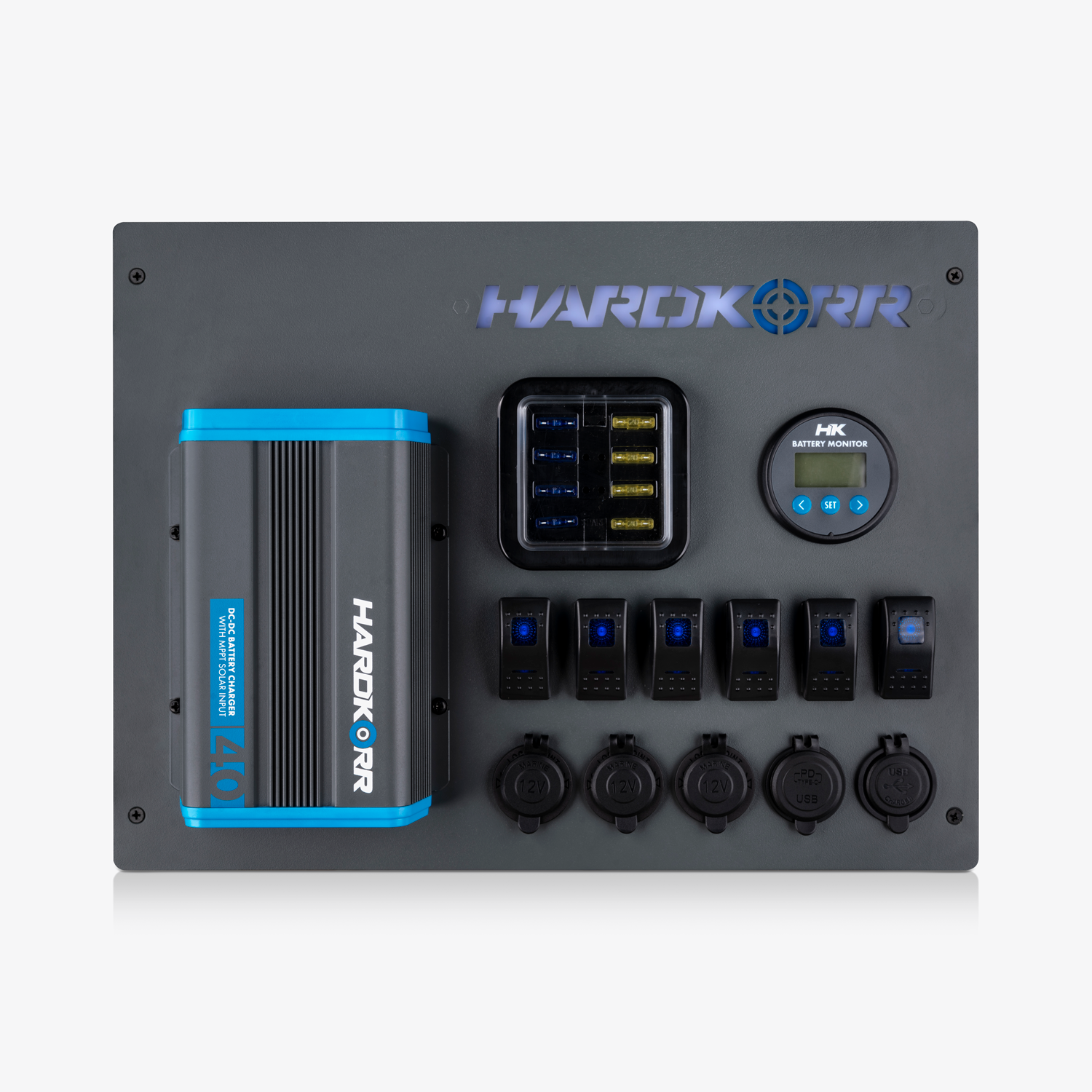

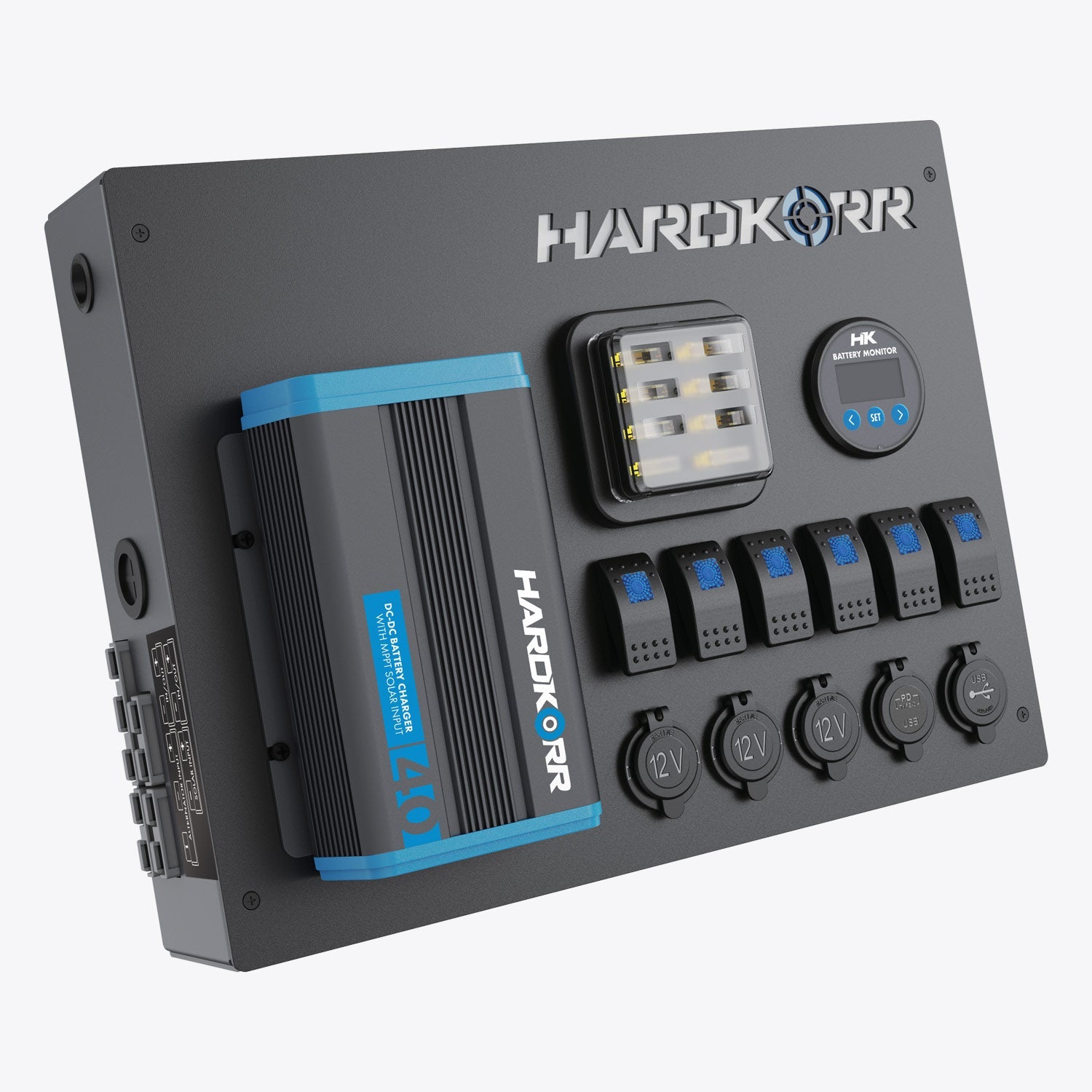

Hardkorr 12V Control Hub with 40A DC-DC Charger
High-Output 12V Power Management for Serious Tourers
The Hardkorr 12V Control Hub with 40A DC-DC Charger is the heavy-duty version of Hardkorr's best-selling power panel — designed for builds with larger lithium battery banks, high solar input, or demanding accessory loads. With a 40A DC-DC charger and MPPT solar regulator built in, this hub can push more charge into your auxiliary battery faster, meaning less time waiting and more time adventuring.
Like the 25A model, it features 17 inputs and outputs, a 500A battery monitor with shunt, 6 backlit rocker switches, full USB charging suite, Anderson plugs, and a pre-wired fuse block. The entire unit is pre-wired and fully fused — mount it, hook up your accessories, and you're ready to roll.
Key Features
- 40A DC-DC Charger with MPPT Solar Regulator — Higher output for faster charging of large lithium or AGM banks — compatible with LiFePO₄, AGM, SLA, Gel, Calcium, 12V & 24V
- Battery Monitor with 500A Shunt — Real-time voltage, current draw, state of charge, and time-remaining display
- 6x Backlit Rocker Switches — Take control of your lights, fridge, water pump, diesel heater, and more
- 4x Anderson-style plugs — 1x pre-wired alternator input, 1x pre-wired solar input, 2x 30A accessory outputs
- 4x USB ports — 2x USB-A, 1x Quick-Charge 3.0 USB-A, 1x USB-C
- 3x 12V Cigarette Sockets
- Fuse block with LED fault indicator — 6 fuse ports (3×15A + 3×20A) with spare fuse storage
- Heavy-duty grey powder-coated aluminium housing
- Pre-drilled mounting holes for easy installation in canopies, trailers, and vans
- Comes completely pre-wired and fused — just connect and go
- 2-Year Replacement Warranty
Specifications
| SKU | HKPPWRHUB40 |
|---|---|
| Dimensions | 400(W) × 300(H) × 125(D) mm |
| Weight | 4.9 kg |
| DC-DC Output | 40A max |
| DC Input Voltage | 9–32V |
| Solar Input Voltage | 10–32V |
| Battery Compatibility | 12/24V LiFePO₄, SLA, AGM, Gel, Calcium |
| Battery Monitor Voltage Range | 0–100V |
| Battery Monitor Current Range | 0–500A (500A shunt included) |
| Fuses Included | 3×15A + 1 spare / 3×20A + 1 spare |
| Construction | Grey powder-coated aluminium |
| Total I/O | 17 inputs/outputs |
| Warranty | 2-Year Replacement Warranty |
Who Needs the 40A Over the 25A?
If you're running a 100Ah+ lithium battery, a large solar array (200W+), or frequently doing long-distance runs where faster alternator charging matters — the 40A DC-DC is the better choice. It'll fully charge a 100Ah LiFePO₄ roughly 40% faster than the 25A model when driving.
Perfect For

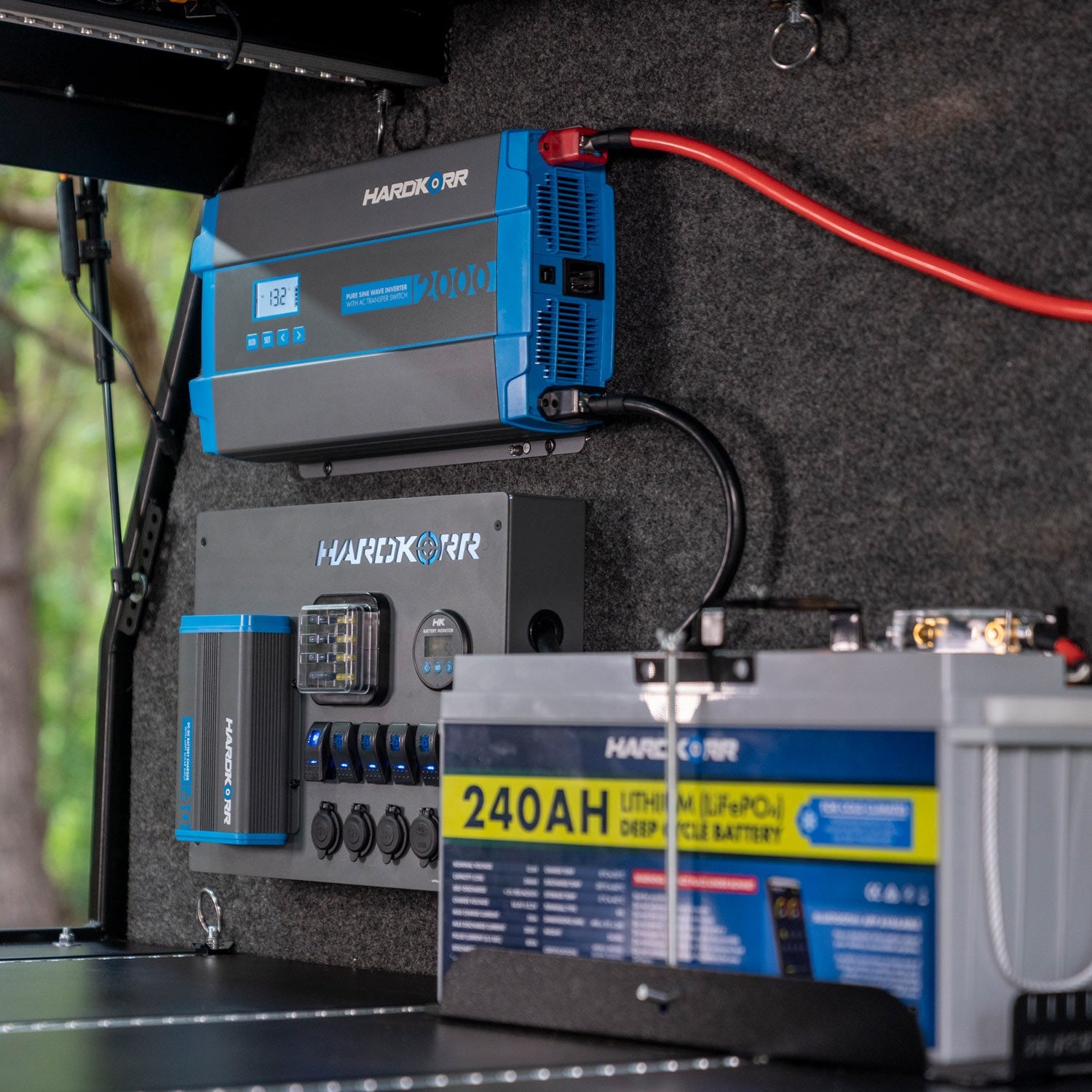

Premium canopy builds, caravan and camper trailer fitouts, van conversions, and serious off-road touring rigs. Suits Toyota LandCruiser 200 Series, LandCruiser 79 Series, HiLux, Nissan Patrol, Ford Ranger, Isuzu D-Max, RAM 1500, Jeep Wrangler, Mitsubishi Pajero Sport, and all expedition-spec 4WDs.
