Hardkorr 1000W Inverter Cable Kit for Hardkorr Battery Box
Hardkorr 1000W Inverter Cable Kit for Hardkorr Battery Box

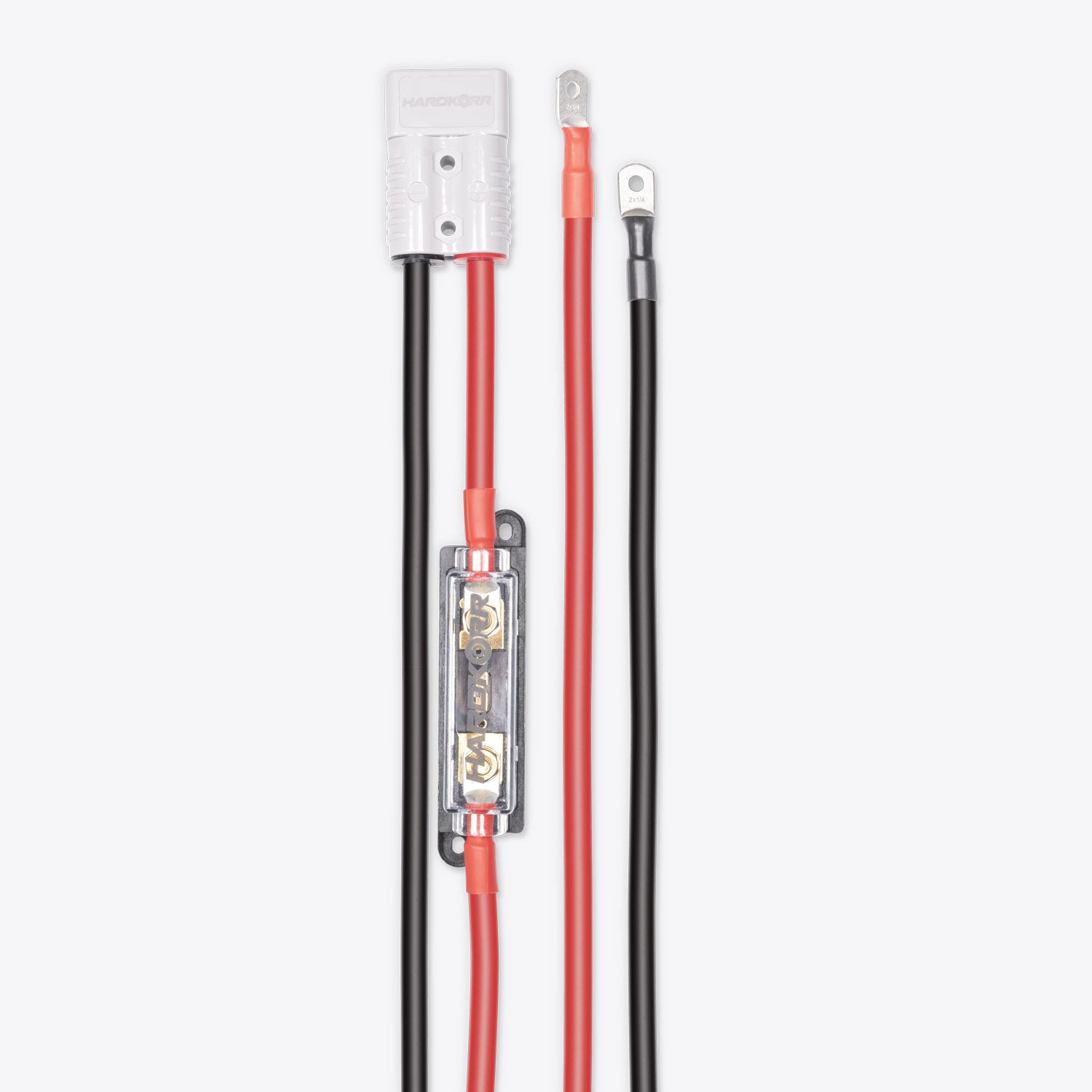

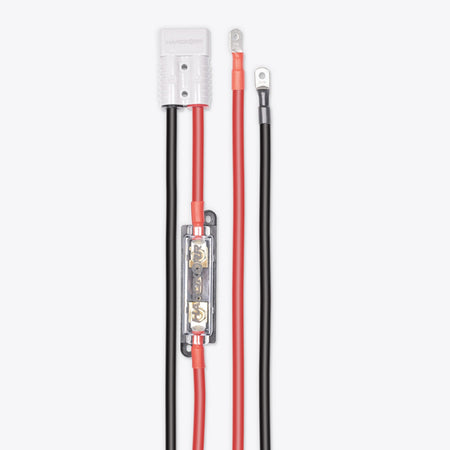

A plug-and-play cable kit designed to hook straight into a jumbo Anderson-style plug, purpose-built to connect an inverter to a Hardkorr battery box without re-terminating cable or sourcing separate connectors.
Sized correctly, connector ready to go
At 2AWG (33.6mm²) and 750mm long, this cable kit is rated for inverters up to 1000W, with no meaningful voltage drop between battery box and inverter even under load. One end terminates in pre-crimped M6 ring terminals for the inverter side; the other in a 175A Anderson-style plug that connects directly to a Hardkorr battery box.
Protected against overload
The positive lead includes an in-line 150A ANL mega fuse, guarding against overload and short-circuit faults the same way Hardkorr's other inverter cable kits do.
Specifications
- Length: 75cm
- Cable gauge: 2AWG / 33.6mm²
- Fuse size: 150A ANL fuse
- Connectors: M6 ring terminal, 175A Anderson-style plug
- Insulation: PVC
- Conductor: Bare copper
- Heat resistance: up to 105°C
- Warranty: 1 year replacement
Best suited to
Connecting a Hardkorr 1000W inverter directly to a Hardkorr battery box via its jumbo Anderson-style plug, without needing to terminate cable yourself.
",)
