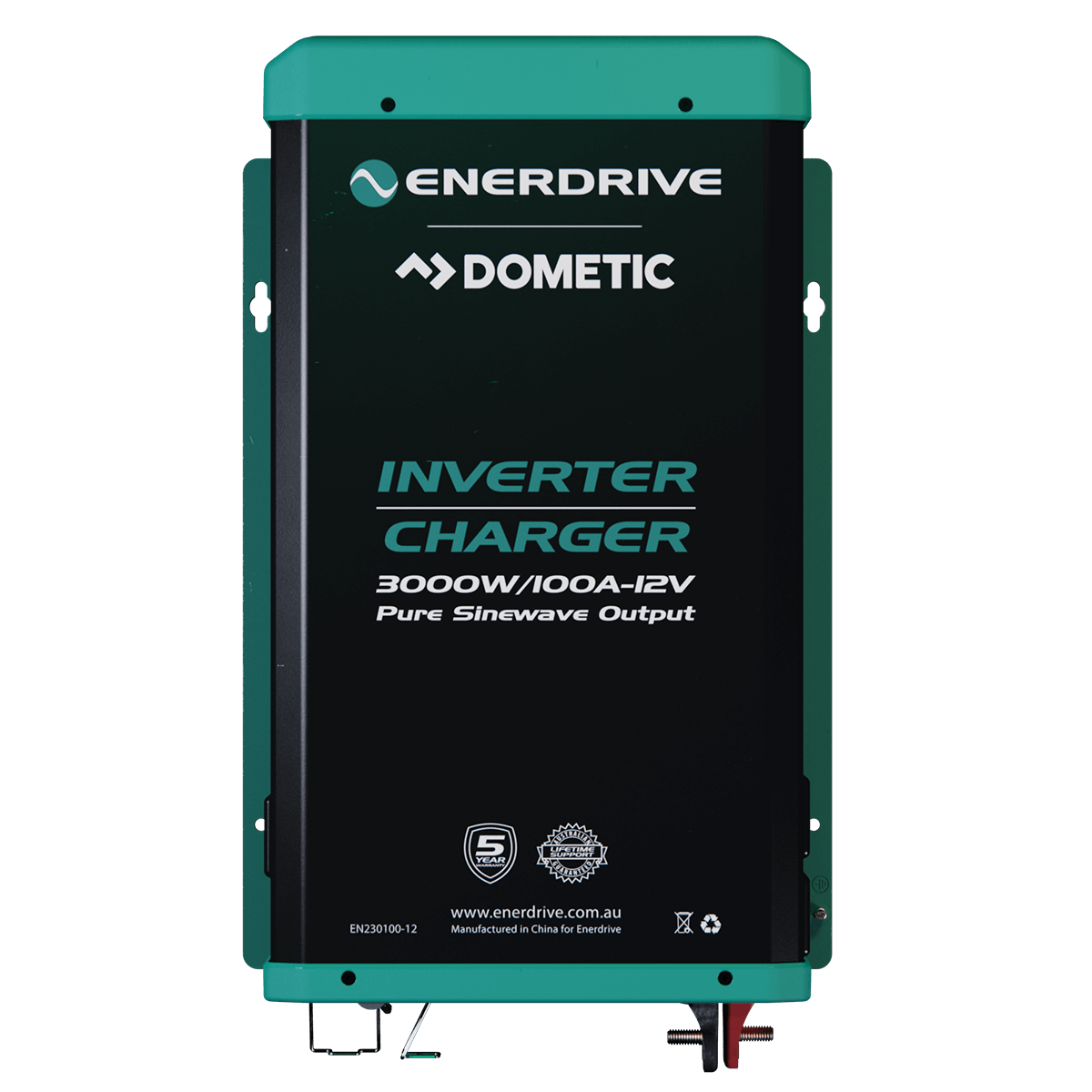

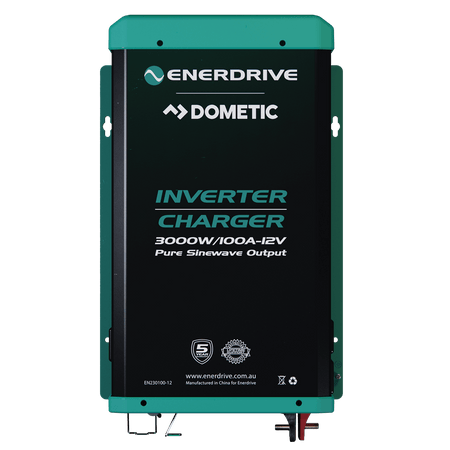

Enerdrive 3000W/100A 12V Inverter Charger
Features
12V 3000W/100A Inverter-Charger
With our state of the art, easy to use design, this product will offer you True Sinewave AC power for your RV, Marine, 4WD and remote power needs, whilst also recharging your battery automatically when 240V AC is available.
The Sinewave Inverter-Charger can run multiple 240V AC-powered appliances when you need AC power off-grid. The multi-stage battery charger offers charging profiles for multiple different types of batteries. The built-in transfer switch will automatically switch between 240V mains supply when available and battery power when 240V mains is not available.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The 12V 3000W/100A Inverter-Charger is suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more. All ENERDRIVE | DOMETIC branded products are covered by our extensive 5 Year warranty.
12V 3000W/100A Inverter-Charger Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Quiet Operation
- Compact Size for Easy Installation
- Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
- Multi-stage charging ensures batteries are charged to their manufacturer’s recommendations.
- Lightweight compact design
- Built-in load sense to mi
Specifications
| Model – Description | EN220080-12 | EN230100-12 |
|---|---|---|
| Charger Output Current (Maximum) | 80A | 100A |
| AC Output Power | 2000W | 3000W |
| AC Output Current | 8.7A | 13.0A |
| AC Output Voltage | 230VAC | |
| AC Output Waveform | True Sinewave (<3% THD) | |
| Nominal DC Input Voltage | 12.5Vdc | |
| DC Input Voltage operating range | 10.5 – 16.5 VDC | |
| Under Voltage Alarm | 11.0 / 12.5 VDC | |
| Under Voltage Shutdown | 10.5 / 12.0 VDC | |
| Over Voltage Shutdown | 16.5 VDC | |
| AC Transfer Switch | ||
| Transfer Time | <30ms | |
| Transfer Relay Rating | 16A | |
| AC Input socket IEC-C20 | 16A Heavy Duty Connector | |
| AC Output socket IEC-C19 | 16A Heavy Duty Connector | |
| Safety and Environmental | ||
| Conformance | LVD: EN/IEC 62040-1, IEC 61558-2-16 | |
| Agency Markings | CE | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 60°C | |
| Relative Humidity | 5 - 90% non-condensing | |
| Operating Altitude | Up to 3000m above sea level | |
| Weights and Dimensions | ||
| Weight | 8kg | 10.4kg |
| Dimensions (W x H x D) | 440.7W x 307H x 108Dmm | 307W x 533H x 108Dmm |
| Warranty | 5 Years | |
Note: Specifications subject to change without notice.
