ATG 12V 314Ah Lithium LiFePO4 Battery (Compact Design)

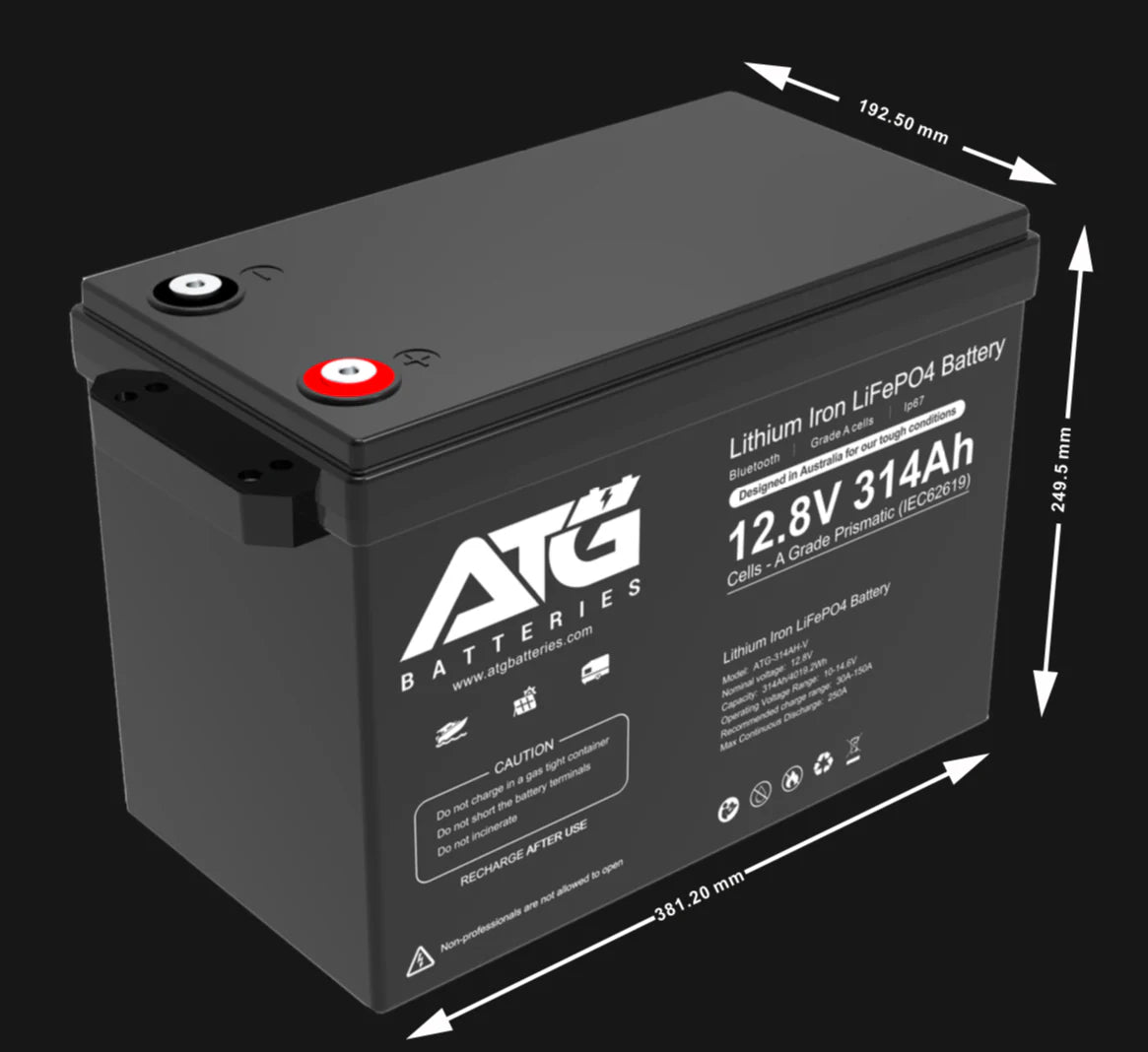

Dimensions: 381 × 192 × 250 mm | Weight: 26.6 kg | IP67 Rated

More Power. Smaller Design.

The new ATG 12V 314Ah Lithium LiFePO4 Battery packs serious energy storage into a compact, IP67-rated case, making it one of the most space-efficient lithium batteries in its class. Built with A-Grade Prismatic Cells (IEC62619 certified) and managed by a Jiabaida BMS with Bluetooth monitoring, it delivers reliable performance in even the harshest Australian conditions.

Perfect for 4WD setups, marine systems, caravans, and off-grid solar storage, this battery combines rugged durability with maximum usable power — all backed by a 4-year Australian warranty.

Key Features

• ✅ 314Ah Capacity – Huge storage in a smaller footprint

• ✅ Compact Case Design – 381 × 192 × 250 mm with IP67 water & dust resistance

• ✅ A-Grade Prismatic Cells – IEC62619 certified for safety and long cycle life

• ✅ Jiabaida BMS with Bluetooth – Smart monitoring and protection in real time

• ✅ 250A Max Continuous Discharge – Handles high-demand appliances and inverters

• ✅ 4-Year Australian Warranty – Local support for long-term confidence

• ✅ Lightweight for Capacity – Just 26.6 kg for easier installation

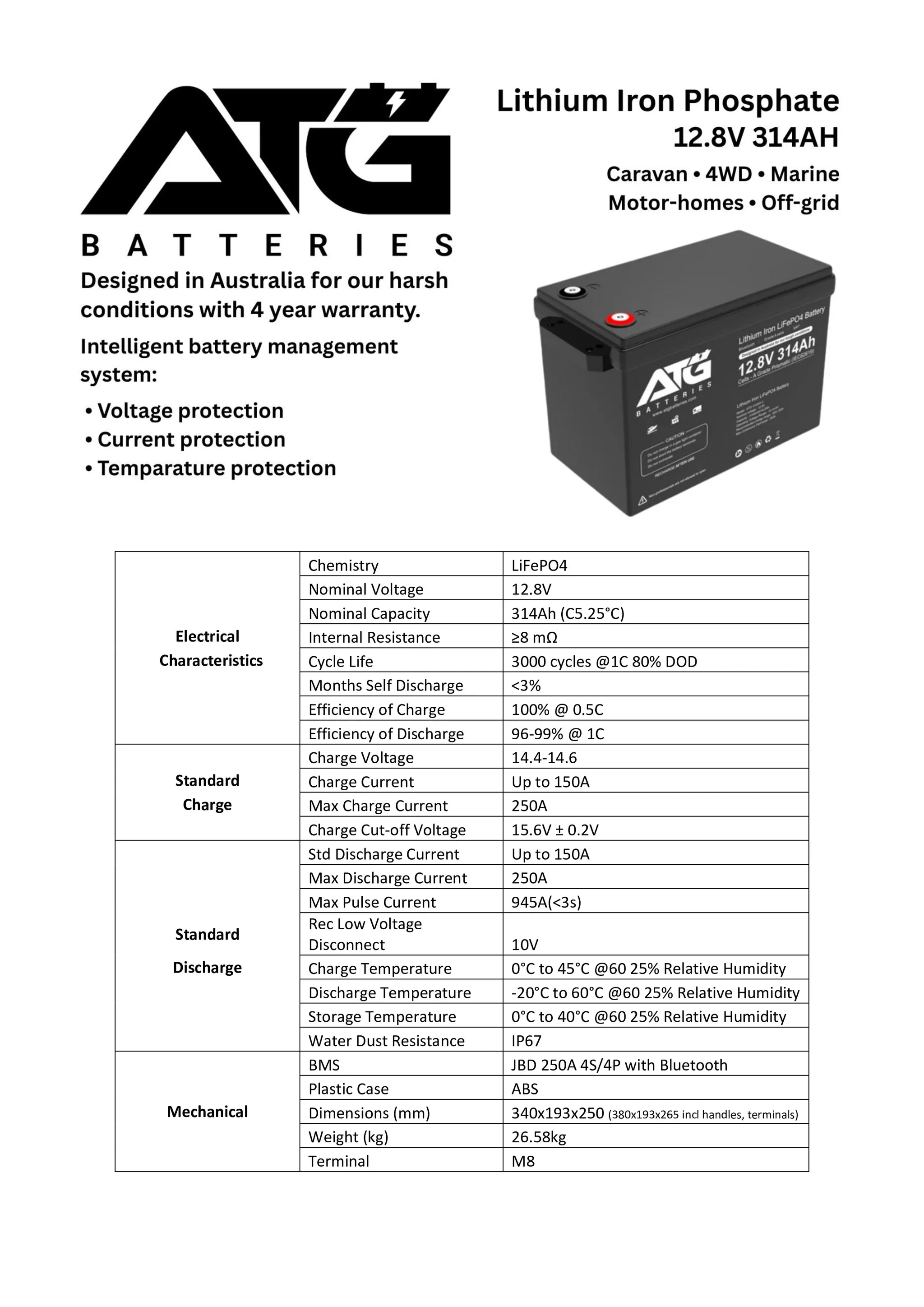

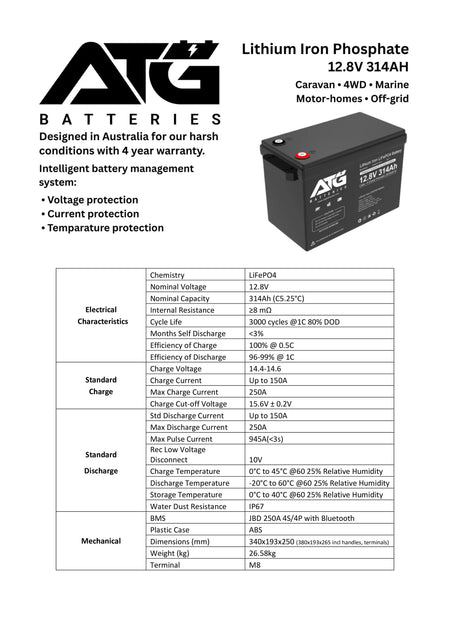

Technical Specifications

• Nominal Voltage: 12V

• Capacity: 314Ah

• Cell Type: A-Grade Prismatic Cells (IEC62619 certified)

• Battery Management System (BMS): Jiabaida with Bluetooth monitoring

• Charge Voltage: 14.4V – 14.6V

• Max Continuous Discharge Current: 250A

• Case Dimensions: 381 × 192 × 250 mm

• Ingress Protection: IP67 (dust & water resistant)

• Weight: 26.6 kg

• Warranty: 4 years (Australia-based support)

Built Tough for Australian Conditions

With its rugged IP67 casing and compact footprint, the ATG 12V 314Ah Lithium Battery is engineered for reliability where it matters most. Whether powering a remote campsite, keeping marine systems running, or driving energy-hungry off-grid setups, this battery gives you long-lasting performance in a size that’s easy to fit and install.

🔋 Upgrade your power storage today.
Contact us now to order the ATG 12V 314Ah Lithium Battery or speak to our team about the right setup for your needs.
