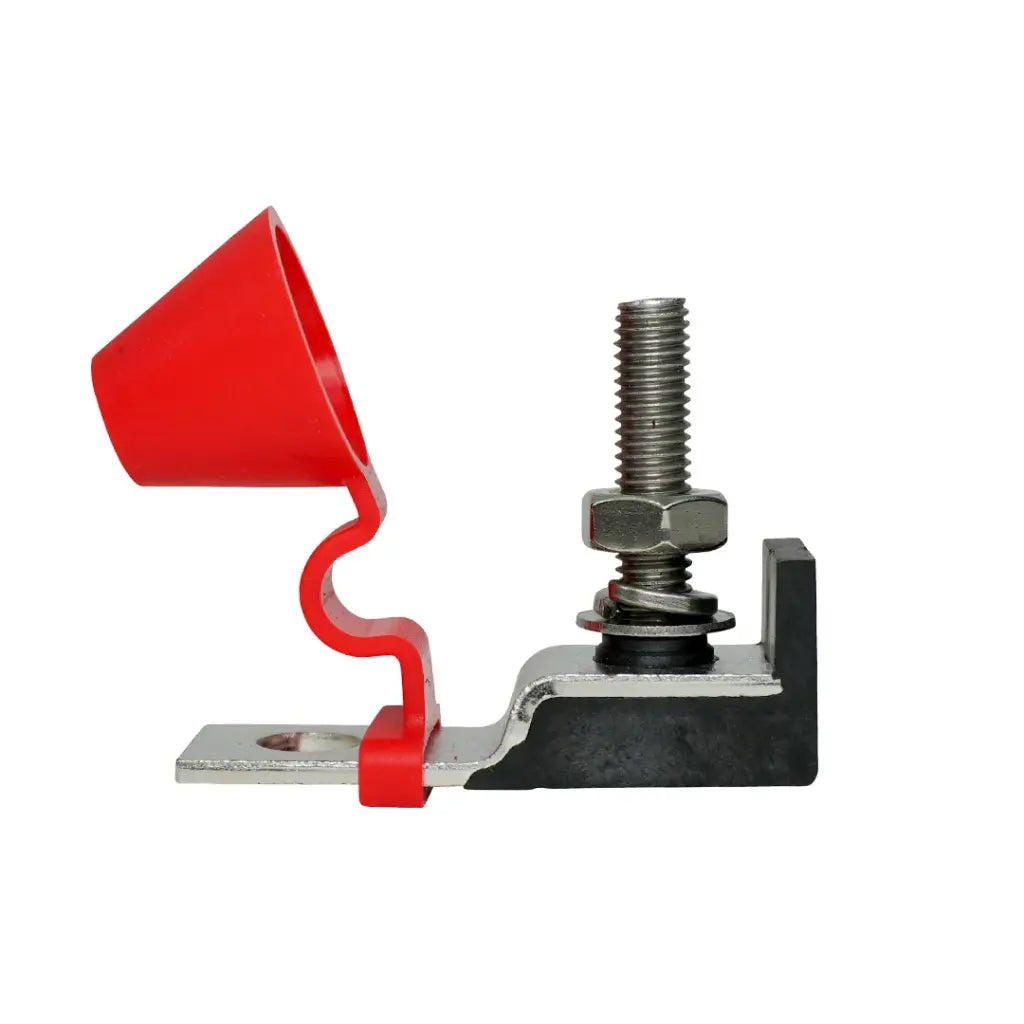

The Alvolta Single Battery Terminal Fuse Holder (MRBF) mounts an MRBF terminal fuse directly onto your battery post and gives you one protected, IP66-sealed M8 output stud. It is the neatest way to fuse the main positive feed at the source — no in-line holder dangling off the terminal, no exposed high-current connections.
Features
- Accepts the full Alvolta MRBF battery terminal fuse range (30A - 300A)
- M8 stainless steel terminal post for a secure, low-resistance output
- Sealed protective cover included
- IP66 rated and ignition protected — safe in battery compartments
- Maximum voltage 58V DC, maximum current 300A
- Compact single-output design for tight battery boxes
- Fuse not included — choose the MRBF rating that protects your cable
Where to use it
Alvolta fuse holders are designed to hold fuses securely in high-current applications, which makes them ideal for battery and alternator connections and other heavy-gauge cables requiring ultra-high protection. Typical uses include dual-battery systems, lithium house banks, inverter feeds, DC-DC charger inputs and marine installations.
- SKU: ALV-BTFH1
- Outputs: 1 x M8 stainless steel stud
- Max current: 300A
- Max voltage: 58V DC
- Dimensions: 61.9mm (L) x 20mm (W) x 46.5mm (D)
- Weight: 0.07kg
- Compliance: SAE J1171, IP66 rated
- Warranty: 3 years
Pairs well with
The Alvolta Battery Terminal Fuse (MRBF) range — 100A, 150A, 200A, 250A and 300A all in stock.
Alvolta is Australian-owned and operated, building precision-engineered 12V and 24V DC components made to handle harsh Australian conditions. Available now from Townsville Wholesale Batteries — in stock in Townsville with fast delivery Australia-wide.
