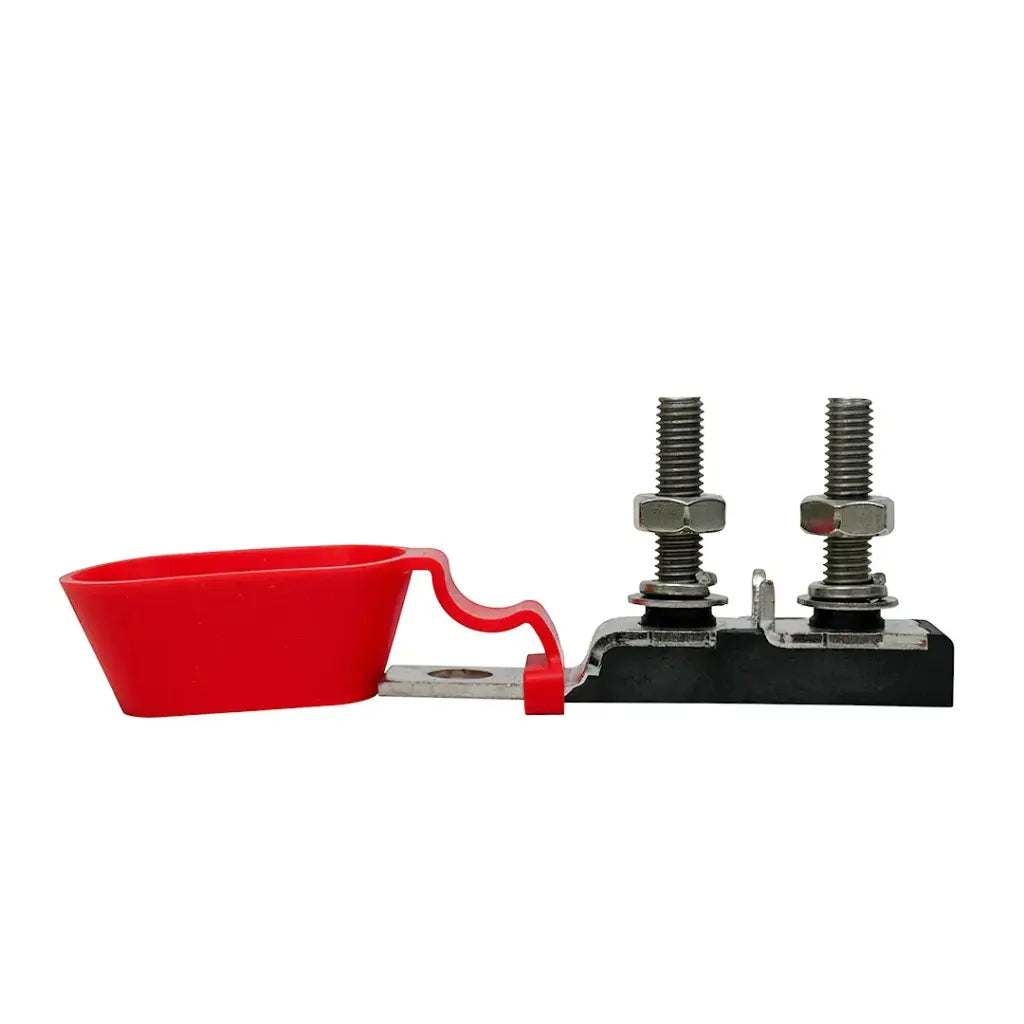

The Alvolta Dual Battery Terminal Fuse Holder (MRBF) mounts two MRBF terminal fuses on a single battery post, giving you two independently fused M8 outputs from one connection. Run your inverter on one fuse and your DC-DC charger or distribution busbar on the other — each protected at the correct rating, all sealed under one IP66 cover.
Features
- Two independently fused circuits from a single battery terminal
- Accepts the full Alvolta MRBF battery terminal fuse range (30A - 300A)
- M8 stainless steel terminal posts for secure, low-resistance outputs
- Sealed protective cover included
- IP66 rated and ignition protected — safe in battery compartments
- Maximum voltage 58V DC, maximum current 300A
- Fuses not included — choose ratings that protect each cable
Where to use it
Alvolta fuse holders are designed to hold fuses securely in high-current applications, which makes them ideal for battery and alternator connections and other heavy-gauge cables requiring ultra-high protection. The dual version saves space and terminal clutter in dual-battery systems, lithium house banks, canopy and caravan builds, and marine installations where two heavy feeds leave the same battery.
- SKU: ALV-BTFH2
- Outputs: 2 x M8 stainless steel studs
- Max current: 300A
- Max voltage: 58V DC
- Dimensions: 88.5mm (L) x 20mm (W) x 46.5mm (D)
- Weight: 0.14kg
- Compliance: SAE J1171, IP66 rated
- Warranty: 3 years
Pairs well with
The Alvolta Battery Terminal Fuse (MRBF) range — 100A, 150A, 200A, 250A and 300A all in stock.
Alvolta is Australian-owned and operated, building precision-engineered 12V and 24V DC components made to handle harsh Australian conditions. Available now from Townsville Wholesale Batteries — in stock in Townsville with fast delivery Australia-wide.
