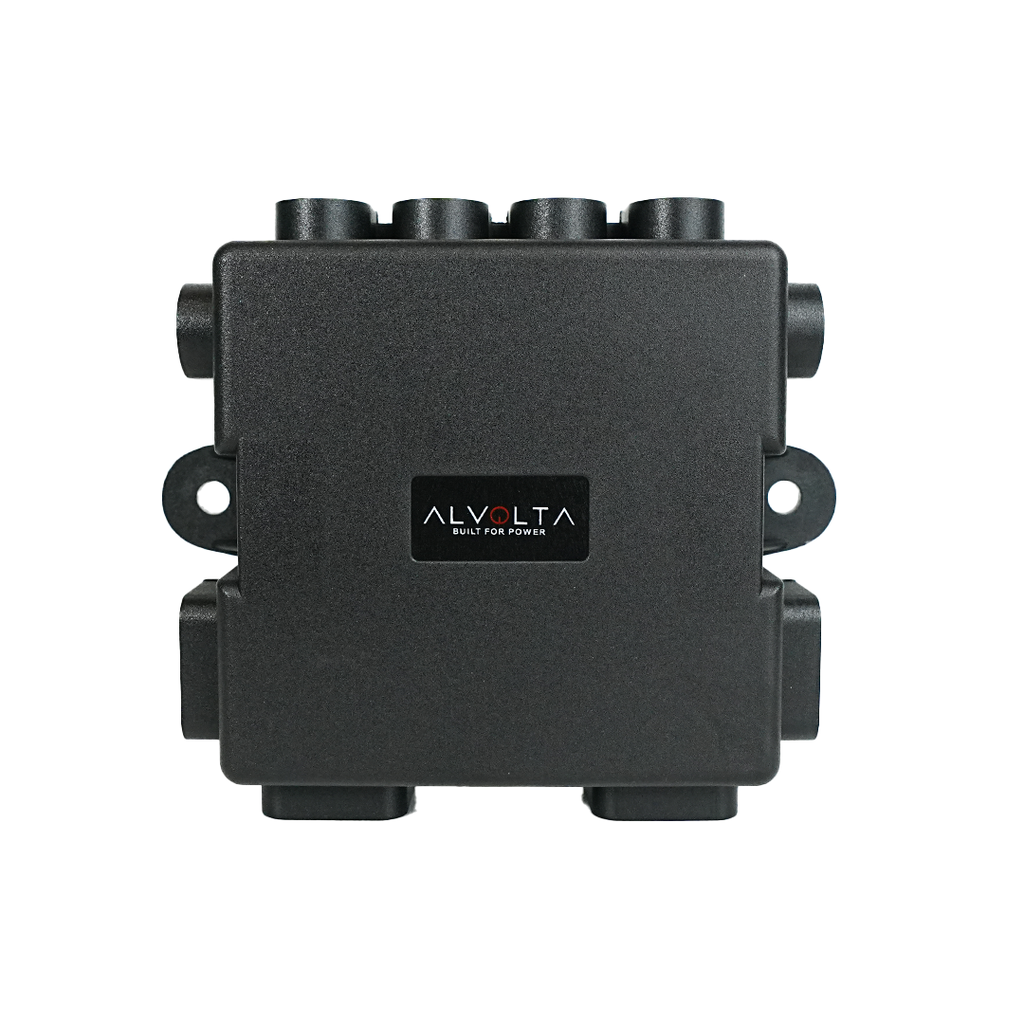

The Alvolta Distribution Midi Fuse Box takes one protected feed from your battery and splits it into four individually fused accessory circuits — the clean, compliant way to wire a fridge, lighting, water pump, charging ports and other loads without a tangle of in-line fuse holders behind the panel.
Features
- Central power distribution box for 12V and 24V systems
- 4-way AMI/Midi fuse busbar for individual circuit protection
- 1-way AMG/Mega busbar for the main input feed
- Combined 180A maximum continuous rating
- Sealable protective cover keeps dust, moisture and stray tools out
- Compact footprint for tight canopy, van and under-seat installs
- Fuses not included — choose the AMI/Midi ratings your circuits need
Where to use it
The Alvolta distribution box consolidates multiple accessory wiring connections so protected power comes from a single source such as your auxiliary battery. It is ideal for mobile setups — 4x4s, campervans, caravans and boats — where you need to safely manage and distribute power to fridges, lights, water pumps and charging ports from one tidy, serviceable point.
- SKU: ALV-514D
- System voltage: 12V - 24V DC
- Outputs: 4 x AMI/Midi fused circuits
- Input: 1 x AMG/Mega fused feed
- Max continuous rating: 180A combined
- Dimensions: 116mm (L) x 94mm (W) x 36mm (H)
- Compliance: CE, RoHS
- Warranty: 3 years
Pairs well with
Alvolta AMI/Midi fuses (30A to 125A) and Alvolta AMG/Mega fuses, plus Alvolta M8 busbars for the negative side.
Alvolta is Australian-owned and operated, building precision-engineered 12V and 24V DC components made to handle harsh Australian conditions. Available now from Townsville Wholesale Batteries — in stock in Townsville with fast delivery Australia-wide.
