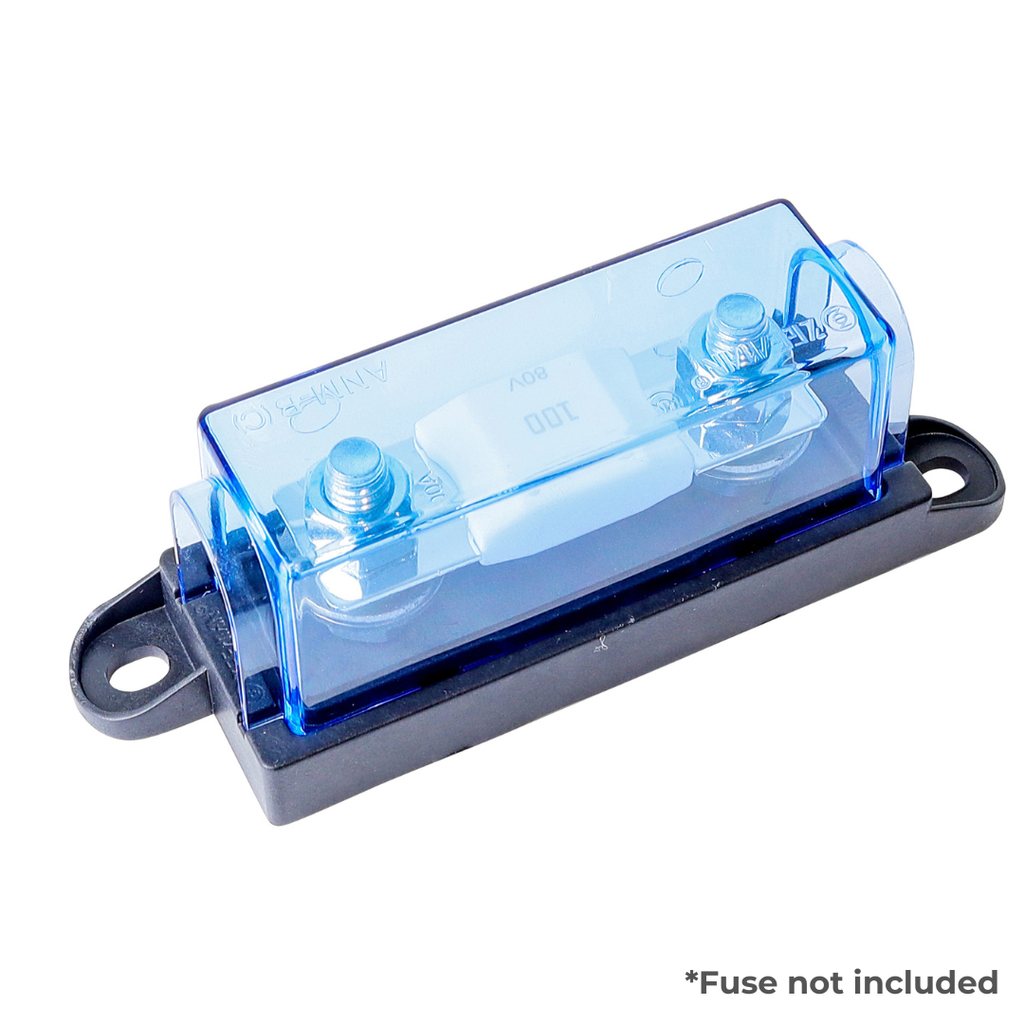

The Alvolta AMG/Mega Fuse Holder with Cover is a heavy-duty, panel-mount holder for AMG (Mega) bolt-down fuses, rated to 500A continuous. It is the standard way to protect the main positive feed between a battery, an alternator, an inverter or a DC-DC charger — the high-current cable that must never be left unfused.
Features
- Suits AMG / Mega bolt-down fuses up to 500A
- M8 stainless steel terminal posts for secure, low-resistance connections
- Removable protective cover to prevent accidental shorts
- PA66 + 30% glass-fill housing — high stiffness and impact resistance
- Thermal and flame retardant construction
- Two M8 mounting holes for solid chassis or panel mounting
- Maximum voltage 32V DC
Where to use it
Alvolta fuse holders are built to hold fuses securely in high-current applications, which makes them ideal for battery and alternator connections and other heavy-gauge cables needing ultra-high protection. Common in dual-battery builds, caravan and canopy 12V systems, inverter feeds and marine installations.
- SKU: AMG-AH
- Fuse type: AMG / Mega bolt-down (fuse not included)
- Max current: 500A
- Max voltage: 32V DC
- Terminals: M8 stainless steel studs
- Dimensions: 126mm (L) x 37mm (W) x 43.5mm (D)
- Weight: 0.1kg
- Warranty: 3 years
Pairs well with
The Alvolta AMG/Mega fuse range (40A to 250A) and Alvolta M8 busbars and distribution boxes.
Alvolta is Australian-owned and operated, building precision-engineered 12V and 24V DC components made to handle harsh Australian conditions. Available now from Townsville Wholesale Batteries — in stock in Townsville with fast delivery Australia-wide.
