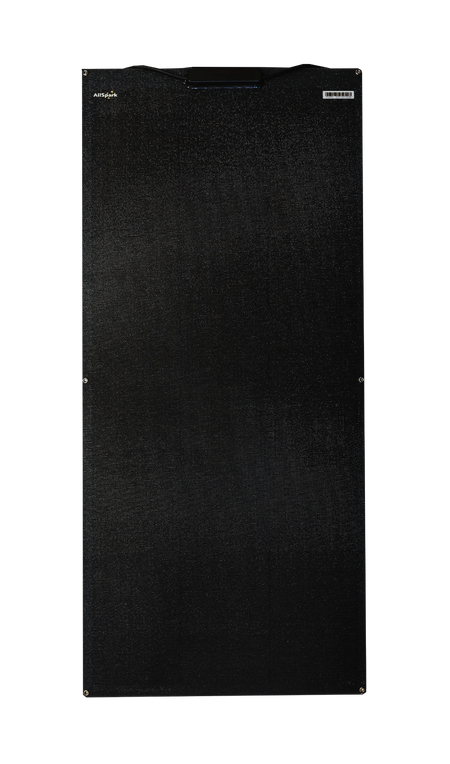

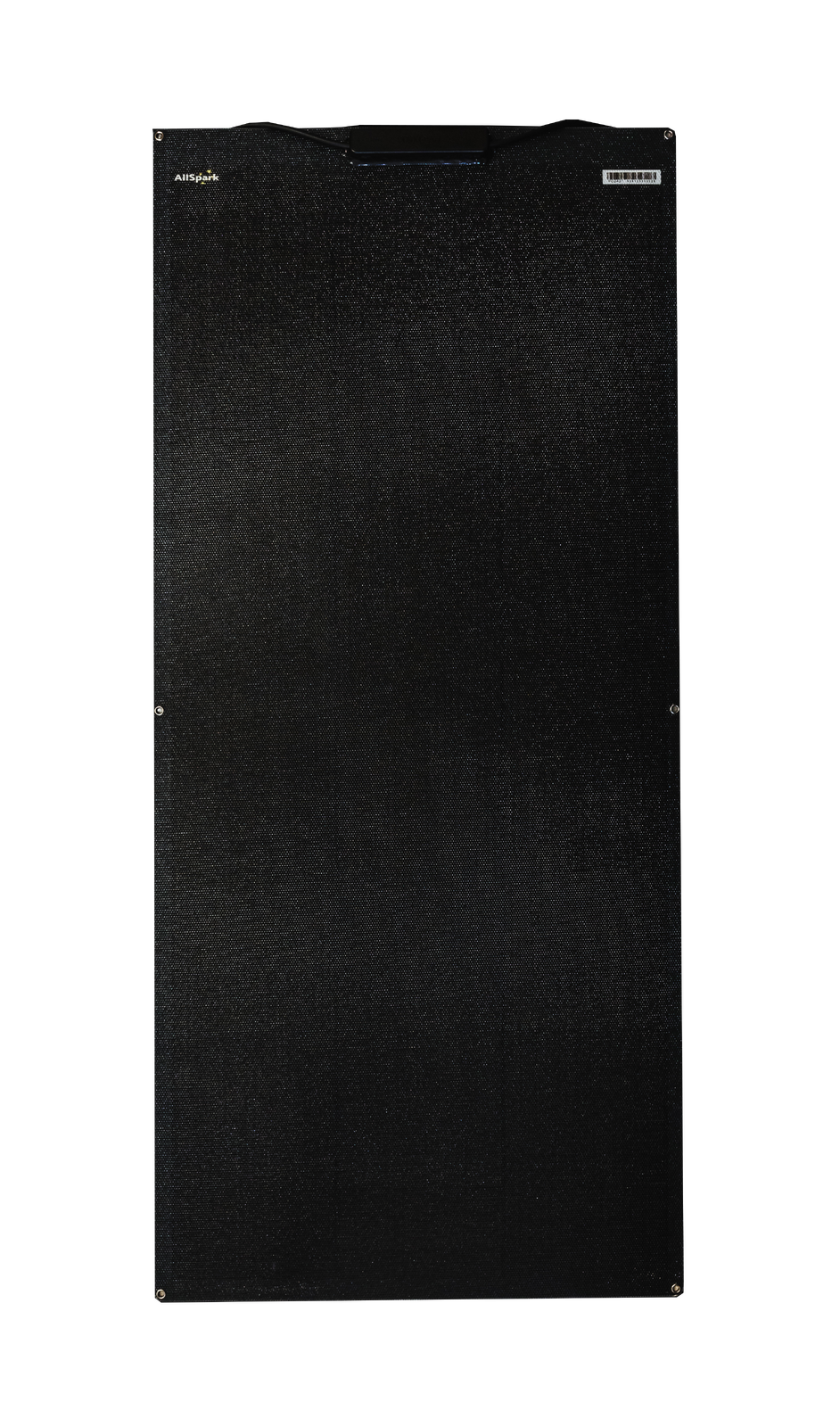

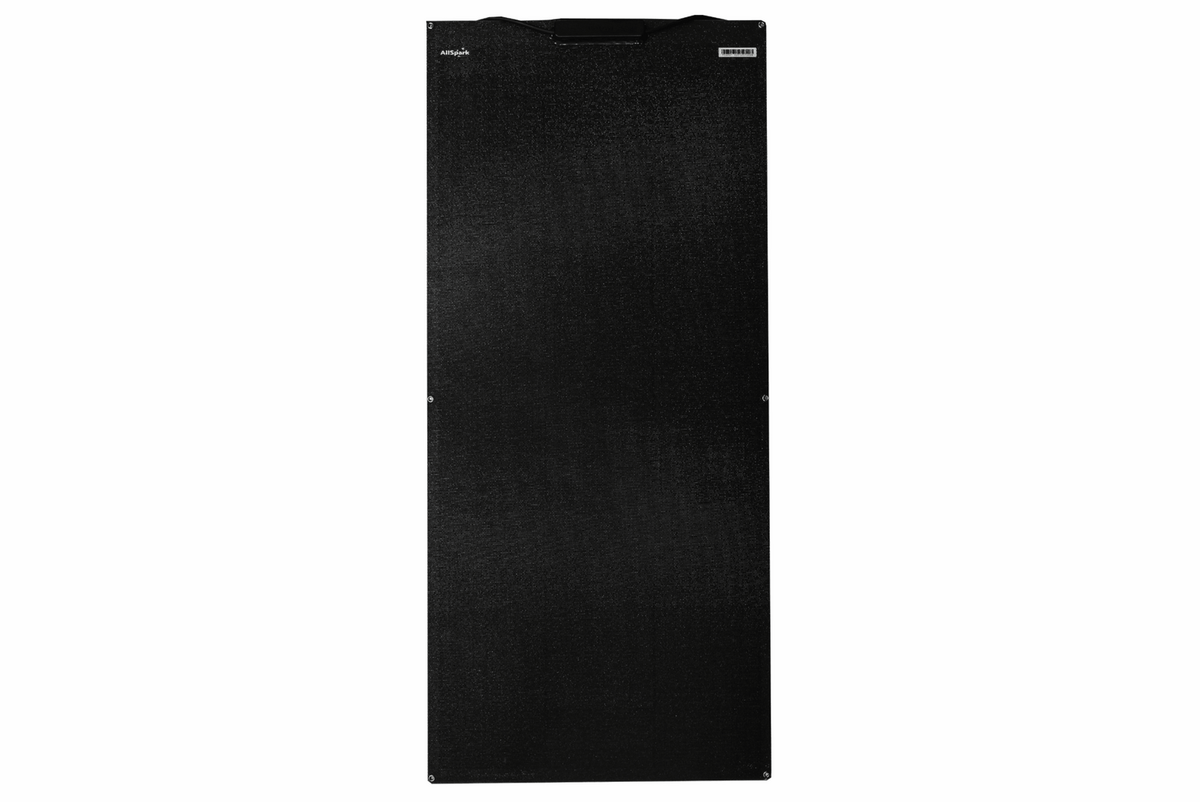

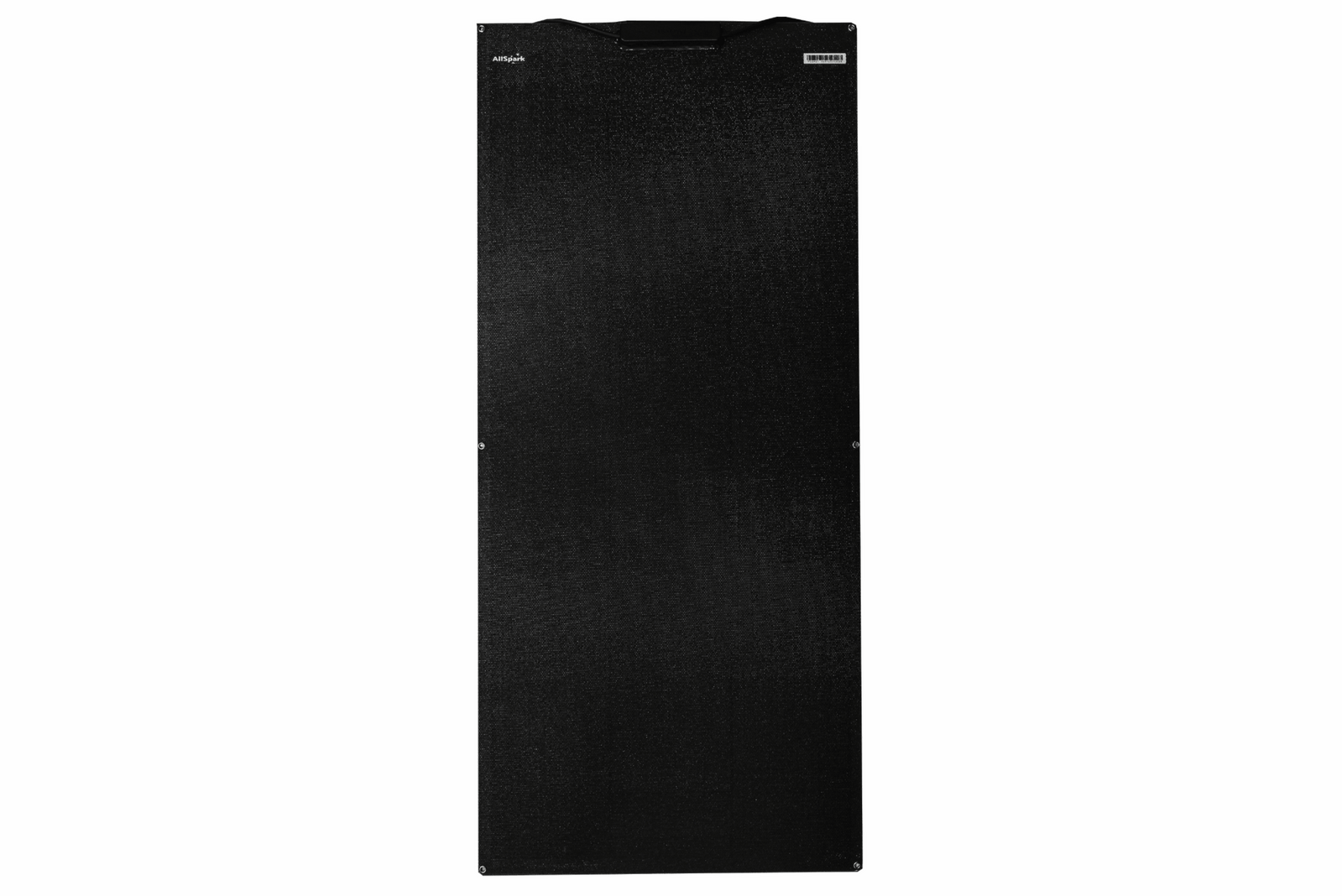

ALLSPARK Light Weight Solar Panel - 120W Corflute backing & 3M VHB Tape (SHINGLE CELLS)
ALLSPARK LIGHT WEIGHT SOLAR PANELS ARE MADE WITH THE LATEST GENERATION SHINGLED CELLS
The Allspark Light Weight Solar Panel range are a high performing, high quality option for those in need of solar power with their impressive features and 5 YEAR MANUFACTURERS WARRANTY, they will provide reliable and long-lasting solar power for years to come.
CELLS
Using A-grade monocrystalline shingle cells with a minimum efficiency of 22.4%, these panels will produce more power for their size compared to other panel brands.
Designed for the Australian market, the AllSpark panels have excellent temperature tolerance, outperforming other panels in high temperature conditions.
CONSTRUCTION
Made using polycarbonate twinwall backing sheet to protect against heat transfer, along with 3M VHB tape, pre-fitted 90cm cables, MC4 connectors and a 10A MC4 fuse for an easy and secure installation.
With a 5 year manufacturers warranty and a 20 year design life, these panels are built to the highest quality to ensure reliability even in the harshest conditions.
WHATS IN THE BOX
- 1 x AllSpark 120W 12V Light Weight Solar Panel
- 90cm cables
- MC4 connectors for easy installation
- 10A MC4 Solar Fuse
WARRANTY
5 year warranty
FEATURES
- Premium quality A grade monocrystalline shingle cells
- Minimum 22.4% efficiency meaning more power for their size compared to other panel brands
- Excellent temperature tolerance outperforming other panels in high temperature conditions
- Made with high quality ETFE optimizing light transmission to the cells
- Fitted with polycarbonate twinwall backing sheet to protect against heat transfer
- Easy installation with pre-fitted 90 cm cables, MC4 connectors and a 10A MC4 fuse
- Service life of 20 years and a 5 YEAR WARRANTY - a testament to their high quality construction
SPECIFICATIONS
PRODUCT SPECIFICATIONS - LIGHT WEIGHT SOLAR PANELS
| SKU | AS-120SPFLPCG3 | AS-150SPFLPCG3 | AS-180SPFLPCG2 |
| Maximum power (Pmax) | 120W | 150W | 180W |
| Open-circuit voltage (Voc) | 24.0 | 23.4 | 26.2 |
| Voltage at Pmax (Vmp) | 20.3 | 19.1 | 22.2 |
| Short-circuit current (Isc) | 6.27 | 8.03 | 8.6 |
| Current at Pmax (Imp) | 5.92 | 7.58 | 8.11 |
| Cells Efficiency (%) | 22.4 | ||
| The maximum system voltage | 600V DC(IEC) | ||
| Power temperature coefficient | -0.38%/oC | ||
| Voltage temperature coefficient | -0.36%/oC | ||
| Current temperature coefficient | 0.07%/oC | ||
| Output power tolerance | ±3% | ||
| Operating Temperature | -40oC~85oC | ||
| Dimensions (LxWxH mm) | 1195 x 540 x 15 | 1130 x 710 x 15 | 1380x680x15 |
| Weight (kg) | 2.95 | 3.7 | 4.35 |
| Output cable | 2 x diodes + 900mm/4mm2 cable + 10A MC4 fuse + MC4 compatible | ||
| Certifications | CE, ROHS | ||
| Warranty | 5 Year Warranty (Service Life 20 Years) | ||
| Open circuit voltage (Voc) | 24.0V |
| Max power voltage (Vmp) | 20.3V |
| Short circuit current (Isc) | 6.27A |
| Max power current (Imp) | 5.92A |
| Max system voltage | 600V |
| Measurments | 1195 x 540 x 15mm |
| Warranty | 5 Yr |
