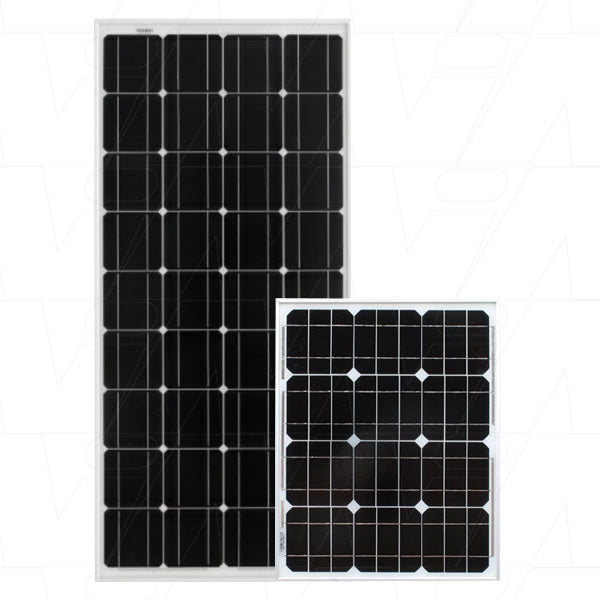

Victron BlueSolar 12V 140W Monocrystalline Solar Panel
Victron BlueSolar 12V 140W Monocrystalline Solar Panel
A compact, lightweight 12V panel that suits smaller roof spaces - camper trailers, small caravans, 4WD canopies, and as a second panel to top up an existing array.
Right-sized for compact installs
At 140W STC with 7.22A maximum power current, this 36-cell monocrystalline panel is sized to deliver meaningful daily charge to a 12V battery bank without needing a large roof footprint. It carries the same -0.45%/°C power temperature coefficient as the rest of the BlueSolar range, so output holds up well through hot days rather than tapering off once the panel warms up.
Same Victron build quality, smaller footprint
Tempered high-transmission glass, triple-layer EVA back sheet encapsulation, and an anodised aluminium frame rated to 200kg/m² surface load and 23m/s hail impact, with bypass diodes built into the junction box to limit losses from partial shading.
Specifications
- Nominal power: 140W (±3% tolerance)
- Max-power voltage (Vmpp): 19.4V
- Max-power current (Impp): 7.22A
- Open-circuit voltage (Voc): 23.6V
- Short-circuit current (Isc): 8.05A
- Cell type: Monocrystalline, 36 cells
- Dimensions: 1250 x 668 x 30mm
- Weight: 9kg
- Maximum system voltage: 1000V
- Warranty: 5 years materials and workmanship; 10 years at 90% power output, 25 years at 80% power output
Best suited to
Smaller caravans and camper trailers, 4WD canopy mounts, boats with limited deck space, and as a secondary panel to supplement an existing solar array.
Pair with: a Victron SmartSolar MPPT 75/10 or BlueSolar PWM 20A controller for a simple, reliable 12V charging setup.
