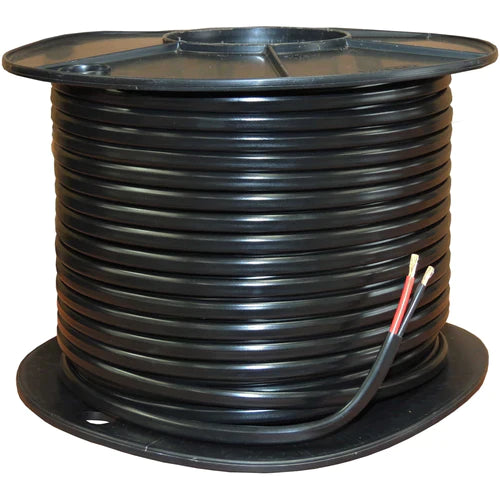

OEX 6mm Twin Core Automotive Cable, Red/Black, With Black Sheath
Regular price
$6.55
inc GST
6mm TWIN CORE AUTOMOTIVE CABLE
Rated to approx 50 Amps over 5mt
Rated to approx 35-40 Amps over 10mt
Rated to approx 35-40 Amps over 10mt
The 6mm twin cable is the most common cable run in vehicles to charge batteries or run fridges, etc. The cable is rated at 50 Amps over a 5mt distance and will reduce to approx 35 Amps over 10mt length.
| Part No. | ACX0811 |
| Type | ELECTRICAL CABLE |
| Brand | OEX |
| Unit of Measure | ROLL |
| Description | OEX 6mm Twin Core Automotive Cable, Red/Black, With Black Sheath - 100m Roll |
| Warranty | One Year |
| Conductor Strand Diameter | .3mm |
| Number of Conductor Strands | 65 |
| Trace Colour | Black |
| Conductor Cross Section | 4.59mm2 |
| Note | Oxygen Free Copper |
| Weight | 12.56kg |
| Length | 100m |
| Cable Size | 6mm |
| Cable Type | Sheathed |
| Gauge | 11 |
| NZ Code | 157 |
| Environmental | UV Stabilized |
| Sheath Colour | Black |
| Cable Colour | Red |
| Temp Rating | V90 (90C) |
| Voltage Rating | Up to 110V |
| Conductor Material | Copper |
| Compliance | AS/NZ 3808:2000 & RoHS |
| Insulation Type | PVC |
| Features | • OEX 6mm Twin Core Automotive Cable • Colour: Red/Black with Black Sheath • Cable diameter: 6mm • Cable Length: 100 metres • Amp rating: 30A at 30°C • Oxygen Free High Conductivity Copper • UV Stabilised and ROHS approved • Temp rating: V90 (90°C) • All Australian premium quality copper • 100% Australian owned and made |
