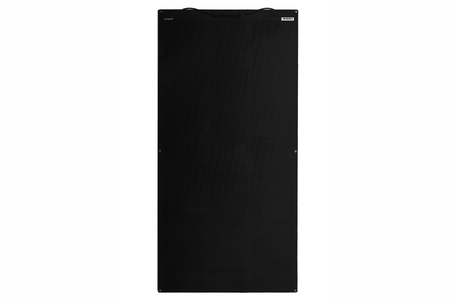

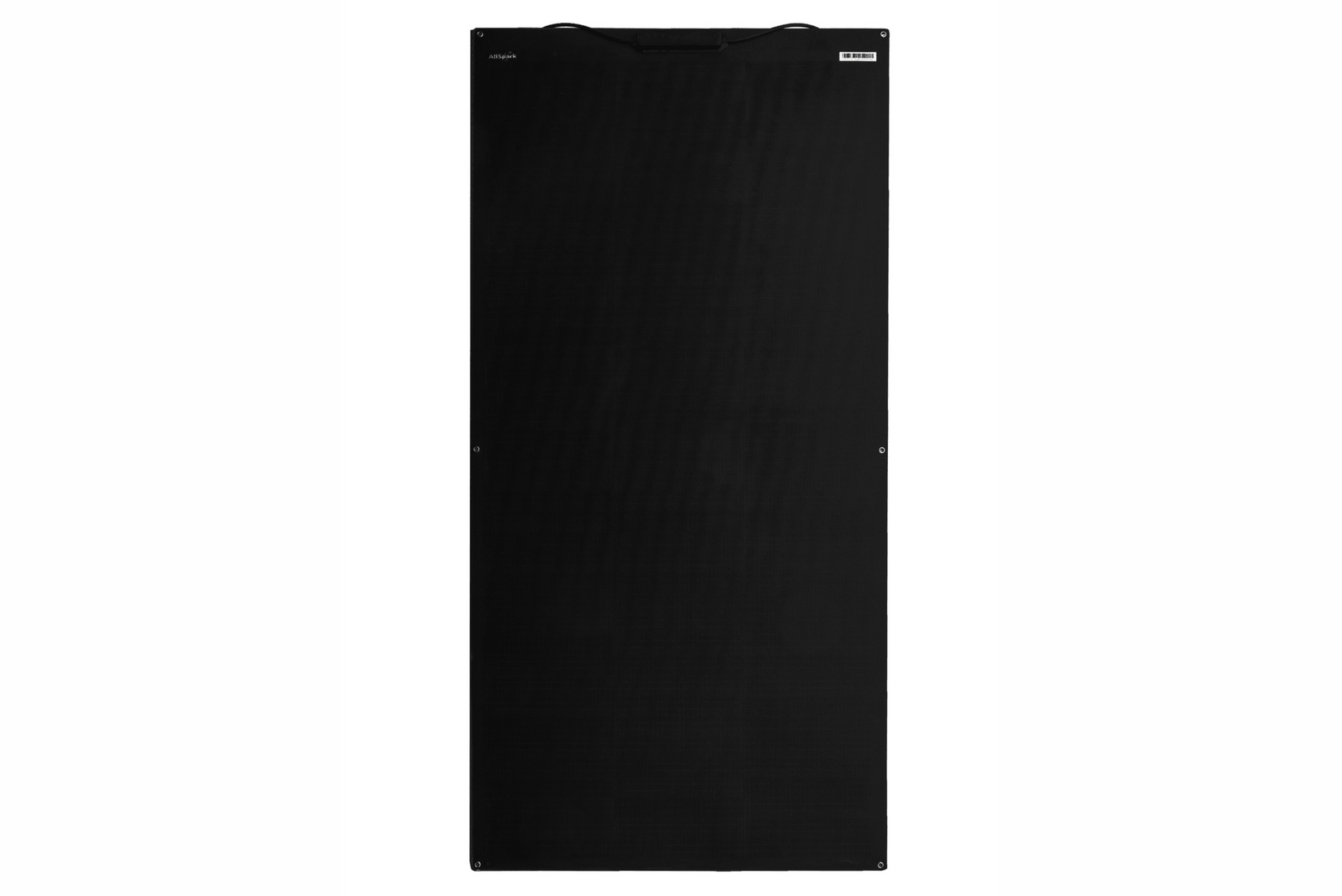

180W Solar Panel Light Weight Corflute Backed & 3M VHB Tape (SHINGLE CELLS)
ALLSPARK LIGHT WEIGHT SOLAR PANELS ARE MADE WITH THE LATEST GENERATION SHINGLED CELLS
The Allspark Light Weight Solar Panel range are a high performing, high quality option for those in need of solar power with their impressive features and 5 YEAR MANUFACTURERS WARRANTY, they will provide reliable and long-lasting solar power for years to come.
CELLS
Using A-grade monocrystalline shingle cells with a minimum efficiency of 22.4%, these panels will produce more power for their size compared to other panel brands.
Designed for the Australian market, the AllSpark panels have excellent temperature tolerance, outperforming other panels in high temperature conditions.
CONSTRUCTION
Made using polycarbonate twinwall backing sheet to protect against heat transfer, along with 3M VHB tape, pre-fitted 90cm cables, MC4 connectors and a 10A MC4 fuse for an easy and secure installation.
With a 5 year manufacturers warranty and a 20 year design life, these panels are built to the highest quality to ensure reliability even in the harshest conditions.
WHATS IN THE BOX
- 1 x AllSpark 180W 12V Light Weight Solar Panel
- 90cm cables
- MC4 connectors for easy installation
- 15A MC4 Solar Fuse
WARRANTY
5 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!
FEATURES
- Premium quality A grade monocrystalline shingle cells
- Minimum 22.4% efficiency meaning more power for their size compared to other panel brands
- Excellent temperature tolerance outperforming other panels in high temperature conditions
- Made with high quality ETFE optimizing light transmission to the cells
- Fitted with polycarbonate twinwall backing sheet to protect against heat transfer
- Easy installation with pre-fitted 90 cm cables, MC4 connectors and a 15A MC4 fuse
- Service life of 20 years and a 5 YEAR WARRANTY - a testament to their high quality construction
SPECIFICATIONS
PRODUCT SPECIFICATIONS - LIGHT WEIGHT SOLAR PANELS
| SKU | AS-120SPFLPCG3 | AS-150SPFLPCG3 | AS-180SPFLPCG2 |
| Maximum power (Pmax) | 120W | 150W | 180W |
| Open-circuit voltage (Voc) | 24.0 | 23.4 | 26.2 |
| Voltage at Pmax (Vmp) | 20.3 | 19.1 | 22.2 |
| Short-circuit current (Isc) | 6.27 | 8.03 | 8.6 |
| Current at Pmax (Imp) | 5.92 | 7.58 | 8.11 |
| Cells Efficiency (%) | 22.4 | ||
| The maximum system voltage | 600V DC (IEC) | ||
| Power temperature coefficient | -0.38%/oC | ||
| Voltage temperature coefficient | -0.36%/oC | ||
| Current temperature coefficient | 0.07%/oC | ||
| Output power tolerance | ±3% | ||
| Operating Temperature | -40oC~85oC | ||
| Dimensions (LxWxH mm) | 1195 x 540 x 15 | 1130 x 710 x 15 | 1380x680x15 |
| Weight (kg) | 2.95 | 3.7 | 4.35 |
| Output cable | 2 x diodes + 900mm/4mm2 cable + 10A MC4 fuse + MC4 compatible | ||
| Certifications | CE, ROHS | ||
| Warranty | 5 Year Warranty (Service Life 20 Years) | ||
FAQ's
Q. Why do the panels have a corflute backing?
A: The decision to add corflute as standard to our light-weight panels was made for two main reasons.
The first reason was due to the reduction in performance experienced by light-weight panels when adhered directly to a surface. Solar cells will de-rate as temperature rises. What this means is, the hotter a cell becomes, the lower the amount of power is produced by the cell. The corflute backing acts as a barrier to direct heat transfer from the surface the panel is adhered to.
The rate at which cells de-rate is determined by the quality of the cell. The cells we use will de-rate at approx. 0.3% per degree of temperature increase over 25C (which is the standard testing condition temperature). Lower quality cells can de-rate as much as 1%/degree of increase. Over time, the high temperatures experienced by cells adhered directly to a surface will result in permanent damage to the cells.
The second reason for the addition of the corflute is for structural integreity. Light weight panels do not have the structural integrity of glass panels, and as such they are prone to mis-handling. Prior to adding the corflute to our light-weight panels, we found that customers installing these panels would inadvertently over-flex the panels during installation, which would create micro-cracking in the cells. This damage would result in the cells under performing.
Q. Is the tape strong enough to not let go at speed?
A: Yes. 3M VHB (Very High Bond) Tape was used to bond 401,202kg (884,500 lbs) of steel panels to the stiffeners on the Walt Disney Concert Hall - it is not coming off. We have personally used this method of installation ourselves on our truck and caravan, and have never had any customer have an issue with panels becoming unstuck.
When adhering to the roof of the vehicle you need to be careful as, if you incorrectly install it, it will not come off - use care when mounting, multiple people/hands
Q: How do I connect multiple panels together?
A: You can connect up to three in parallel (positive to positive, negative to negative, which add together amps, but voltage stays the same) or three in series (positive to negative, which adds together voltages, but amps stay the same).
Q: Do I need any fuse protection?
A: Every panel needs a 15amp inline solar fuse (supplied) installed before it connects to another panel regardless of parallel or series connection.
