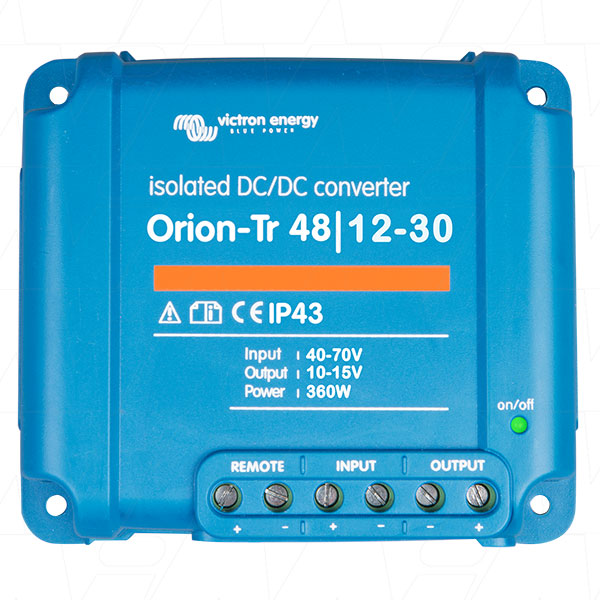

Victron ORI481240110 360W 48/12-30A Orion-Tr Isolated DC-DC Converter

SKU: ORION-Tr 48/12-30A
Regular price $429.00 inc GST

The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product


Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12V and 24V input models only


  • Input voltage range: 40-70V
  • Under voltage shut down: 28V
  • Under voltage restart: 30V
  • Nominal output voltage: 12,2V
  • Output voltage adjust range: 10-15V
  • Output voltage tolerance: +/- 0,2V
  • Output noise: 2mV rms
  • Cont. output current at nominal output voltage and 25°C: 30A
  • Maximum output current (10 s) at nominal output voltage: 40A
  • Short circuit output current: 60A
  • Cont. output power at 25°C: 430W
  • Cont. output power at 40°C: 360W
  • Efficiency: 87%
  • Off load current: < 80mA
  • Galvanic isolation: 200V dc between input, output and case
  • Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
  • Humidity: Max. 95% non-condensing
  • DC connection: Screw terminals
  • Maximum cable cross-section: 16 mm² AWG10
